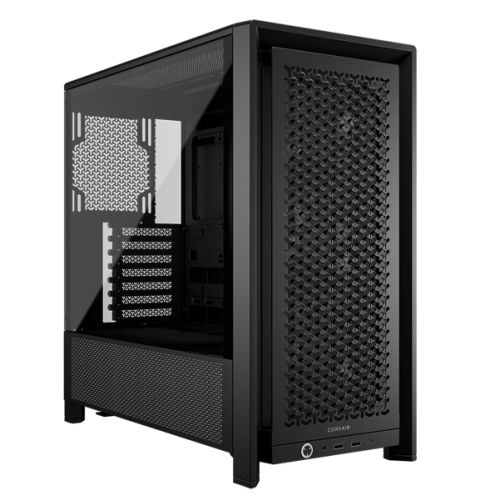

CORSAIR FRAME 4000D RS Modular High Airflow Mid-Tower PC Case, Black – 3x CORSAIR RS Fans – Fully Customizable Design – InfiniRail™ Fan Mounting System – Fits Multiple 360mm Radiators – ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth Compatible

• FRAME Modular Case System - The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
• 3x CORSAIR RS120 Performance PWM Fans – High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads.
• CORSAIR InfiniRail™ Fan Mounting System – This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
• Clean Lines or Turbo Cooled – The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
• 3D Y-Pattern Airflow Panel – Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
• Dual 360mm Radiator Support – Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.
• Designed With Reverse Connection Motherboards in Mind – ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
• Versatile Connectivity – Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
• Drives, Drives, Drives – Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
• Solid GPU Support (Literally) – Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.
• Just a Bit Bigger – The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
• Built for iCUE LINK – Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).

Description

Specification

• Form Factor: E-ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "E-ATX (305mm x 277mm), ATX, Micro ATX, Mini ITX"
• #Hide#Window(s): Yes (Window)
• Connectors / Controls: 1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1 Type-A
  1 x Headphone/Microphone
  Power Button
  Reset Button
• Drive Bays: 4 x 2.5"" SSDs
  2 x 3.5"" HDDs
• Expansion Slots: 7 Horizontal / 4 Vertical
• Cooling System: Included:
  Front: 3 x RS120 PWM Fans with daisy-chainable 4-pin connectors

  Fan Mounts:
  Front: 3 x 120 / 2 x 140 / 2 x 200 mm
  Top: 3 x 120 / 2 x 140 mm
  Side: 3 x 120 / 2 x 140 mm
  PSU Shroud: 2 x 120mm
  Rear: 1 x 120 / 1 x 140 mm
• .:
  Radiator Support:
  Front: Up to 360 mm
  Top: Up to 360 mm
  Side: Up to 360 mm
  PSU Shroud: None
  Rear: Up to 140 mm
• #Hide#Back-Connect MB Support: Yes (Back-Connect)
• Back-Connect MB Support: Yes
• Colour: Black
• Material: "Steel, Tempered Glass"
• Compatibility: GPU Clearance:
  430 mm

  CPU Clearance
  170 mm

  PSU Clearance:
  220 mm
• Weight/Dimensions: 8.2 kg
  (LxWxH) 487 x 239 x 486 mm
• Additional Features: Fully customizable design
  3D Y-Pattern Airflow front panel
  InfiniRail fan mounting system
  GPU Antisag stabilization arm
  Built for iCUE LINK
  Asus BTF compatible
• Accessories: Case Accessory Box
• Package Weight: 8.2000 kg
• Warranty: 2 Years
