Professional Workstation PC for CAD, Adobe & Content Creation

This professional-grade desktop workstation delivers exceptional performance for CAD software, Adobe Creative Suite, and demanding content creation workflows. Built around the Intel Core i9 12900KF processor with 16 cores and 24 threads reaching 5.2GHz boost speeds, this system handles multi-threaded professional applications with ease.

Professional Graphics & Memory Configuration

The NVIDIA T1000 Quadro graphics card with 8GB GDDR6 memory and 896 CUDA cores provides certified driver support for professional CAD and design applications. Paired with 64GB Kingston FURY Beast DDR5 RAM running at 5200MHz, this configuration ensures smooth performance when working with large files, complex 3D models, and multiple applications simultaneously.

High-Speed Storage Solution

The dual-storage configuration combines a 1TB Kingston NV3 NVMe Gen4 SSD delivering read speeds up to 6000MB/s for your operating system and active projects, with a 4TB Seagate BarraCuda HDD providing ample space for project archives and media libraries. The NVMe drive's 320 TBW endurance rating ensures long-term reliability for professional use.

Connectivity & Expansion

The Gigabyte B760 DS3H AX motherboard features Wi-Fi 6E with Bluetooth 5.3, supporting 2.4/5/6 GHz bands and data rates up to 2.4 Gbps. USB 3.2 Gen 2x2 Type-C connectivity provides high-speed peripheral support. Four DDR5 memory slots and multiple PCIe expansion slots allow for future upgrades as your workflow demands grow.

Reliable Professional Build

Housed in the be quiet! Pure Base 501 case with optimized airflow and two pre-installed 140mm Pure Wings 2 PWM fans, the system maintains stable temperatures during extended rendering sessions. The 750W 80 PLUS Gold fully modular power supply from ANTEC provides clean, efficient power with headroom for component upgrades.

Windows 11 Pro & Warranty Coverage

Pre-installed with Windows 11 Pro 64-bit, the system includes professional features like BitLocker encryption, Remote Desktop, and Hyper-V virtualization. Backed by a comprehensive 3-year warranty including first-year parts with collect and return service, plus two additional years of labour coverage for UK mainland customers.

Processor: Intel Core i9 12900KF 3.2GHz 16 Core LGA 1700 Alder Lake Processor, 24 Threads, 5.2GHz Boost

Processor Cores: 16

Processor Threads: 24

Core Clock Speed: 3.20GHz

Core Boost Speed: 5.20GHz

Memory: Kingston FURY Beast KF552C40BBK2-64 64GB System Memory DDR5, 5200MHz, 2 x 32GB, CL40-40-40
Voltage: 1.25V
Latency Timing: CL40
Speed: 5200MT/s (PC5-41600)
2 x 32GB DIMM Memory
Intel XMP Profile Support

Memory Configuration: 2 x 32GB
4 Lanes (2 occupied)

SSD Drive: Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280
Data storage life
320 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format: Gen4 x4 NVMe

Max Read/Write Speeds: Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive: Seagate BarraCuda ST4000DM004 4TB 3.5" 5400RPM 256MB Cache SATA III Internal Hard Drive

Optical Drive: No Optical Drive Fitted

Graphics: PNY NVIDIA Professional T1000 Retail Graphics Card, 8GB GDDR6, 896 CUDA Cores, 2.5 MHz TFLOPS, Single Fan Low Profile
Brand - PNY
Model Number - VCNT10008GB-PB
Interface - PCI Express 3.0
Graphics Card Memory Type - GDDR6
Memory Size - 8GB
Outputs - Mini DisplayPort
Maximum Supported Displays - 4
Maximum Resolution - 5120 x 2880
Colour - Black

Graphics Card I/O: Mini DisplayPort x 4
Comes with Mini DP to Full DP adapters

Operating System: Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader: No Card Reader Fitted

Networking: Realtek GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module
Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Power Supply: ANTEC NeoECO NE750G M 750W PSU, 120mm Silent Fan, 80 PLUS Gold, Fully Modular, UK Plug, Heavy-Duty Japanese Capacitors, Hybrid Zero RPM Fan Mode
1 x MB 24(20+4) Pin
2 x 8 (4+4) Pin EPS 12V
4 x 8 (6+2) Pin PCI-E
8 x SATA
4 x Molex
1 x FDD

Motherboard: Gigabyte B760 DS3H AX Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, GbE LAN, Wi-Fi 6E

Expansion Slot: CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)

Storage: CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O: 1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

Internal I/O: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

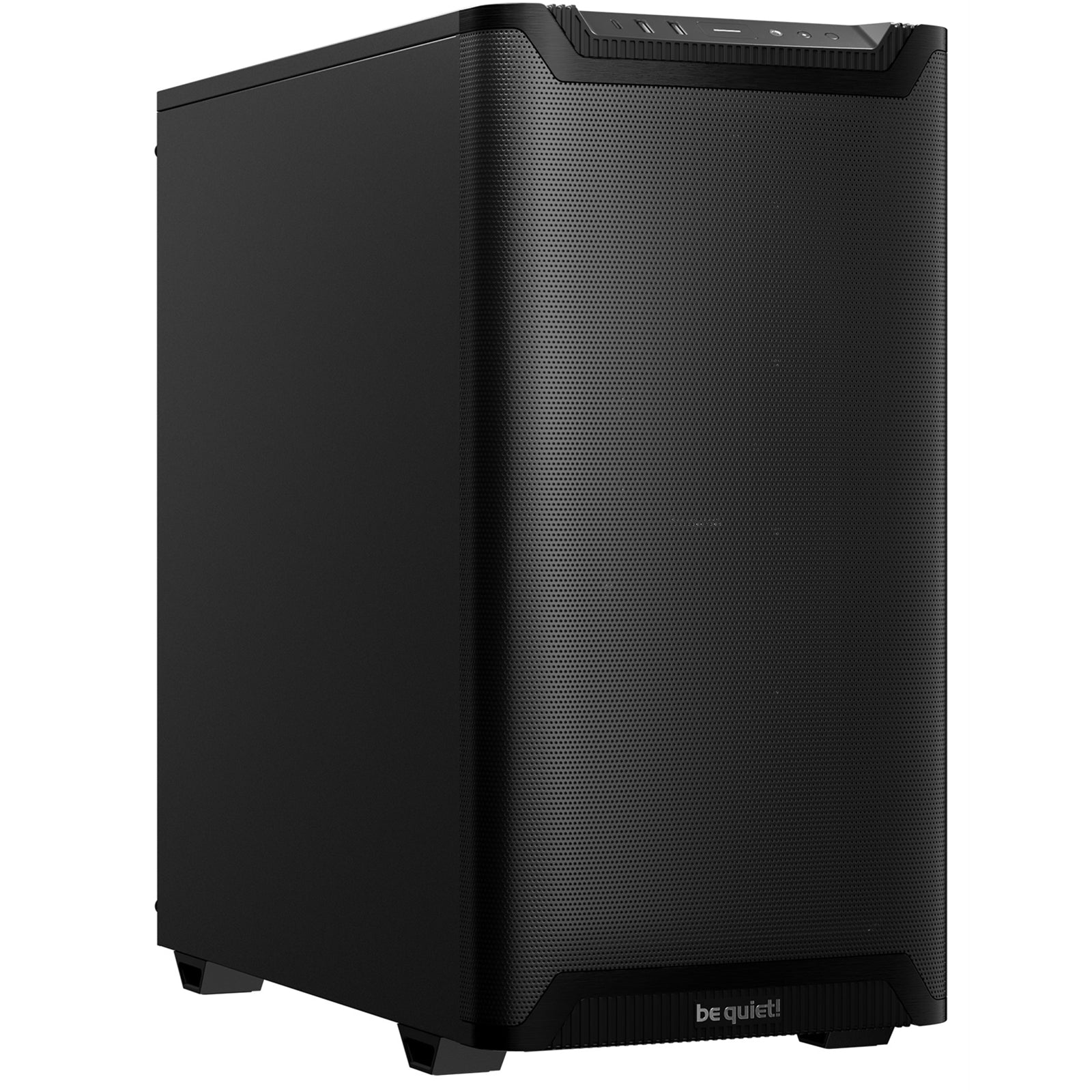

Chassis: be quiet! Pure Base 501 Case, Airflow Black, Mid Tower, 2 x USB Type-A, 1 x USB Type-C, 2 x Pure Wings 2 140mm Black PWM Fans Included, Sleek front panel and airflow

Drive Bays: Two 3.5"
Five 2.5" drives

IO Ports: USB 3.2 Gen. 2 Type C
2 x USB 3.0 Type A
Power
Reset

Cooling: Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm
Rear: 1 x 120mm or 1x 140mm

Dimensions: 463mm x 450mm x 231mm (L x W x H)

Package Weight: 10.4 kg

Warranty: 3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)

• Case Style: ATX Tower Case
• Processor: Intel Core i9
• Processor Cores: 16
• Storage: 1TB + 4TB
• Memory: 64GB
• Graphics: T1000
• Operating Software: Windows 11 Pro
