CyberPower PDU20BHVIEC12R Basic Power Distribution Unit, 1U Vertical/Horizontal Rackmount, 1x IEC C20 Input, 12 Outlets, Overload Protection
- Description
- Shipping & Returns
- Reviews

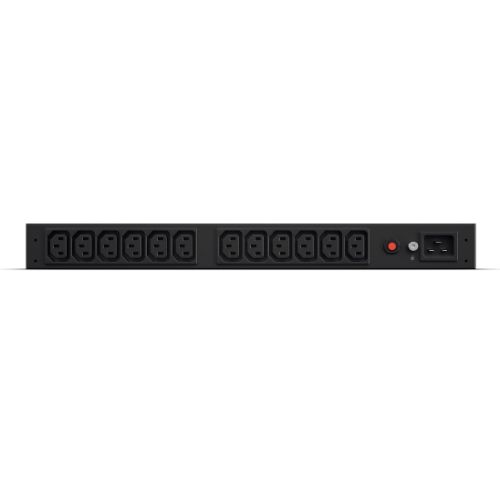

CyberPower PDU20BHVIEC12R Basic Single Phase Power Distribution Unit
- Overload Protection
- Adjustable Mounting Brackets
- Industrial-grade Metal Housing
- Cord Retention Tray
- Type Basic Voltage: 200 ~ 240 Vac
- Rated Current: 16A
- Outlet Type: IEC C13 x 12
- Installed Rack Height: 1U
Description
Specification
- Type: Basic
- Phase: Single Phase
-
Input: Nominal Input Voltage: 200 ~ 240 Vac
Input Frequency: 50 / 60 Hz
Maximum Input Current: 16A
Input Connector Type: IEC C20 x 1 -
Output: Output Voltage (V): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank): 16A
Outlet(s) - Total: 12
Outlet(s) - Rear: 12
Outlet Type: IEC C13 x 12 -
Form Factor: 1U Vertical Rackmount
1U Horizontal Rackmount
Undercounter Installation Supported - Enclosure Construction: Steel
- Cord Retention Tray: Yes
- External Site Ground Pin: Yes
- Adjustable Mounting Brackets: "2 Set (L-short, L-long)"
-
Weight/Dimensions : 0.9 kg
(WxHxD) 445 x 44.5 x 38.1 mm -
Environmental: "Operating Temperature: 32 ~ 95°F
Operating Temperature: 0 ~ 35°C
Operating Relative Humidity (Non-condensing): 0 ~ 95%
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: 5 ~ 113°F
Storage Temperature: -15 ~ 45°C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)" -
Certifications: "CE, UL60950
RoHS" - Additional Features: See Overview
-
Package Contents: PDU20BHVIEC12R
Users Manual
Product Registration Card
Cord Retention Tray
Mounting Brackets
Cable Ties
Screw Kit - Package Weight: 2.3700 kg
- Warranty: 2 Years - direct with CyberPower
