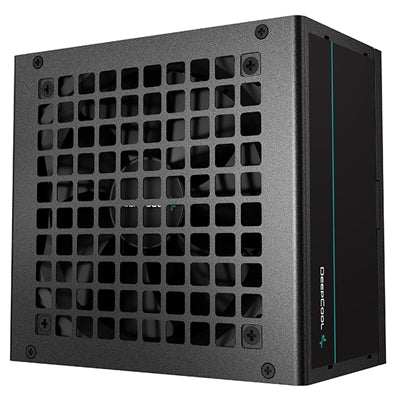

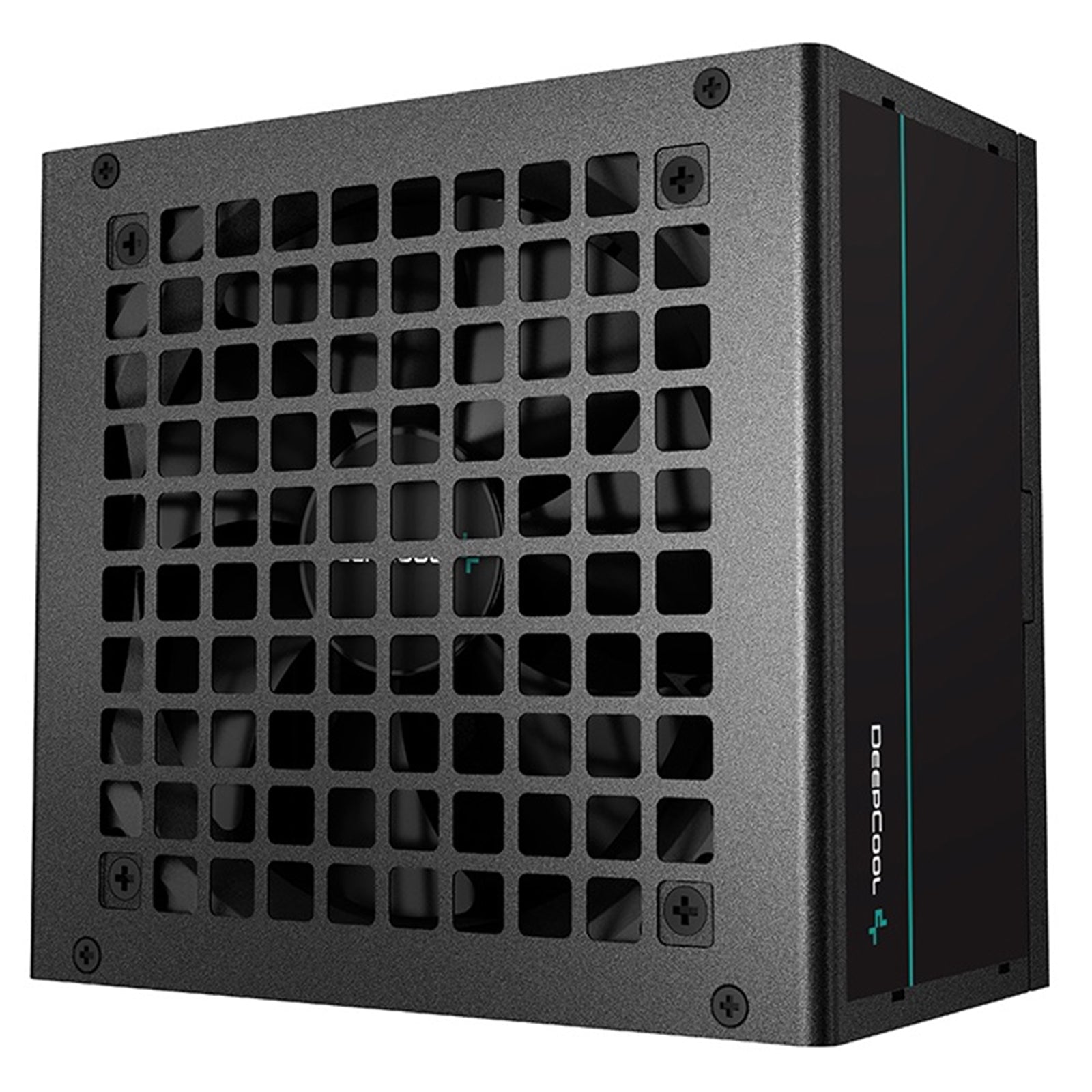

DeepCool 700W Power Supply Unit - Reliable Performance for Your PC Build

The DeepCool 700W Power Supply Unit delivers dependable power for gaming rigs and workstations. This ATX power supply features 80 PLUS Standard certification, achieving 85% efficiency under typical loads to reduce energy waste and lower electricity costs.

Silent Operation with Hydraulic Bearing Technology

Equipped with a 120mm hydraulic bearing fan, this PSU maintains low noise levels during operation. The hydraulic bearing design ensures smooth, quiet performance with an impressive 100,000 hours MTBF rating. The flat black cables simplify cable management while maintaining a clean aesthetic inside your case.

Comprehensive Protection Features

Your system stays protected with multiple safety mechanisms: Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP). These safeguards prevent electrical issues from damaging your components.

Versatile Connectivity Options

The DeepCool 700W provides extensive connectivity for modern builds:

• 1x 20/24-Pin motherboard connector
• 2x 4/8-Pin ATX12V CPU connectors
• 4x 6/8-Pin PCIe connectors for graphics cards
• 6x SATA connectors for drives
• 2x IDE connectors for legacy devices

Technical Specifications

Model: R-PF700D-HA0B-UK
Power Output: 700W
Efficiency: 80 PLUS Standard
Fan Size: 120mm
Fan Bearing: Hydraulic Bearing
Cable Type: Flat Black Cables
Protection: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection
Connections:
1x 20/24-Pin
2x 4/8-Pin ATX12V
4x 6/8-Pin PCIe
6x SATA
2x IDE
Dimensions: 150 x 140 x 86mm (W x L x H)
Weight: 2.5kg
Operating Temperature: 0-40°C
Regulatory Certifications: CB, CCC, CE, UKCA, EAC, RCM, KC
MTBF: 100,000 Hours
Special Features: Silent Operation, Reliable Protection, Efficient Power Delivery

• Wattage: 700W
• Size/Version: ATX
• Modular: No
• SATA Connections: 3
• Certification: White
• Colour: Black
