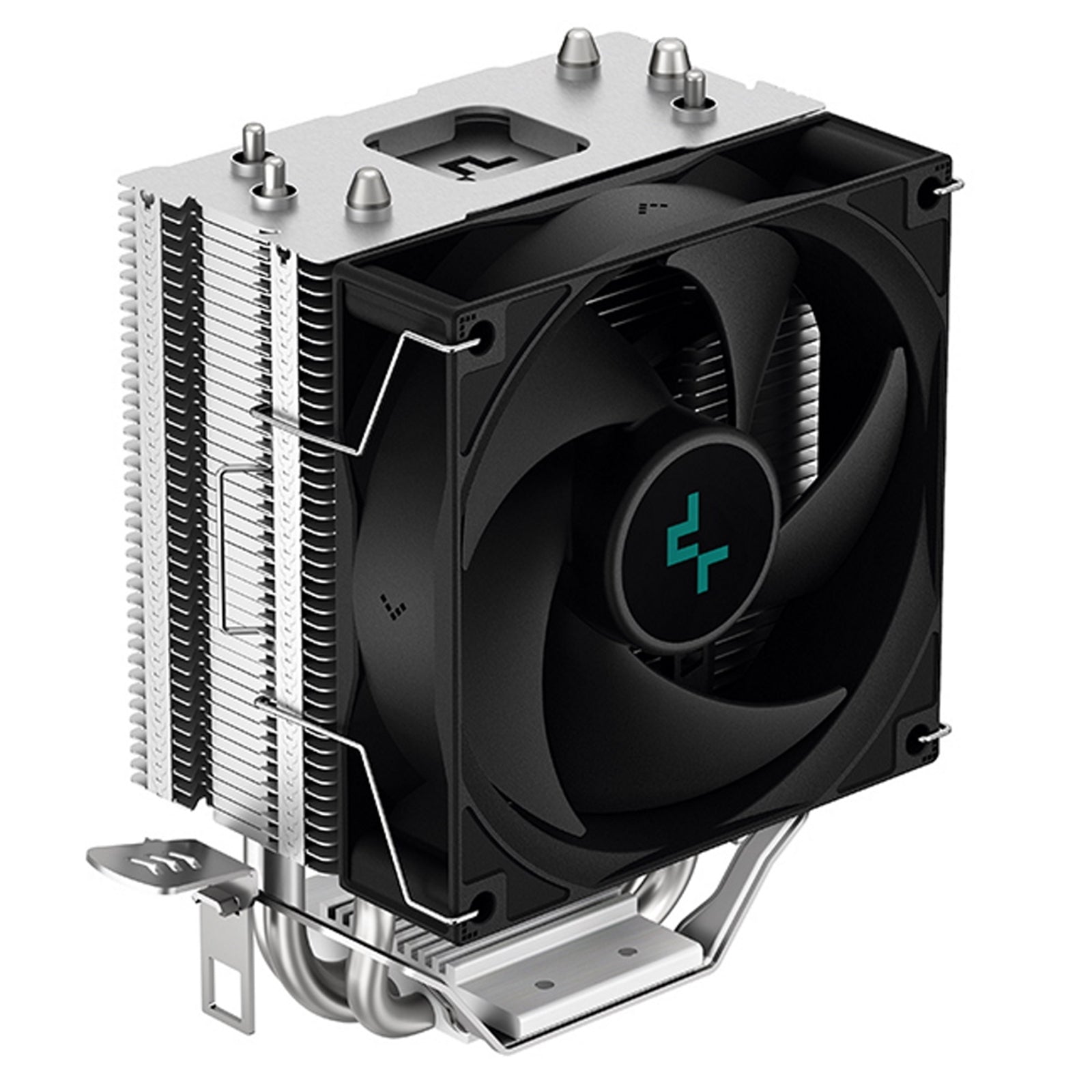

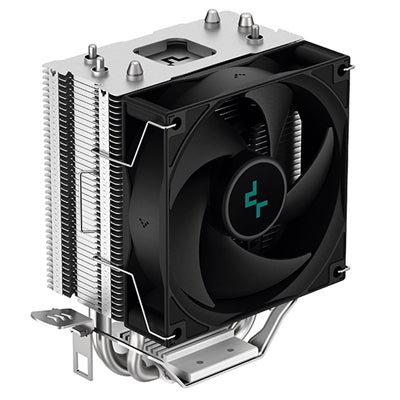

DeepCool AG300 Single-Tower CPU Cooler

The AG300 represents a new generation update from DeepCool's classic GAMMAXX basic coolers, delivering 150W heat dissipation power in a compact single-tower design. This CPU cooler combines efficient thermal performance with universal socket compatibility for modern Intel and AMD processors.

Direct Contact Heat Pipe Technology

Three 6mm copper heat pipes make direct contact with the CPU surface, transferring heat efficiently to the aluminum fin array. The nickel-plated heat pipes provide protection against copper corrosion while maintaining optimal thermal conductivity. This direct contact design eliminates thermal interface resistance for improved heat transfer from processor to heatsink.

92mm PWM Cooling Performance

The included 92mm fan operates on a 4-pin PWM connector with variable speeds from 500 to 3050 RPM. Hydro bearing technology ensures quiet operation at maximum 30.5 dB(A) while delivering 36.75 CFM airflow and 2.89 mmAq air pressure. The PWM control allows your motherboard to automatically adjust fan speed based on CPU temperature, balancing cooling performance with acoustic output.

Matrix Fin Design Construction

The AG300 features a unique matrix fin array that densely packs each aluminum fin for firm construction and improved heat dissipation. The heatsink measures 94 x 57 x 129 mm, providing substantial surface area for heat exchange while maintaining a compact footprint. Total cooler dimensions of 119 x 77 x 129 mm ensure compatibility with most PC cases and RAM clearance.

Universal Socket Compatibility

Compatible with Intel LGA1700, 1200, 1151, 1150, 1155, and 1851 sockets, plus AMD AM5 and AM4 platforms. The included mounting brackets ensure proper contact pressure for seamless installation across multiple socket types. Intel LGA 1700 bracket is included for compatibility with 12th generation and newer processors.

Technical Specifications

Product Dimensions: 119 x 77 x 129 mm
Heatsink Dimensions: 94 x 57 x 129 mm
Net Weight: 350g
Heat Pipes: 6mm x 3 pcs
Fan Dimensions: 92 x 92 x 25 mm
Fan Speed: 500~3050 RPM ± 10%
Fan Airflow: 36.75 CFM
Fan Air Pressure: 2.89 mmAq
Fan Noise: ≤30.5 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.13 A
Fan Power Consumption: 1.56 W

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 3050RPM
• LED Colour: None
