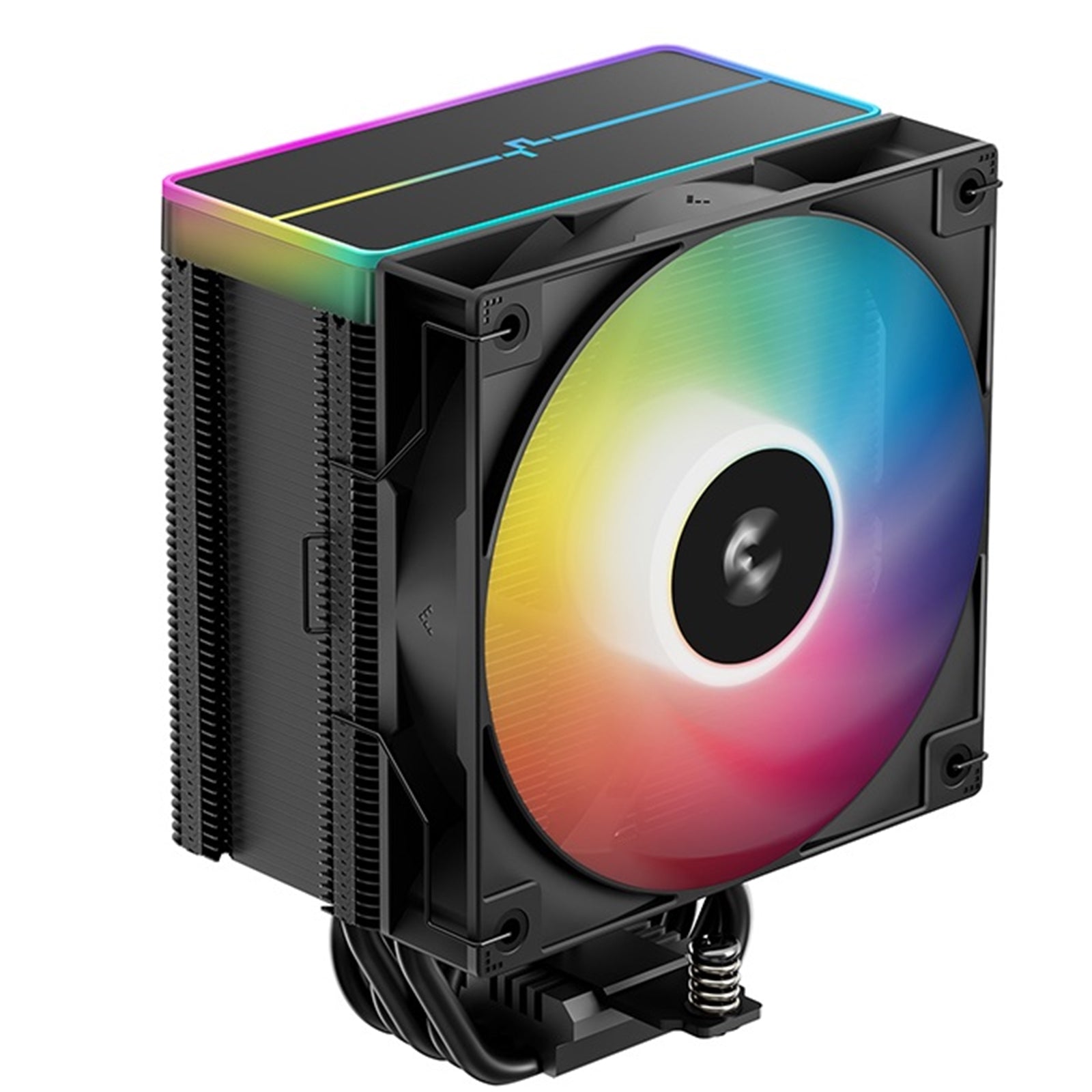

DeepCool AG500 BK ARGB CPU Air Cooler

The DeepCool AG500 BK ARGB is a single-tower CPU air cooler designed for high-performance desktop processors requiring up to 240W TDP cooling capacity. This cooler combines five 6mm copper heatpipes with direct-contact technology and a dense aluminum fin stack to efficiently transfer heat away from your CPU.

Cooling Performance and Design

The AG500 features five direct-contact copper heatpipes that make immediate contact with the CPU for rapid heat absorption. The single-tower heatsink measures 120 × 93 × 150 mm and utilizes an offset heatpipe layout that improves RAM clearance, ensuring full access to all memory slots without interference. This design accommodates high-profile RAM modules while maintaining optimal cooling performance.

120mm PWM Fan with ARGB Lighting

The included 120mm fan operates at 300-1850 RPM with PWM control, delivering up to 67.88 CFM airflow and 2.04 mmAq static pressure. The hydro bearing ensures long-lasting, quiet operation at ≤29.4 dB(A). Addressable RGB lighting adds customizable visual effects to your build, controlled via standard 3-pin (5V-D-G) ARGB headers on compatible motherboards.

Universal Socket Compatibility

The AG500 BK supports a wide range of modern Intel and AMD platforms. Intel compatibility includes LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, and LGA1155 sockets. AMD support covers AM5 and AM4 sockets, making it suitable for current and recent-generation processors from both manufacturers.

Installation and Package Contents

Installation is simplified with tool-free mounting brackets for both Intel and AMD platforms. The package includes the CPU cooler with heatsink, 120mm ARGB PWM fan, mounting hardware for Intel and AMD sockets, pre-applied thermal paste, and a detailed user manual. The black finish complements modern PC builds with neutral aesthetics.

Technical Specifications

Model: R-AG500-BKAMMN-GJD
Color: Black
TDP Rating: 240W
Heatsink Dimensions: 120 × 93 × 150 mm
Heatpipes: 5 × Ø6 mm copper
Fan Speed: 300–1850 RPM ±10%
Airflow: Up to 67.88 CFM
Noise Level: ≤29.4 dB(A)
Bearing Type: Hydro Bearing
Fan Connector: 4-pin PWM
ARGB Connector: 3-pin (5V-D-G)
Intel Sockets: LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
AMD Sockets: AM5, AM4
Warranty: 3 Years

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 1850RPM
• LED Colour: Addressable RGB
