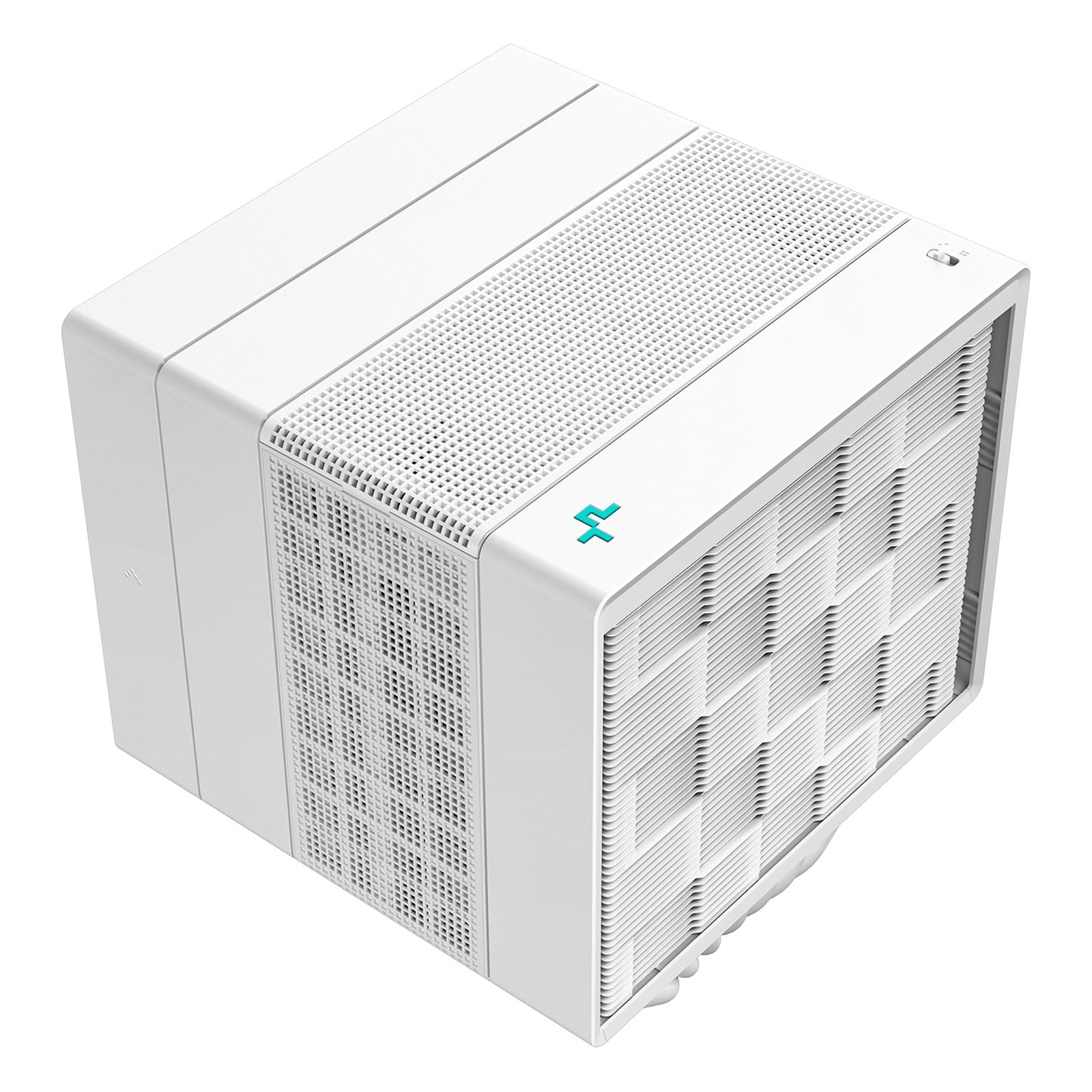

DeepCool ASSASSIN IV White CPU Cooler

The ASSASSIN IV returns with an elegant white aesthetic and efficient cooling capacity. Armed with seven 6mm heat pipes and newly designed 120mm and 140mm FDB fans, this dual-tower cooler delivers exceptional performance for high-end gaming and workstation builds.

Dual Fan Configuration for Maximum Cooling

The ASSASSIN IV WH features a unique dual-fan setup combining 140mm and 120mm Fluid Dynamic Bearing fans. In Performance Mode, the system achieves 79.1 CFM airflow while maintaining just 29.3 dB(A) noise levels. Switch to Quiet Mode for near-silent operation at 22.6 dB(A) while still delivering 63.76 CFM of cooling power. The relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM on most motherboards.

Seven Heat Pipe Design

Seven 6mm heat pipes deliver improved heat transfer through two fin-array heat sink towers, ensuring efficient heat dissipation even under sustained workloads. The dual-tower design maximizes surface area for optimal thermal performance while the included DM9 thermal paste meets rigorous industrial application standards.

Universal Socket Compatibility

Compatible with Intel LGA1700/1200/115X/1851/20XX and AMD AM4/AM5 sockets. Note: Due to motherboard layout differences, the following are not compatible: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, ROG CROSSHAIR X670E GENE, and MSI MEG Z790 ACE.

Silent Three-Phase Motor Technology

Both fans utilize three-phase, six-pole motors with low voltage and power consumption. The 4-pin PWM connectors allow precise fan speed control from 500-1700 RPM, adapting cooling performance to your system's needs. Total power consumption ranges from 3.6W in Quiet Mode to 6W in Performance Mode.

Premium Build Quality

The white design channels air efficiently through the fin towers while maintaining a clean aesthetic for white-themed builds. Weighing 1575g with dimensions of 144 x 147 x 164mm, the ASSASSIN IV WH provides robust cooling without compromising case compatibility. DeepCool backs this cooler with a 6-year limited warranty.

Technical Specifications

Product Dimensions: 144 X 147 X 164 mm (L X W X H)
Heatsink Dimensions: 140 X 110 X 160 mm (L X W X H)
Net Weight: 1575 g
Heatpipe: 6 mm X 7 pcs
Fan Dimensions: 140 X 140 X 25 mm / 120 X 120 X 25 mm
Fan Speed (Performance Mode): 500~1700 RPM±10%
Fan Airflow (Performance Mode): 79.1 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode): 2.44 mmAq / 2.1 mmAq
Overall Noise (Performance Mode): ≤29.3 dB(A)
Fan Speed (Quiet Mode): 500~1350 RPM±10%
Fan Airflow (Quiet Mode): 63.76 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode): 1.58 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode): ≤22.6 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Motor Type: 6-Pole Fan Motor
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.3 A / 0.2 A
Fan Power Consumption: 3.6 W / 2.4 W
Rated Voltage: 12 VDC
Power Consumption (Performance Mode): 6 W
Power Consumption (Quiet Mode): 3.6 W

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 1700RPM
• LED Colour: None
