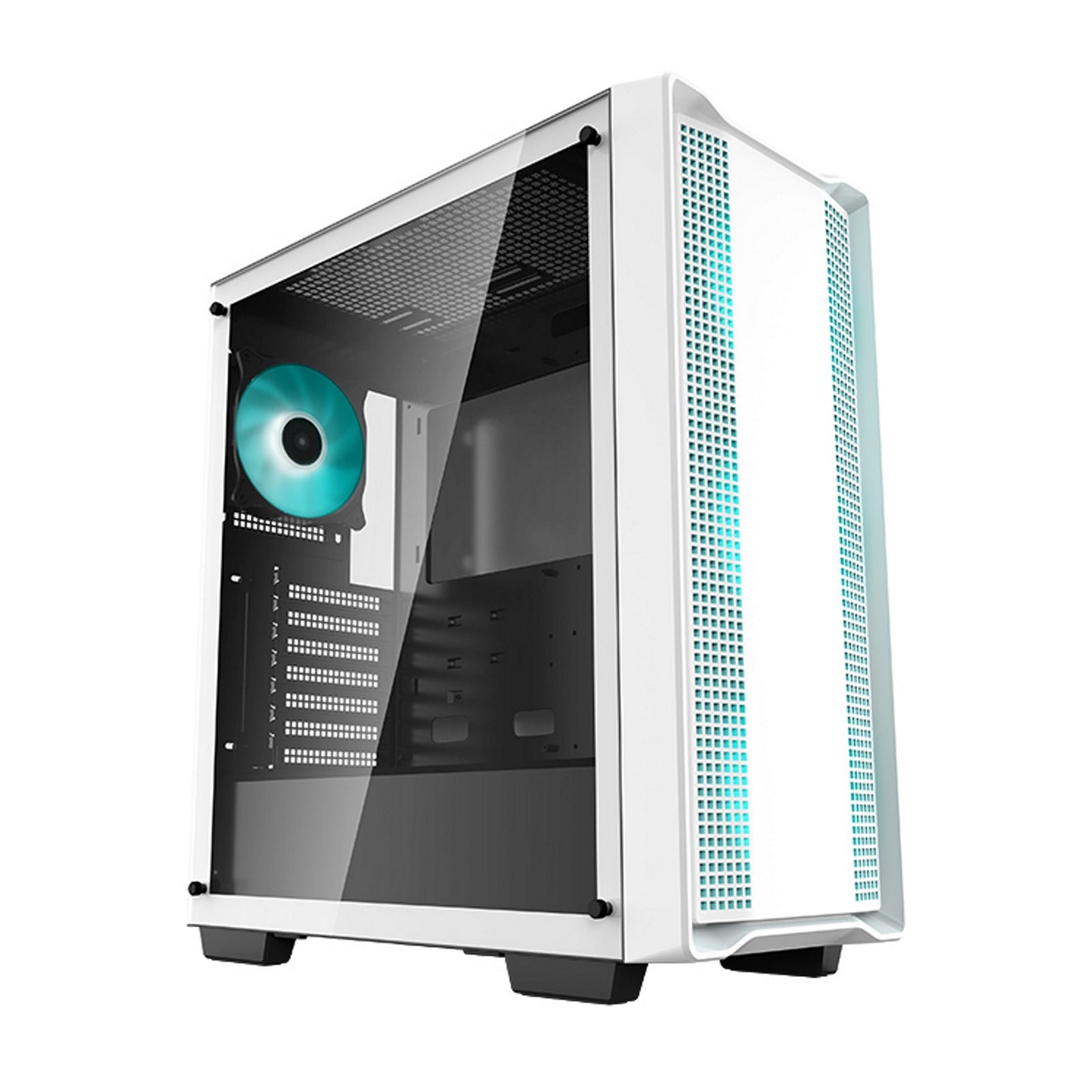

DeepCool CC560 White Mid Tower Gaming Case

The DeepCool CC560 WH delivers exceptional value for PC builders seeking a spacious mid-tower chassis with comprehensive cooling capabilities. This white gaming case combines practical design with visual appeal through its full-sized tempered glass side panel and four pre-installed blue LED fans.

Pre-Installed Cooling System

Four LED fans come factory-installed, eliminating the immediate need for additional cooling purchases. Three 120mm LED fans mounted in the front panel work alongside one 120mm LED fan at the rear to establish effective airflow patterns from day one. The ventilated front panel and large mesh top panel maximize air circulation throughout the chassis.

Extensive Radiator and Fan Support

The CC560 accommodates high-performance AIO liquid cooling solutions with support for up to 360mm radiators in the front position or 240mm radiators on top. Total fan capacity reaches 6x 120mm or 4x 140mm fans across all mounting locations. Front mounting supports 3x 120mm or 2x 140mm fans, top mounting handles 2x 120mm or 2x 140mm, and the rear accepts 1x 120mm.

Component Compatibility

This mid tower case supports ATX, Micro-ATX, and Mini-ITX motherboards with seven expansion slots. Hardware clearances include CPU cooler height up to 163mm, graphics cards up to 370mm in length, and ATX PS2 power supplies up to 170mm. The chassis measures 416mm x 210mm x 477mm, providing ample internal space for modern components.

Storage Configuration

Storage options include capacity for 2x 3.5" HDDs housed in a removable drive cage beneath the PSU shroud, plus 2+1 mounting positions for 2.5" SSDs. Two SSDs mount directly to the backplate for convenient installation and cable management.

Front I/O and Build Features

The front I/O panel provides 1x USB 3.0 port, 1x USB 2.0 port, and a combo audio jack for straightforward connectivity. The full-sized tempered glass window showcases internal components and LED lighting effects. A magnetic dust filter on the top panel simplifies maintenance. Construction utilizes SPCC steel, ABS plastic, and tempered glass materials for durability.

CC560 WH
Mid-Tower Case

The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.

ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC560 WH sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.

WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.

STORAGE SOLUTIONS
Install up to 2x 2.5" SSDs directly on the backplate and 2x 3.5" HDDs underneath the shroud in a removeable drive cage for adjustability.

FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.

Additional Features
- Full-sized tempered glass window
- Top panel magnetic dust filter

Form Factor
Mid Tower

Motherboard
ATX
Micro ATX
Mini-ITX

Colour
White

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2+1

Power Supply Support
ATX PS2 (maximum length: 170mm)

I/O Panel
1 x USB 3.0
1 x USB 2.0
1 x Audio

Expansion
Slots: 7

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm (3 x 120mm LED fan installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm LED fan installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280 / 360
Top: 120 / 240
Rear: 120

Clearances
CPU Cooler Height Limit: 163mm
VGA Length Limit: 370mm
PSU Length Limit: 170mm

Product Dimensions ( L x W x H )
416mm x 210mm x 477mm

Weight
Net: 5.25KG

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: White
• LED Colour: Blue
• USB 3.0: 1
• Side Panel: Tempered Glass
