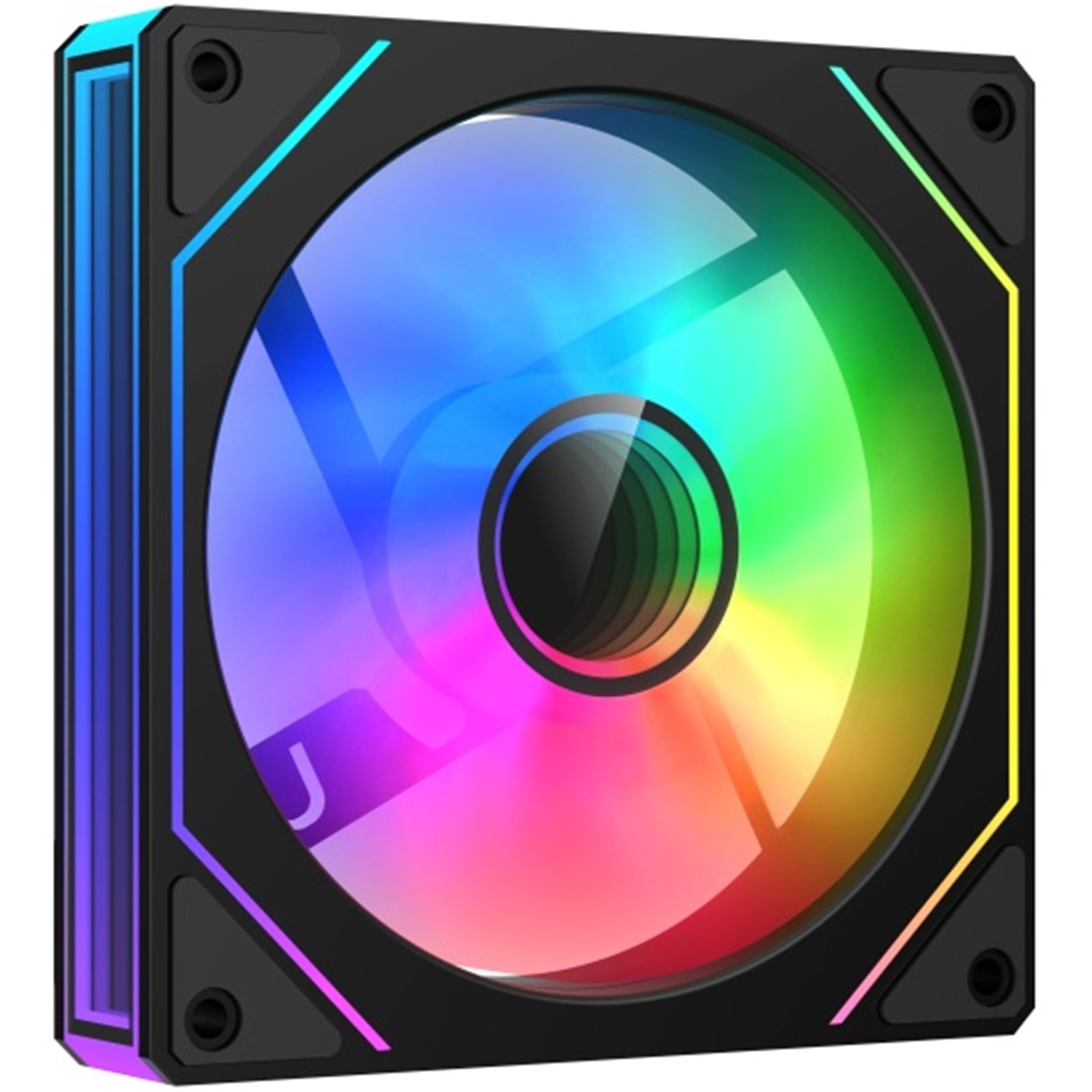

DeepCool CG530 120mm ARGB Case Fan

The DeepCool CG530 is a 120mm case fan engineered for reliable cooling performance and customizable RGB lighting. This fan combines efficient airflow delivery with addressable RGB functionality, making it suitable for both case ventilation and radiator mounting applications.

Cooling Performance

Operating at speeds between 500-1800 RPM, the CG530 delivers up to 61.91 CFM airflow with static pressure reaching 1.83 mmH2O. The high-efficiency blade design, constructed from polycarbonate material, ensures consistent air movement for effective heat dissipation. The PBT frame construction provides durability while maintaining structural integrity during operation.

Hydro Bearing System

The fan utilizes a hydro bearing mechanism that reduces friction and extends operational lifespan. Combined with rubber vibration-dampening pads positioned at all four mounting corners, the CG530 maintains noise levels at or below 28 dB(A), even at maximum speed. This bearing system ensures smooth, quiet operation suitable for noise-sensitive environments.

PWM Speed Control

Equipped with a 4-pin PWM connector, the fan automatically adjusts speed based on system temperature requirements. This intelligent control allows the fan to operate quietly during low-demand periods while ramping up cooling capacity when needed. The 12V DC fan operates at 0.13A with power consumption of 1.56W.

Addressable RGB Lighting

The integrated addressable RGB LEDs connect via a standard 3-pin ARGB header (5V) and are compatible with motherboard RGB control software. The LED system operates at 5V DC, drawing 0.21A with 1.05W power consumption. Daisy-chain capability simplifies cable management when using multiple fans, allowing streamlined routing throughout your build.

Technical Specifications

Dimensions: 120 x 120 x 25 mm
Fan Speed: 500-1800 RPM ±10%
Airflow: Up to 61.91 CFM
Static Pressure: Up to 1.83 mmH2O
Noise Level: ≤28 dB(A)
Bearing Type: Hydro Bearing
Fan Connector: 4-pin PWM
LED Connector: 3-pin ARGB (5V)
Frame Material: PBT
Blade Material: Polycarbonate

Package Contents

Each CG530 includes mounting screws and a user guide for straightforward installation. The fan is backed by a 2-year warranty.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1800RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
