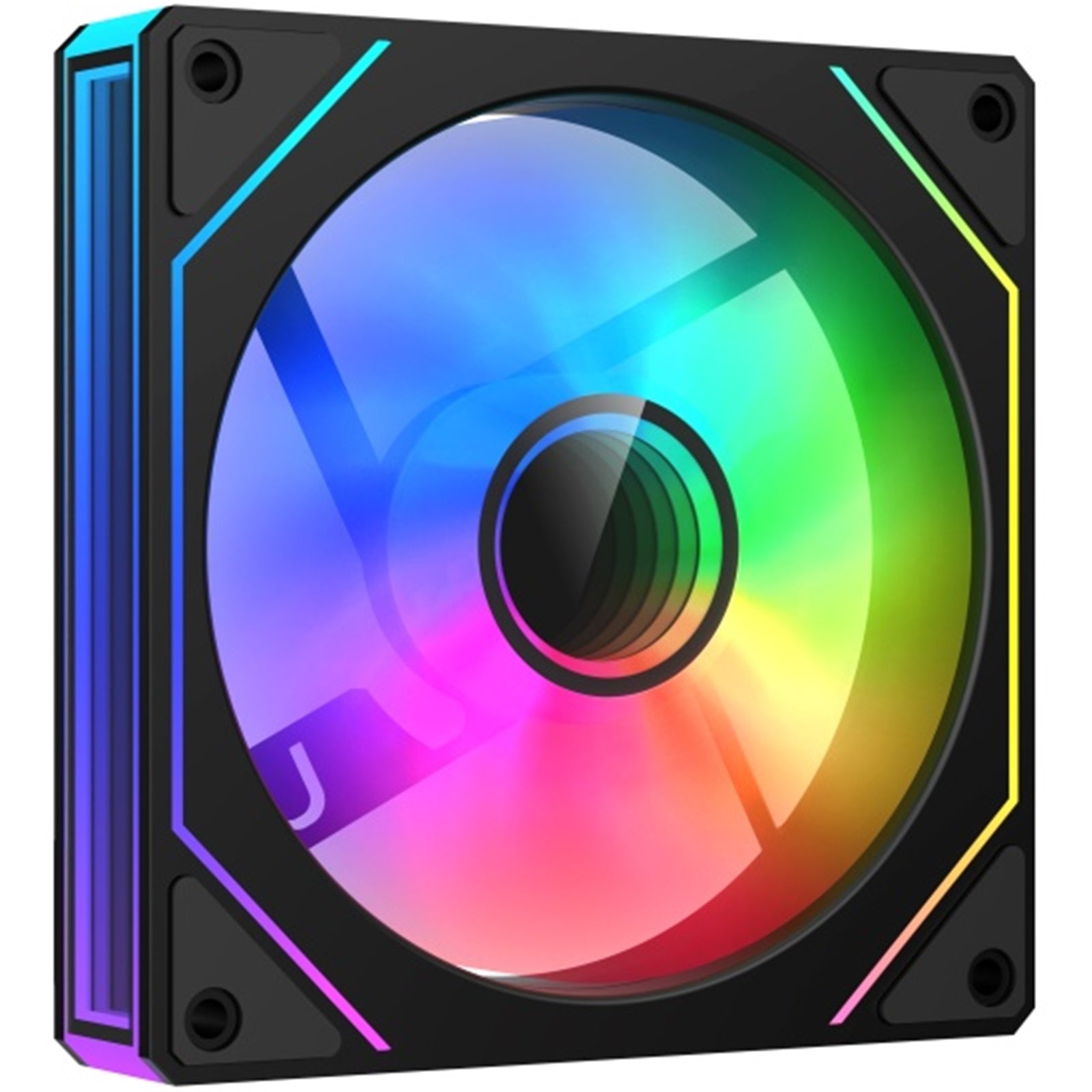

DeepCool CG530 120mm ARGB PWM Case Fan

The DeepCool CG530 is a 120mm case fan engineered for efficient cooling performance and quiet operation. This fan combines a 9-blade design with hydro bearing technology to deliver reliable airflow while maintaining minimal noise levels in your PC build.

Cooling Performance

With a maximum speed of 1800 RPM, the CG530 delivers up to 61.91 CFM airflow and 1.83 mmH2O static pressure. The 9-blade configuration ensures optimal air movement through your case, effectively cooling components while operating at or below 28 dB(A). PWM control allows the fan speed to adjust dynamically between 500-1800 RPM based on system temperature requirements.

Hydro Bearing Technology

The hydro bearing system provides extended lifespan and quieter operation compared to standard sleeve bearings. This bearing type reduces friction and wear, ensuring consistent performance over time. Anti-vibration rubber pads at each corner further minimize operational noise and prevent vibration transfer to the case.

ARGB Lighting

The integrated ARGB lighting system features a 3-pin connector compatible with standard RGB controllers. Operating at 5 VDC with 0.21A current draw and 1.05W power consumption, the lighting adds visual customization to your build without significant power requirements. The fan connector uses a standard 4-pin PWM interface running at 12 VDC.

Construction and Materials

The frame is constructed from PBT (Polybutylene Terephthalate) for durability and heat resistance, while the blades are made from polycarbonate to balance strength and weight. At approximately 150g and measuring 120 × 120 × 25 mm, the fan fits standard 120mm mounting points in PC cases.

Technical Specifications

Model: R-EDF120-BKAPR17-G-1
Size: 120 × 120 × 25 mm
Speed Range: 500–1800 RPM ±10%
Airflow: Up to 61.91 CFM
Static Pressure: Up to 1.83 mmH2O
Noise Level: ≤28 dB(A)
Bearing Type: Hydro Bearing
Fan Voltage/Current: 12 VDC, 0.13 A
LED Voltage/Current: 5 VDC, 0.21 A
Connectors: 4-pin PWM, 3-pin ARGB
Warranty: 2 Years

Package Contents

The package includes one 120mm ARGB PWM case fan, mounting screws, and a user manual. The fan is backed by a 2-year warranty.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1800RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
