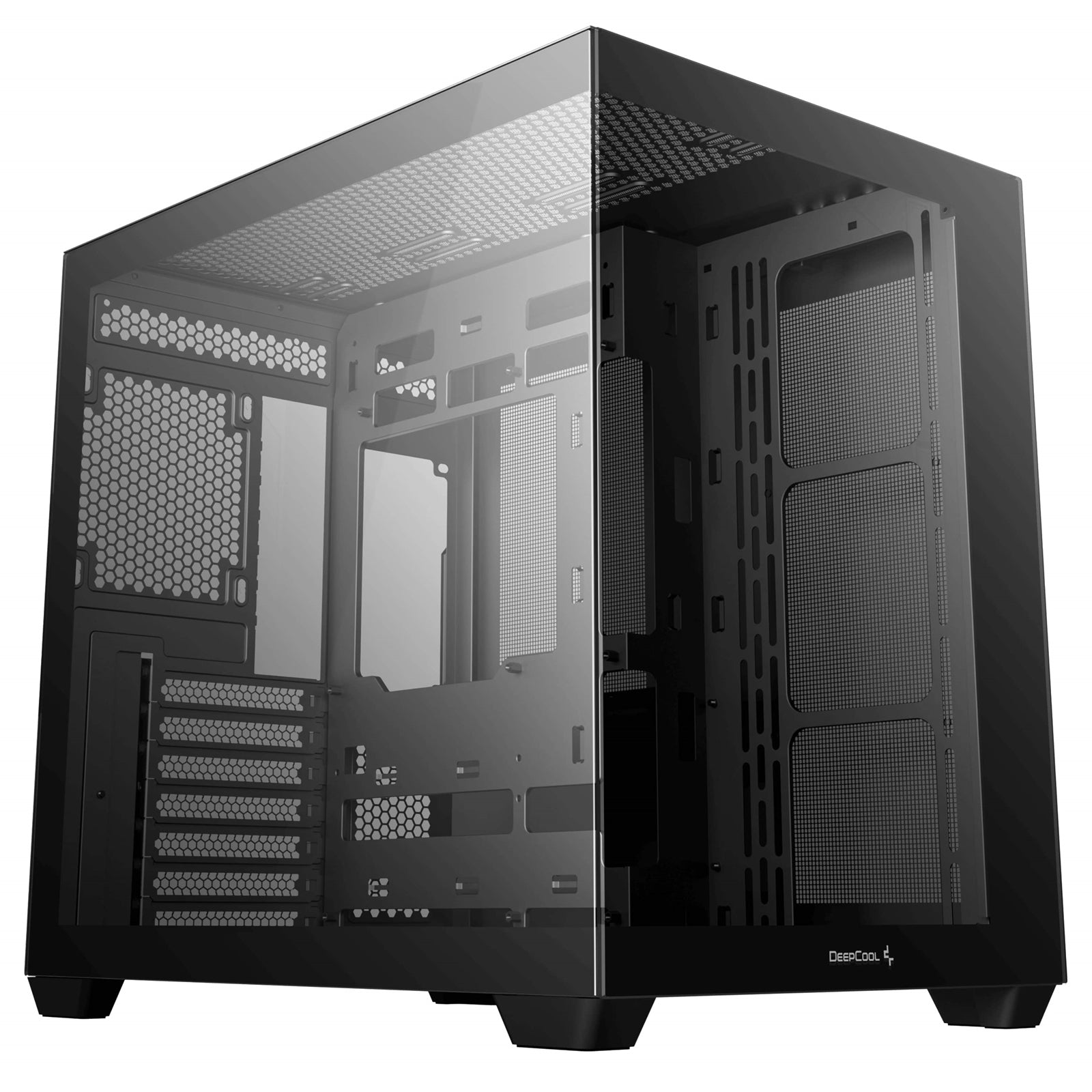

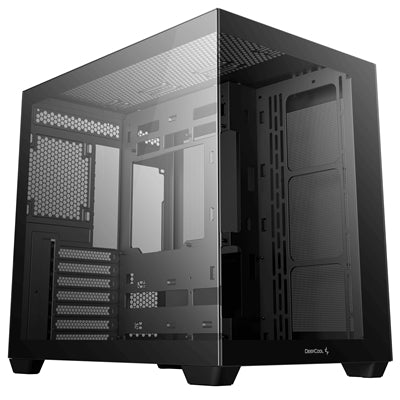

DeepCool CG530 Dual-Chamber Mid Tower Case

The DeepCool CG530 delivers a pillarless showcase design with seamless tempered glass side and front panels, providing unobstructed views of your components. This mid tower case combines advanced dual-chamber architecture with exceptional cooling capabilities for high-performance builds.

Dual-Chamber Architecture

The sophisticated dual-chamber layout separates the PSU and hard drives into dedicated air channels, ensuring optimal airflow and thermal performance. This wide case structure supports rear connector motherboards, keeping the internal layout clean and organized. The design accommodates ATX, Micro-ATX, and ITX motherboards with 7 expansion slots for multiple GPUs and peripherals.

Maximum Component Compatibility

Install high-end components without compromise. The CG530 supports GPUs up to 410mm in length, CPU coolers up to 160mm in height, and PSUs up to 210mm. Storage flexibility includes 2 x 3.5" drive bays and 3 x 2.5" drive bays, allowing multiple storage configurations for optimal capacity.

Extensive Cooling Support

The CG530 accommodates comprehensive cooling solutions with multiple fan and radiator mounting positions. Top mounting supports 3x120mm or 2x140mm fans with radiators up to 360mm. Side mounting fits 3x120mm or 2x140mm fans with radiators up to 280mm. Bottom mounting handles 3x120mm fans with radiators up to 360mm. The rear supports 1x120mm fan for exhaust.

Cable Management & Maintenance

The backplane provides 45mm of wiring space for straightforward cable management, enhancing airflow and simplifying maintenance. Magnetic air filters on the top and bottom panels enable easy cleaning and robust dust prevention, keeping components protected.

Connectivity & I/O

Front panel I/O includes 2x USB 3.0 ports, 1x USB 2.0 port, and a 2-in-1 audio port for seamless connectivity. The tempered glass construction combined with ABS and SPCC materials delivers durability in a 440x285x399mm footprint weighing 6.4kg.

Technical Specifications

Dimensions: 440x285x399mm (LxWxH)
Net Weight: 6.4 Kg
Materials: ABS, SPCC, Tempered Glass
Motherboard Support: ITX/Micro-ATX/ATX
Expansion Slots: 7 Slots
Drive Bays: 2x 3.5" + 3x 2.5"
CPU Cooler Height: 160mm
GPU Length: 410mm
PSU Length: 210mm
EAN: 6933412765134
P/N: R-CG530-BKNDA0-G-1

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
