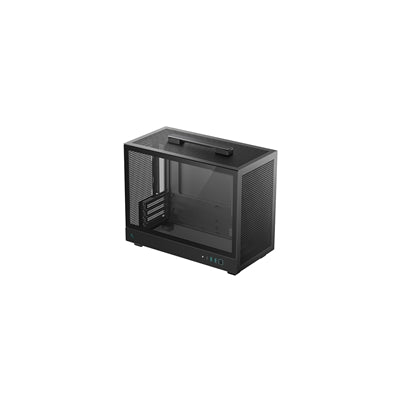

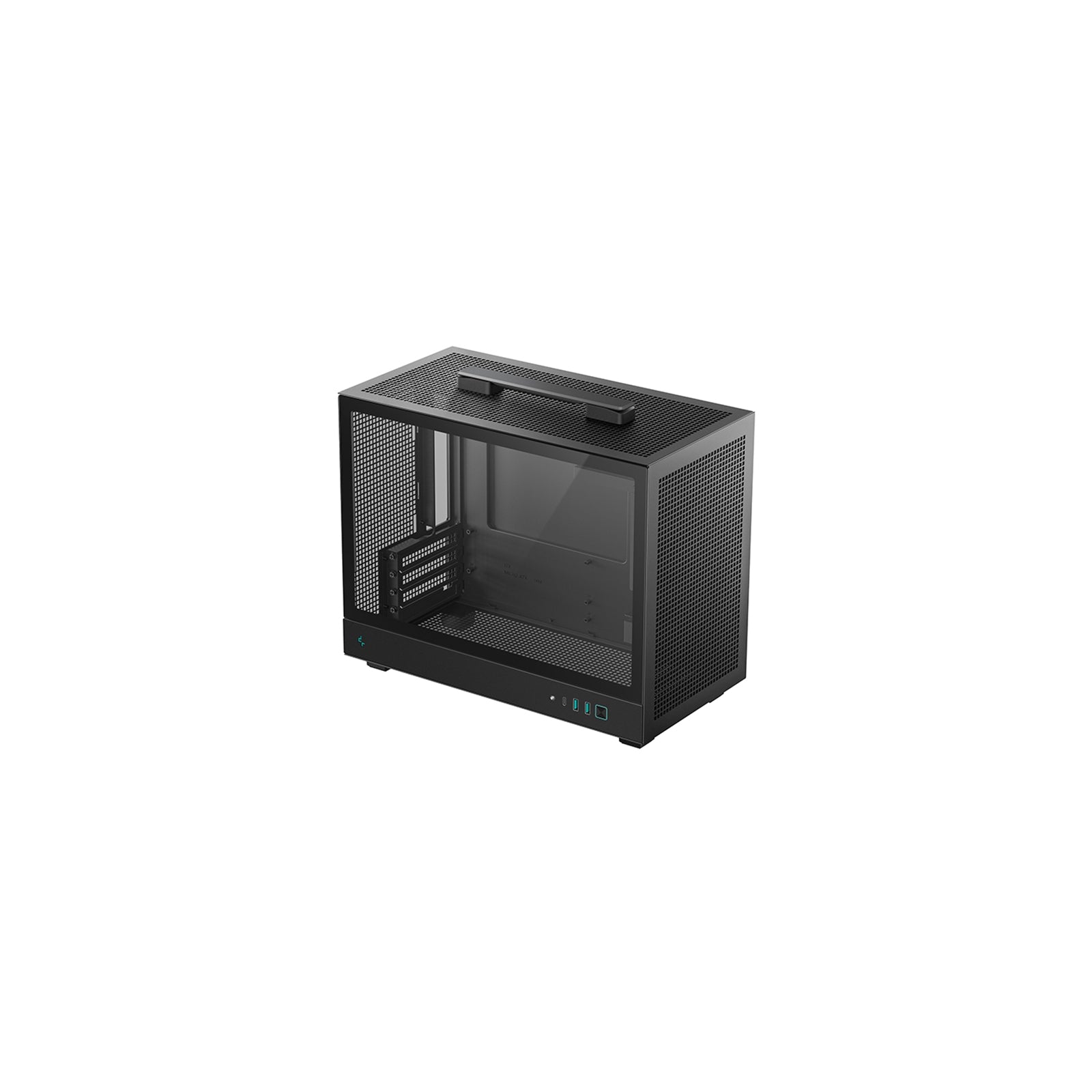

DeepCool CH160 PLUS Micro-ATX Mini Tower Case

The CH160 PLUS combines compact dimensions with expanded compatibility, supporting both Mini-ITX and Micro-ATX motherboards in a portable mesh design. This case measures 375mm x 195mm x 323.5mm and weighs 4.2kg, featuring an integrated top handle for easy transport.

Mesh Airflow Design

Mesh panels wrap around the CH160 PLUS to maximize airflow while maintaining a compact footprint. The breathable design keeps components cool without sacrificing the case's small form factor, making it suitable for size-conscious builds that demand proper ventilation.

240mm Liquid Cooling Support

The CH160 PLUS adds liquid cooling capability with support for up to a 240mm radiator on top. Radiator mounting options include 120/240mm top-mounted configurations and a single 120mm rear position. Fan support includes 1x120mm or 1x140mm front (with SFX PSU), 2x120mm top, and 1x120mm rear. CPU cooler clearance reaches 164mm.

Expanded Hardware Compatibility

Despite minimal size increase, the CH160 PLUS accommodates Micro-ATX motherboards alongside Mini-ITX. GPU clearance extends to 342mm (328mm with front fan installed), while full-sized ATX PSUs up to 140mm fit comfortably. Four expansion slots provide flexibility for multi-GPU configurations or additional expansion cards.

Front I/O and Storage

Front panel connectivity includes 2x USB 3.0 ports, 1x Gen2 Type-C port, and 1x hybrid audio/mic jack for modern peripheral support. Storage options consist of 1x 3.5" drive bay and 2x 2.5" drive bays for flexible configuration.

Construction and Maintenance

Built from ABS, SPCC steel, and tempered glass, the CH160 PLUS features a side panel window for build visibility. Dust filters on three sides simplify maintenance and protect internal components. The case ships without pre-installed fans, allowing custom cooling configurations.

Technical Specifications

Deepcool CH160 PLUS

Product Dimensions - 375mm x 195mm x 323.5mm (L x W x H)
Net Weight - 4.2Kg
Materials - ABS + SPCC + Tempered Glass
Motherboard Support - Mini-ITX / Micro-ATX
Front I/O Ports - USB3.0 x2, Gen2 Type-C x1, Audio/Mic x1
3.5" Drive Bays - 1
2.5" Drive Bays - 1+1
Expansion Slots - 4 Slots
Pre-Installed Fans - None

Radiator Support:
Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm

Fan Support:
Front: 1x120mm / 1x140mm (with SFX PSU)
Top: 2x120mm
Rear: 1x120mm
CPU Cooler: 164mm

• Form Factor: Mini-ITX
• Motherboard Support: Micro ATX / Mini-ITX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
