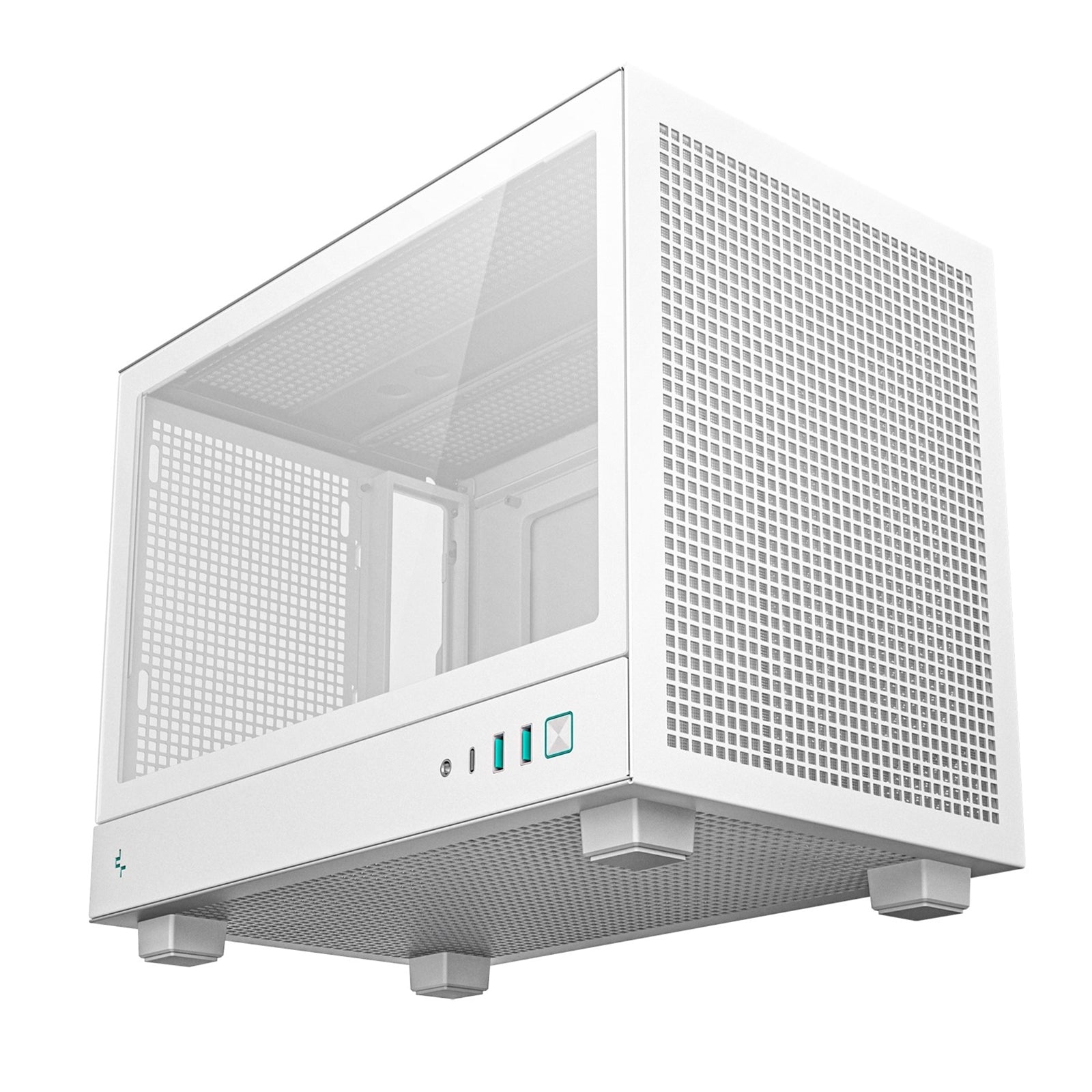

DeepCool CH160 Mini-ITX Gaming Case - White

The DeepCool CH160 WH delivers exceptional airflow and component compatibility in a compact mini-ITX footprint. Designed for builders who refuse to compromise on cooling performance, this white mesh case supports full-sized air coolers up to 172mm in height—eliminating the thermal constraints typically found in small form factor builds.

High-Airflow Mesh Design

Mesh panels surround multiple sides of the CH160, creating superior ventilation for demanding hardware configurations. The perforated design maximizes air intake while maintaining a clean aesthetic with tempered glass side panel visibility.

Full-Sized Component Support

This micro tower accommodates dual-fan GPUs up to 305mm in length (with SFX/SFX-L PSUs) or 230mm with ATX power supplies. The 3-slot design supports graphics cards up to 138mm in height and 65mm in width, with direct PCIe connection—no riser cable required, ensuring zero added GPU latency.

Flexible Power Supply Compatibility

Choose between ATX PS2 (maximum 140mm length), SFX, or SFX-L power supplies based on your build requirements. This versatility allows you to optimize for either maximum GPU length or preferred PSU type.

Smart Storage Solutions

The removable front fan bracket serves triple duty, supporting either a 2.5" SSD, 3.5" HDD, or front 120mm fan. An additional 2.5" drive bay provides extra storage capacity. Three removable dust filters simplify maintenance and protect internal components.

Modern Connectivity

Front I/O includes two USB 3.0 ports, one Gen2 Type-C port, and a hybrid audio jack. The integrated carrying handle enhances portability for LAN parties and system relocations.

Fan Configuration Options

Support for up to four 120mm fans: two top-mounted, one rear exhaust, and one front intake (when storage bays are not in use). This configuration enables optimal positive or negative pressure setups.

Technical Specifications

Dimensions: 336 x 200 x 283.5mm (L x W x H)
Weight: 3.3kg
Materials: ABS, SPCC, Tempered Glass
Motherboard: Mini-ITX
Expansion Slots: 3 Slots
CPU Cooler Clearance: 172mm
GPU Clearance: 305mm (SFX/SFX-L PSU) / 230mm (ATX PSU)
PSU Support: ATX PS2 (140mm max), SFX, SFX-L

Recommended Component Configurations

Enthusiast Build: B650I motherboard + ITX GPU (235mm max) + AK500 Series cooler + PQ-M Series PSU

Performance Build: B760I motherboard + RTX 4070/4090 (305mm max) + AK620 Series cooler + SFX PSU

Specifications Table

• Form Factor: Micro Tower
• Motherboard Support: Mini-ITX
• PSU Included: None
• Case Colour: White
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
