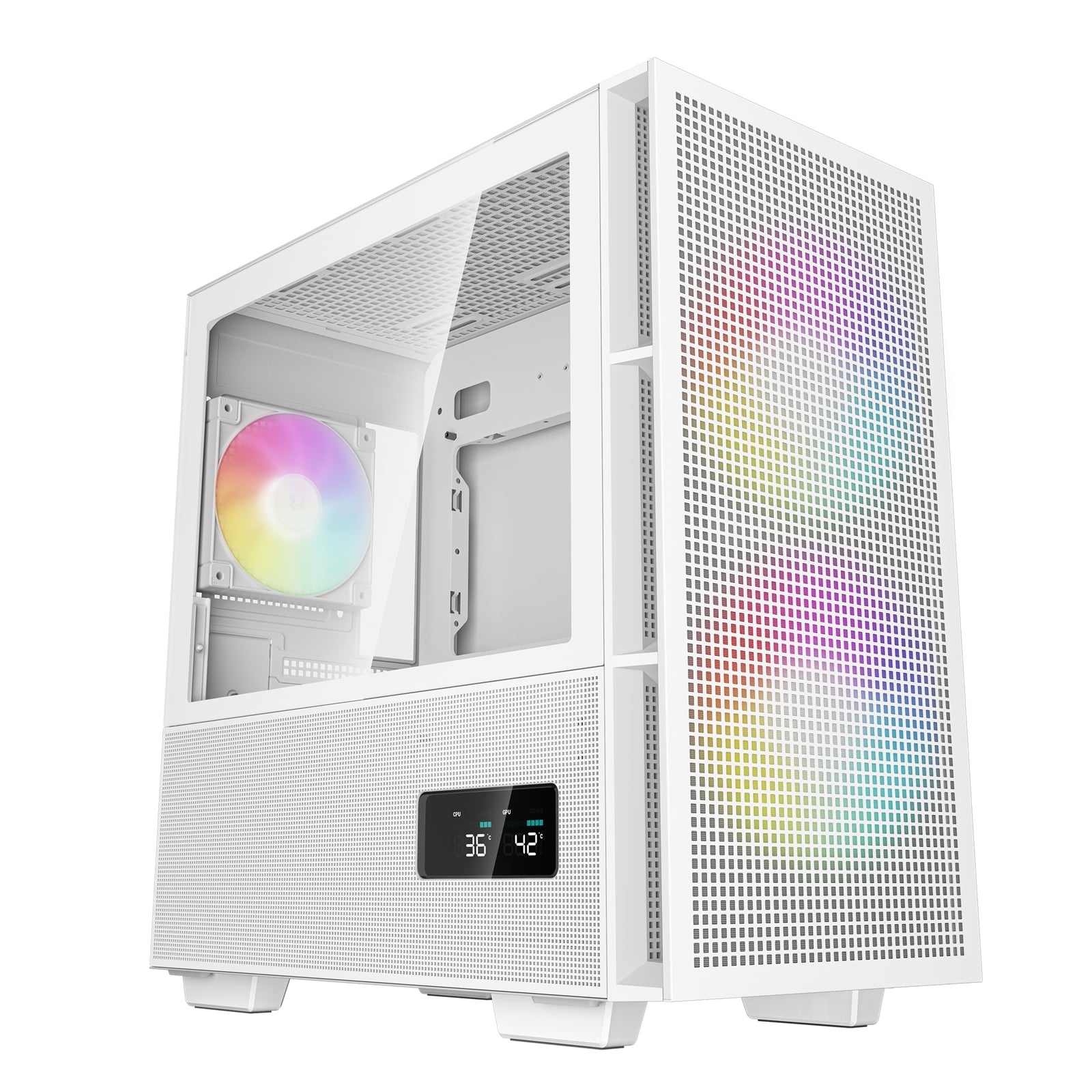

DeepCool CH360 Digital White Mid Tower Gaming Case

The CH360 DIGITAL White redefines airflow-focused PC cases with its innovative hybrid design. This mid tower chassis combines exceptional cooling performance with real-time system monitoring through an integrated dual-status digital display.

Hybrid Tempered Glass Side Panel

The unique tempered glass and mesh hybrid side panel delivers both form and function. The transparent section provides a clear view of your components while the integrated mesh ventilation supplies additional airflow directly to your GPU—addressing the thermal demands of modern high-performance graphics cards.

Real-Time Digital Display Monitoring

Monitor critical system information at a glance with the integrated dual-status digital screen. Track CPU and GPU temperatures, utilization percentages, or configure the display to alternate between both metrics in 5-second intervals. The included software application provides simple control over display configurations.

Advanced Cooling Configuration

Three pre-installed ARGB fans come standard: two 140mm PWM fans mounted externally at the front and one 120mm fan at the rear. This configuration maximizes airflow while maintaining clearance for modern GPUs. The chassis supports extensive cooling options including 360mm radiators in the front, 240mm radiators on top, and multiple fan configurations throughout.

Component Compatibility

The CH360 DIGITAL accommodates Mini-ITX and Micro-ATX motherboards with generous clearances: 165mm for CPU coolers, 320mm for graphics cards, and 160mm for ATX power supplies. Four expansion slots provide flexibility for multi-GPU setups or additional expansion cards.

Builder-Friendly Features

Practical design elements simplify building and maintenance. The magnetic hybrid panel with optional security screw, magnetic air filters, integrated GPU support arm, removable hard drive cage, and 26mm cable management space behind the motherboard tray streamline the build process. Storage options include two 3.5" drive bays and three 2.5" drive bays.

Front I/O Connectivity

The front panel features USB 3.0, USB Type-C, and a hybrid audio port for convenient daily access to essential connections.

Technical Specifications

Dimensions: 428x215x431mm (LxWxH)
Net Weight: 6 KG
Materials: ABS, SPCC, Tempered Glass
Motherboard Support: Mini-ITX / Micro-ATX
Front I/O Ports: USB3.0x1, Audiox1, TYPE-Cx1
3.5" Drive Bays: 2
2.5" Drive Bays: 2+1
Expansion Slots: 4 Slots
Pre-Installed Fans: Front: 2x140mm ARGB, Rear: 1x120mm ARGB
Fan Support: Front: 3x120 / 2x140mm, Top: 2x120 / 2x140mm, Rear: 1x120mm, PSU Shrouded: 2x120mm
Radiator Support: Front: 120/140/240/280/360mm, Top: 120/140/240mm, Rear: 120mm
CPU Cooler Height Limit: 165mm
GPU Length Limit: 320mm
Power Supply Type: ATX PS2 (maximum length: 160mm)
EAN: 6933412774686
P/N: R-CH360-WHAPE3D-G-1

• Form Factor: Mid Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: White
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Tempered Glass
