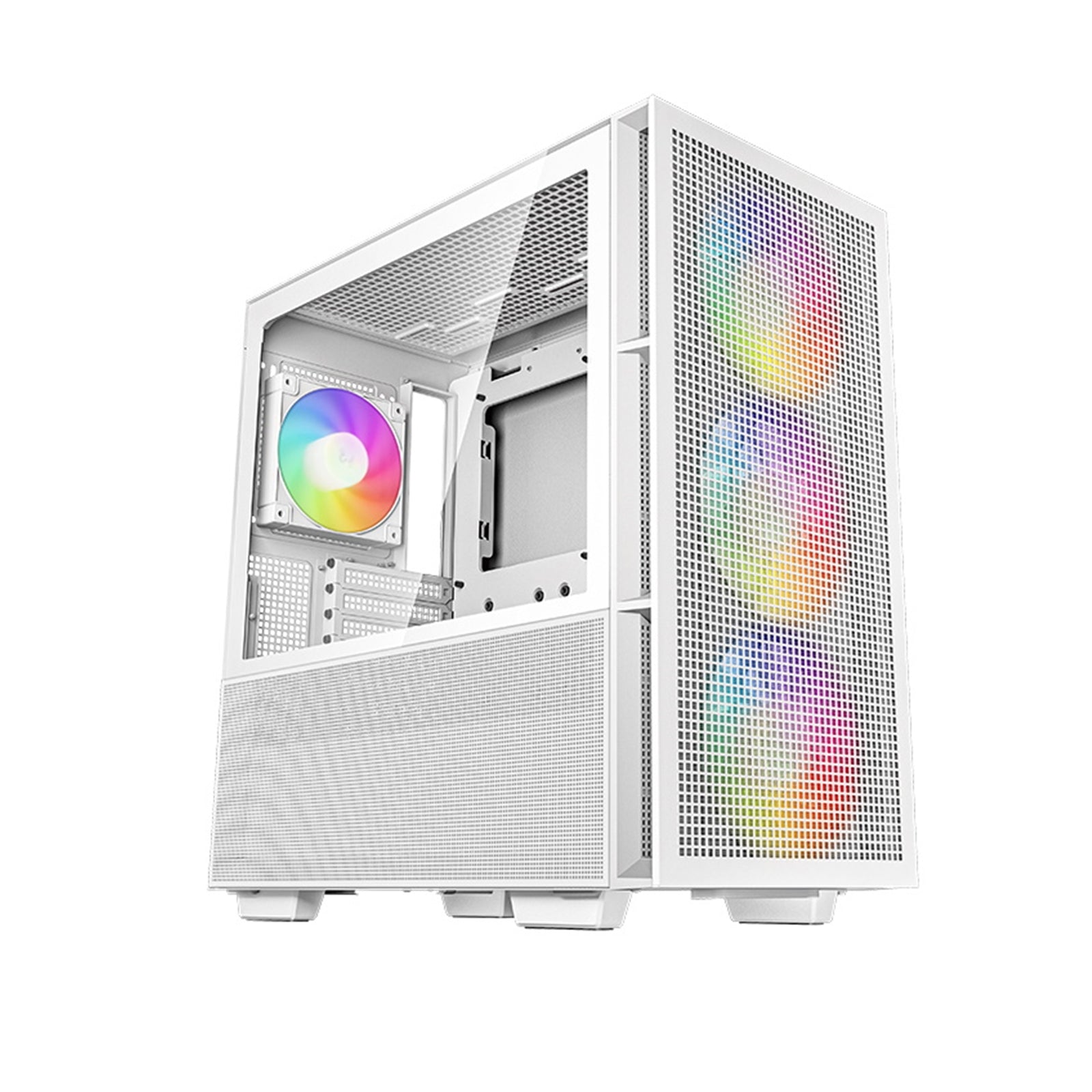

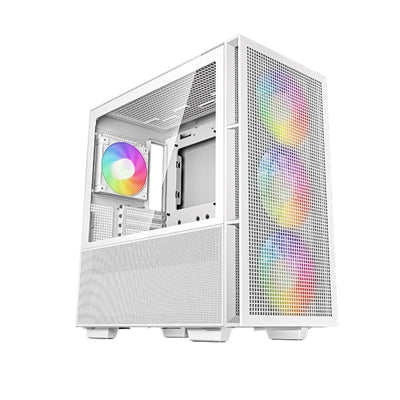

DeepCool CH560 White Mid Tower Gaming Case

The DeepCool CH560 WH delivers exceptional airflow performance in a clean white mid-tower design. This next-generation case features a unique hybrid side panel combining tempered glass with mesh ventilation, providing both visual appeal and practical cooling for modern high-performance components.

Hybrid Tempered Glass Side Panel

The CH560's distinctive hybrid side panel merges tempered glass with mesh sections, offering an unobstructed view into your system while supplying additional airflow directly to your GPU. This functional design addresses the thermal demands of modern graphics cards without compromising aesthetics.

Pre-Installed ARGB Cooling System

Four PWM-enabled ARGB fans come pre-installed: three 140mm fans mounted at the front and one 120mm fan at the rear. The front fans are positioned outside the main compartment to maximize GPU clearance while maintaining a compact footprint. All fans feature addressable RGB lighting and PWM control for optimal performance and customization.

Extensive Radiator and Fan Support

The CH560 accommodates multiple cooling configurations with support for radiators up to 360mm on both the front and top panels. Front mounting supports 120/140/240/280/360mm radiators, while the top panel offers identical compatibility. Additional fan mounting locations include the PSU shroud with space for two 120mm fans.

Component Compatibility

Built to accommodate E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, the CH560 supports CPU coolers up to 175mm tall, graphics cards up to 380mm long, and ATX power supplies up to 170mm in length. Seven expansion slots provide flexibility for multi-GPU configurations and additional expansion cards.

Storage and Cable Management

The case includes two 3.5-inch drive bays and three 2.5-inch drive bays for ample storage options. Behind the motherboard tray, 26mm of cable management space ensures clean builds. An integrated GPU support arm prevents graphics card sagging.

Front I/O and Accessibility

The front panel features one USB 3.0 port, one USB Type-C port, and a hybrid audio jack for convenient daily access. Magnetic dust filters and a magnetic hybrid side panel with optional security screw simplify maintenance and building.

Specifications

Materials: ABS+SPCC+Tempered Glass
Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports: USB 3.0 x 1, Audio x 1, TYPE-C x 1
3.5" Drive Bays: 2
2.5" Drive Bays: 2+1
Expansion Slots: 7 Slots
Pre-Installed Fans: Front: 3 x 140mm ARGB, Rear: 1 x 120mm ARGB
Fan Support: Front: 3 x 120 / 3 x 140mm, Top: 3 x 120 / 2 x 140mm, Rear: 1 x 120 / 1 x 140mm, PSU Shroud: 2 x 120mm
Radiator Support: Front: 120/140/240/280/360mm, Top: 120/140/240/280/360mm, Rear: 120/140mm
CPU Cooler Height Limit: 175mm
GPU Length Limit: 380mm
Power Supply Type: ATX PS2 (maximum length: 170mm)
Dimensions: 458 x 230 x 471mm (L x W x H)

• Form Factor: Mid Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: White
• LED Colour: Addressable RGB
• USB 3.0: 1
• Side Panel: Tempered Glass
