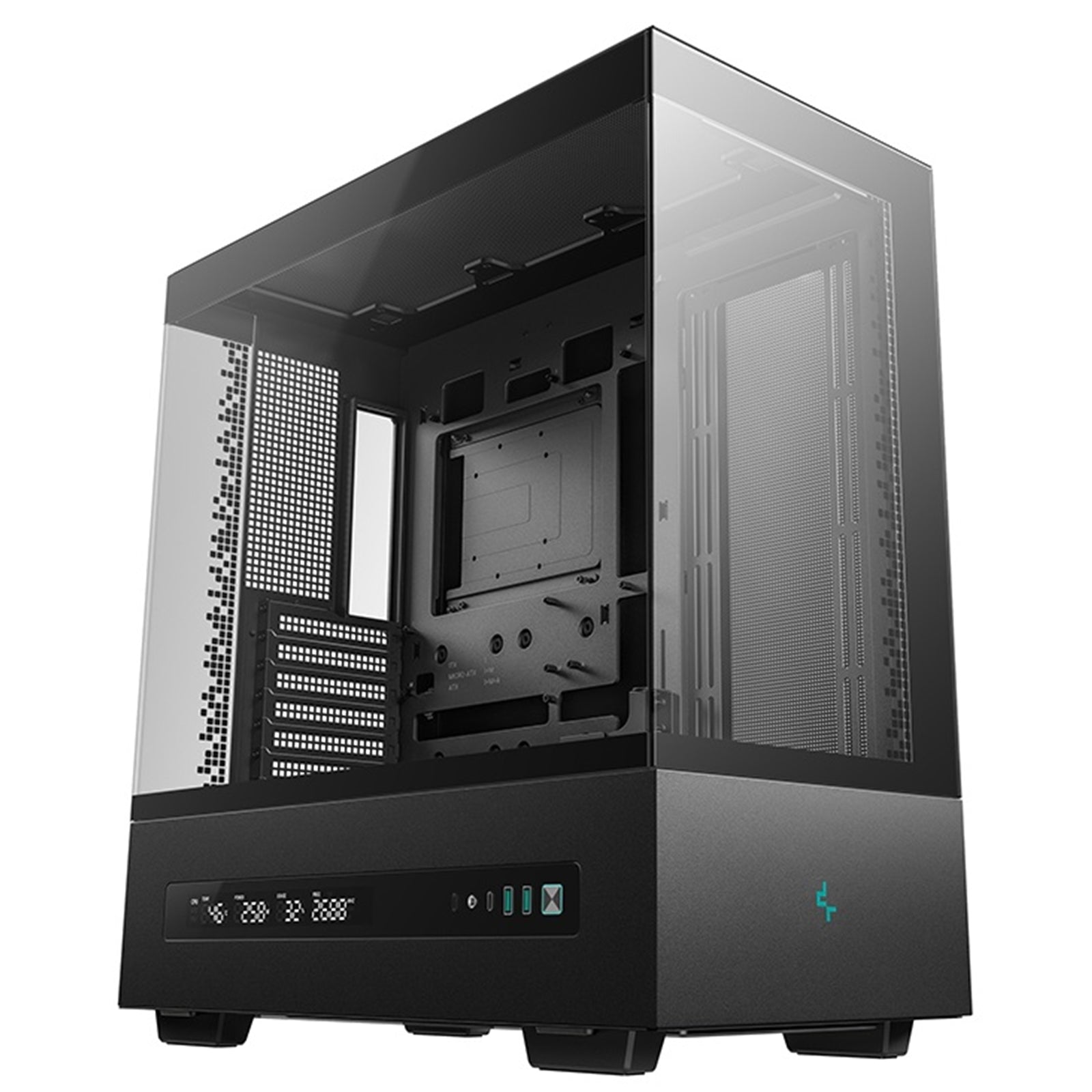

DeepCool CH690 Digital ATX Mid-Tower Case

The DeepCool CH690 Digital Black ATX Case combines adaptability with high-airflow design for builders seeking optimal cooling performance. The semi-glass panel provides clear visibility of your components while maintaining structural integrity. This mid-tower case supports ATX, Micro-ATX, and Mini-ITX motherboards, offering flexibility for various build configurations.

Customizable Airflow Configuration

The case supports DIY modifications at the rear, allowing you to replace the semi-glass panel with a mesh panel and fan bracket to enhance horizontal airflow. With support for up to 10 fans across multiple mounting positions, you can configure cooling exactly as needed. The top panel accommodates radiators up to 420mm, while side and PSU shroud positions support 280mm and 360mm radiators respectively.

Connectivity and Expansion

Front I/O includes 2x USB 3.0 ports, 1x USB Type-C (Gen 2) port, and HD Audio/Mic jacks for convenient access. Eight expansion slots provide ample room for multi-GPU configurations or additional expansion cards. The case accommodates graphics cards up to 450mm in length and CPU coolers up to 182mm in height, supporting high-performance components without compromise.

Storage and Build Flexibility

Storage options include 1x 3.5" drive bay and 2x 2.5" drive bays, sufficient for most build requirements. The case supports ATX PS2 power supplies up to 180mm in length. Constructed from SPCC steel, tempered glass, and ABS materials, the CH690 Digital measures 552mm (L) x 332mm (W) x 589mm (H) with a net weight of 9.8kg, providing solid build quality and stability.

Technical Specifications

Model Number: R-CH690-BKNNA0D-G-1
Case Type: Mid-Tower
Motherboard Support: Mini-ITX, Micro-ATX, ATX
Dimensions: 552mm (L) x 332mm (W) x 589mm (H)
Net Weight: 9.8 kg
Materials: ABS, SPCC, Tempered Glass

Front I/O Ports:
2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic

Drive Bays:
1 x 3.5" Drive Bay
2 x 2.5" Drive Bays

Expansion Slots: 8

Pre-Installed Fans: None

Fan Support:
Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
PSU Shroud: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm

Radiator Support:
Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side: 120mm / 140mm / 240mm / 280mm
PSU Shroud: 120mm / 240mm / 360mm

CPU Cooler Height Limit: 182mm
GPU Length Limit: 450mm
Power Supply Type: ATX PS2 (maximum length: 180mm)
Warranty: 1 Year

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
