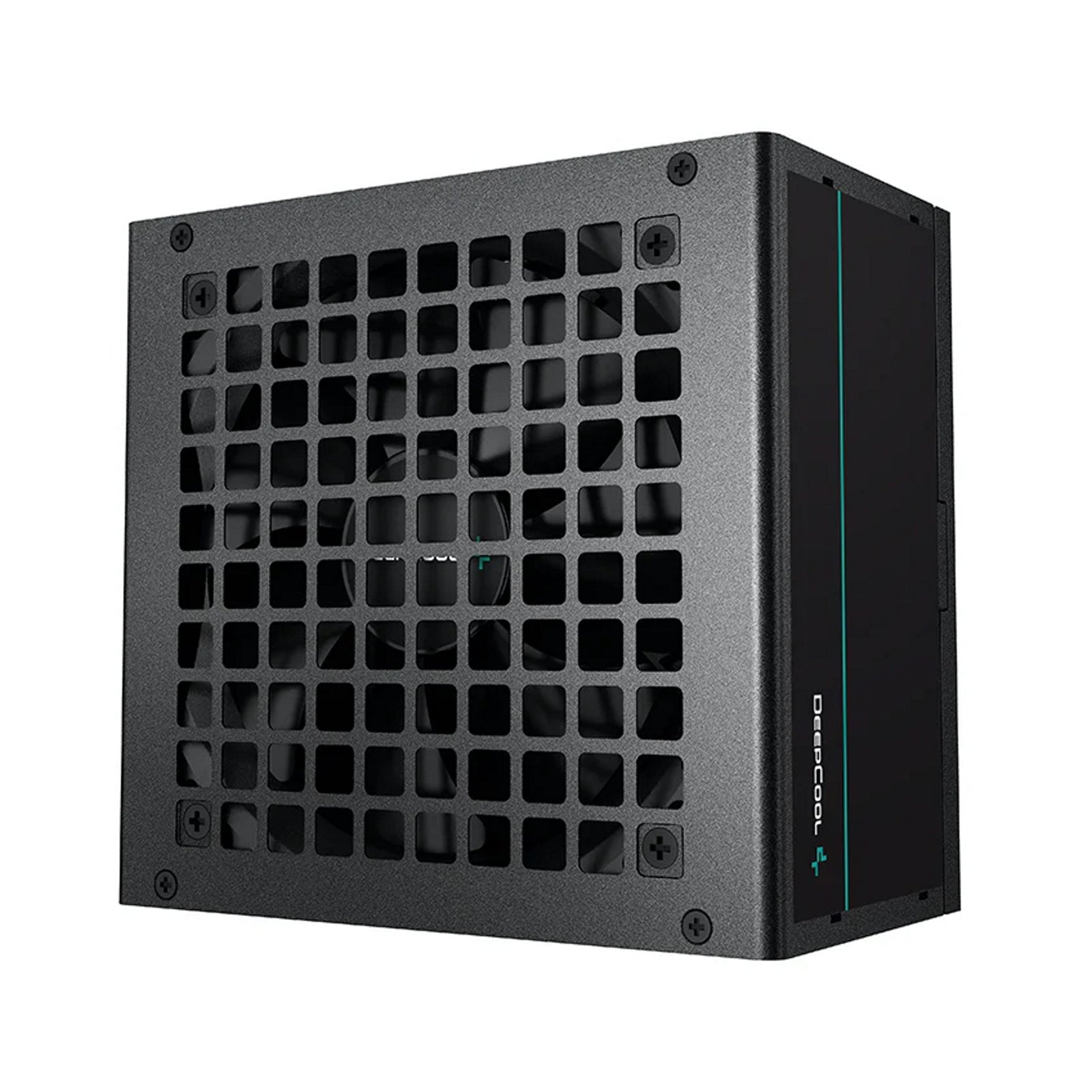

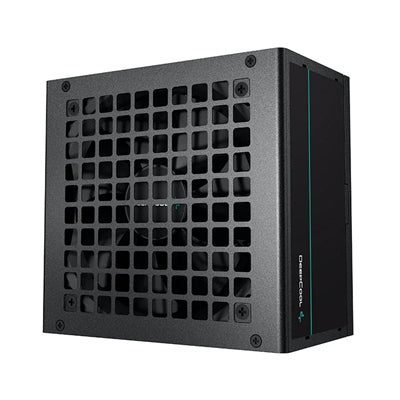

DeepCool PF500 500W Power Supply Unit

The DeepCool PF500 delivers reliable power performance for mainstream PC builds with 80 PLUS White certification and comprehensive protection features. This non-modular ATX power supply provides stable 500W output with proven efficiency standards.

80 PLUS White Certified Efficiency

Certified for 80 PLUS 230V EU Standard efficiency, the PF500 achieves 85% efficiency under typical loading conditions at 50%. This certification ensures reduced energy waste, lower operating temperatures, and decreased electricity costs over the PSU's lifespan. The active PFC and double tube forward topology work together with Taiwan bulk capacitors to maintain stable power delivery.

Silent 120mm Hydraulic Bearing Fan

Equipped with a 120mm hydro bearing fan, the PF500 balances cooling performance with quiet operation. The hydraulic bearing design reduces friction and vibration compared to standard sleeve bearings, extending the fan's operational life expectancy while maintaining low noise levels during system operation. The fan operates reliably across temperatures from 0-40°C.

Flat Black Cable Design

The fixed flat black cables offer practical advantages for system builders. Their flat profile takes up less space than traditional round cables, making cable routing easier in compact cases. The black finish maintains a clean aesthetic that blends with modern PC components.

Comprehensive Protection Systems

Multiple protection circuits safeguard your components from potential damage. Over Power Protection (OPP) prevents excessive power draw, Over Voltage Protection (OVP) guards against voltage spikes, Short Circuit Protection (SCP) detects electrical shorts, and Under Voltage Protection (UVP) monitors for insufficient voltage levels. These systems work continuously to protect your hardware investment.

ATX 12V V2.4 Specifications

The PF500 follows ATX 12V V2.4 standards and includes comprehensive connectivity: 1x 24-Pin (20+4) main power connector, 1x 8-Pin (4+4) EPS 12V connector, 2x PCIe 6+2 Pin connectors for graphics cards, 6x SATA connectors, and 2x 4-Pin peripheral connectors. The power good signal operates between 100-500ms with a hold-up time of 16ms at 75% load. With an MTBF rating of 100,000 hours and multiple regulatory certifications including CB, CCC, CE, UKCA, EAC, RCM, and BIS, this PSU meets international safety and performance standards.

PF500
80 PLUS Standard Power Supply

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
OPP - Over Power Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection

Type
ATX 12V V2.4

80 PLUS Certifications
WHITE

Fan Size
120mm

Fan Bearing
Hydro Bearing

Topology
Active PFC + Double tube forward

Capacitors
Taiwan bulk capacitor

Power Good Signal
100-500ms

Hold Up Time
=16ms (75% Load)

Efficiency
=85% Under Typical Load (50% Loading)

Protection
OPP/OVP/SCP/UVP

Operation Temperature
0-40°C

Regulatory
CB/CCC/CE/UKCA/EAC/RCM/BIS

Regulation
ErP(2010)

MTBF
100,000 Hours

Connections
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA (x2)
2 x 4-Pin Peripheral (x2)

Product Dimension ( W x L x H )
150 x 140 x 86mm

Master Carton Quantity
5

• Wattage: 500W
• Size/Version: ATX
• Modular: No
• SATA Connections: 6
• Certification: White
• Colour: Black
