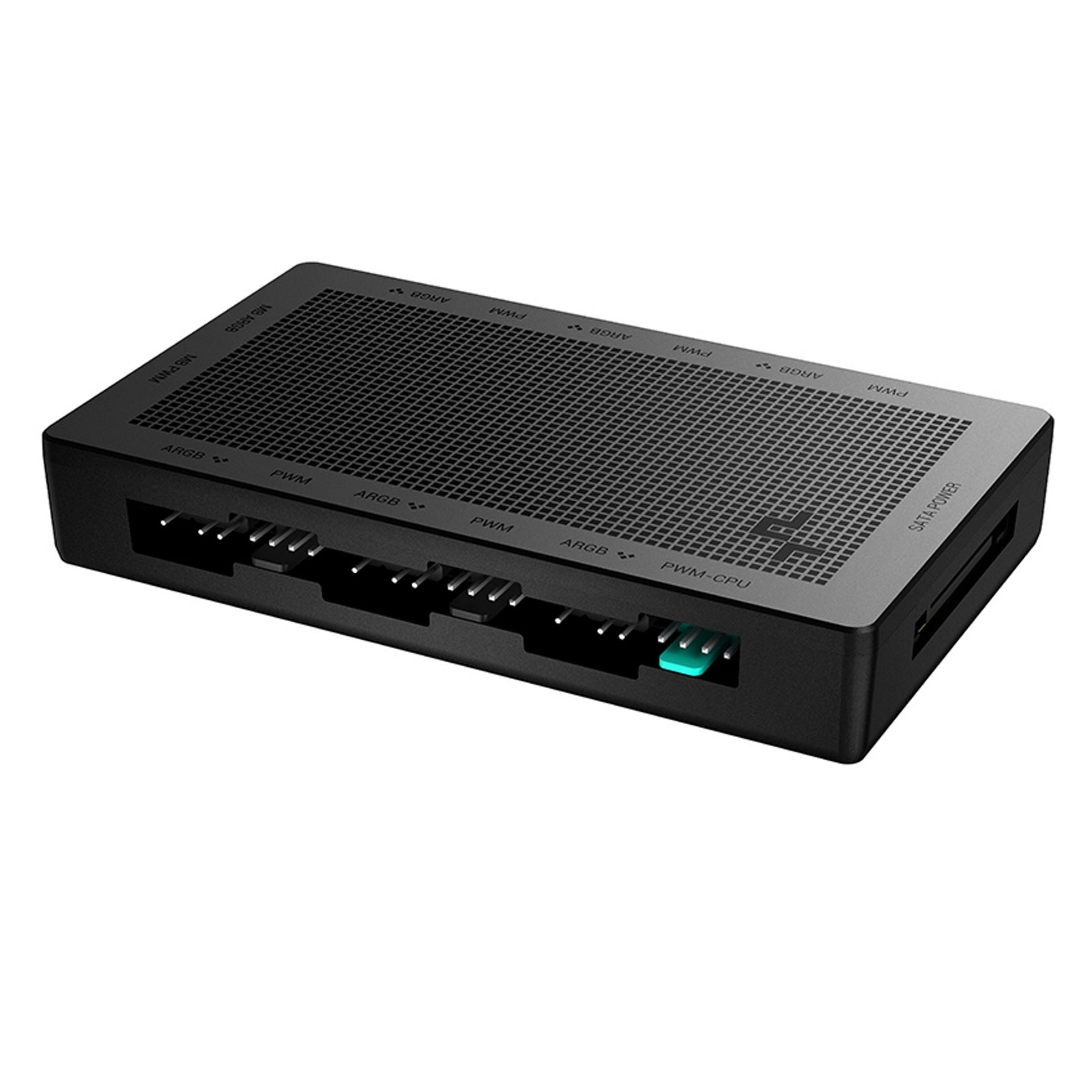

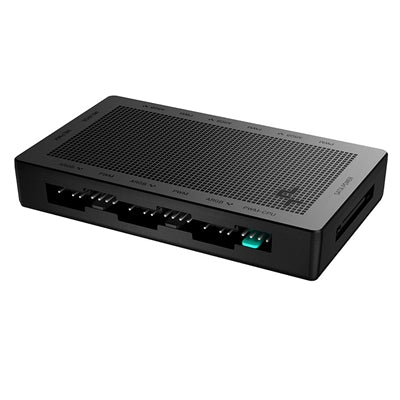

DeepCool SC790 2-in-1 PWM & ARGB Hub

The DeepCool SC790 consolidates fan and lighting control for up to 6 PWM ARGB fans through a single compact hub. This 2-in-1 solution connects to your motherboard's 3-pin 5V ARGB header and 4-pin PWM header, extending their signal to all connected fans while minimizing motherboard header usage.

Dual Control System

The SC790 manages both fan speed and addressable RGB lighting through one device. The PWM interface controls fan speeds, while the ARGB connection synchronizes lighting effects across all six ports. A SATA power connector ensures stable power delivery to all connected devices, supporting up to 4.5A total current across both PWM and RGB channels.

Motherboard Compatibility

This hub integrates with major motherboard RGB ecosystems:

• Asus Aura Sync
• Gigabyte RGB Fusion
• MSI Mystic Light Sync
• ASRock Polychrome Sync

Important: This product is NOT compatible with 12V 4-Pin RGB devices. Only 5V 3-Pin ARGB devices are supported.

Magnetic Installation

The compact 102 x 60 x 17mm case features magnetic mounting, allowing flexible placement behind the motherboard tray or any metal surface inside your case. At 69g, the hub stays securely positioned without additional mounting hardware.

Technical Specifications

Product Dimension: 102 x 60 x 17 mm
Net Weight: 69g
Port Type: ARGB 3-Pin, PWM 4-Pin
Fan Ports: 6 Ports x 4-Pin PWM
Length of Fan Connector Cable: 24AWG 500 mm
Fan Rated Voltage: 12V DC
Fan Rated Current: 2.0A (1 Port) / Total 4.5A (6 Ports)
Addressable RGB Ports: 6 Ports x 3-Pin Addressable RGB
Length of ARGB Connector Cable: 24 AWG 538mm (Asus Asrock MSI) + 50mm (Gigabyte)
RGB Rated Voltage: 5V DC
RGB Safety Current: 2.0A (1 Port) / Total 4.5A (6 Ports)
Power Connector: SATA Power
Power Safety Current: 4.5A Max
Mounting Method: Magnetic
Product Colour: Black

• Product Type: Fan Hub
• Connection A: 6 x 3-Pin ARGB (M) / 6 x 4-Pin PWM Fan (M)
• Connection B: SATA Power (M)
• Length: Adapter
• LED Colour: Addressable RGB
