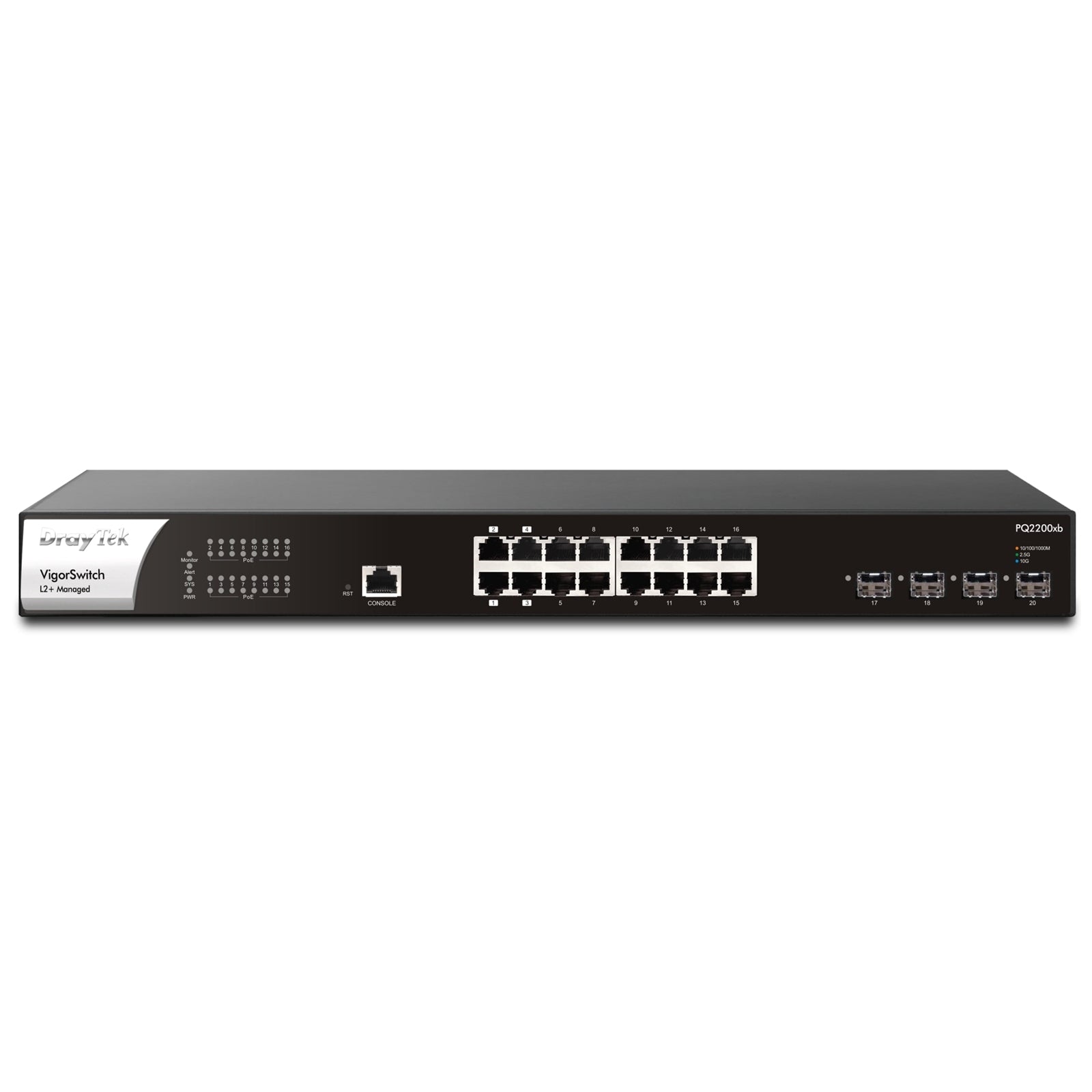

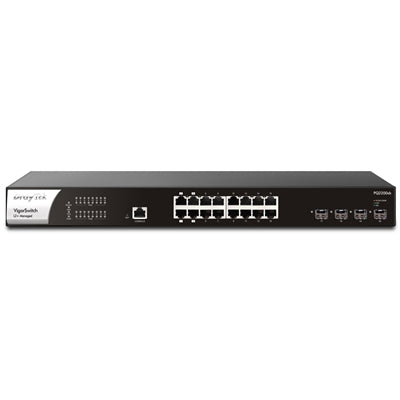

DrayTek VigorSwitch PQ2200xb - Professional 2.5 Gigabit Managed Switch

The VigorSwitch PQ2200xb delivers next-generation network performance with 16 multi-gigabit ports designed for high-throughput applications. This Layer 2+ managed switch combines 2.5GbE connectivity with substantial PoE power delivery and 10Gbps uplinks, making it the optimal solution for modern enterprise networks requiring bandwidth beyond traditional gigabit infrastructure.

Multi-Gigabit Port Configuration

Equipped with 16 dedicated 2.5 Gigabit Ethernet ports, the PQ2200xb maximizes your existing CAT 5E or higher cabling infrastructure without requiring expensive rewiring. The switch provides 12 PoE+ ports and 4 PoE++ ports, all operating at 2.5GbE speeds. This configuration perfectly supports bandwidth-intensive devices including Wi-Fi 6 access points like the VigorAP 1060C, high-resolution IP cameras, and network-attached storage systems.

400W PoE Power Budget with PoE++ Support

The total 400W PoE budget ensures reliable power delivery across all connected devices. The first four ports support PoE++ (IEEE 802.3bt) with up to 90W per port, ideal for powering high-performance access points, PTZ cameras, and other power-hungry equipment. The remaining 12 ports deliver PoE+ (IEEE 802.3at) at 30W per port. Built-in PoE scheduling and monitoring features maintain device uptime and optimize power distribution.

10 Gigabit SFP+ Uplink Ports

Four independent SFP+ ports provide 10Gbps connectivity for high-speed connections between switches, servers, and storage arrays. These dedicated uplinks prevent network bottlenecks and ensure your core infrastructure can handle aggregate traffic from all 2.5GbE access ports simultaneously.

Layer 2+ Advanced Routing Capabilities

Beyond standard Layer 2 switching, the PQ2200xb supports Layer 3 features including static routing, VLAN routing, and multi-subnet DHCP server functionality. These capabilities enable inter-VLAN communication and network segmentation without requiring additional routing hardware, simplifying network architecture and reducing equipment costs.

Flexible Management Options

Configure and monitor the switch through multiple management interfaces: standalone via the intuitive web interface, centrally through VigorACS cloud management platform, or using DrayTek's Central Switch Management integrated into Vigor routers. VLAN configurations can be provisioned directly through your router and cloned across multiple switches, dramatically reducing deployment time for complex multi-switch networks.

Enterprise Security Features

Comprehensive security protocols protect your network infrastructure. 802.1X port-based authentication controls network access, while DHCP Snooping prevents rogue DHCP servers. IP Source Guard validates IP-to-MAC address bindings, and Access Control Lists (ACLs) provide granular traffic filtering. These features work together to create a secure, stable network environment.

• Category: Switch
• Speed:
• POE Enabled: Yes
