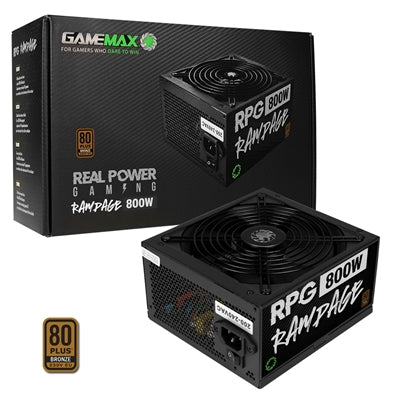

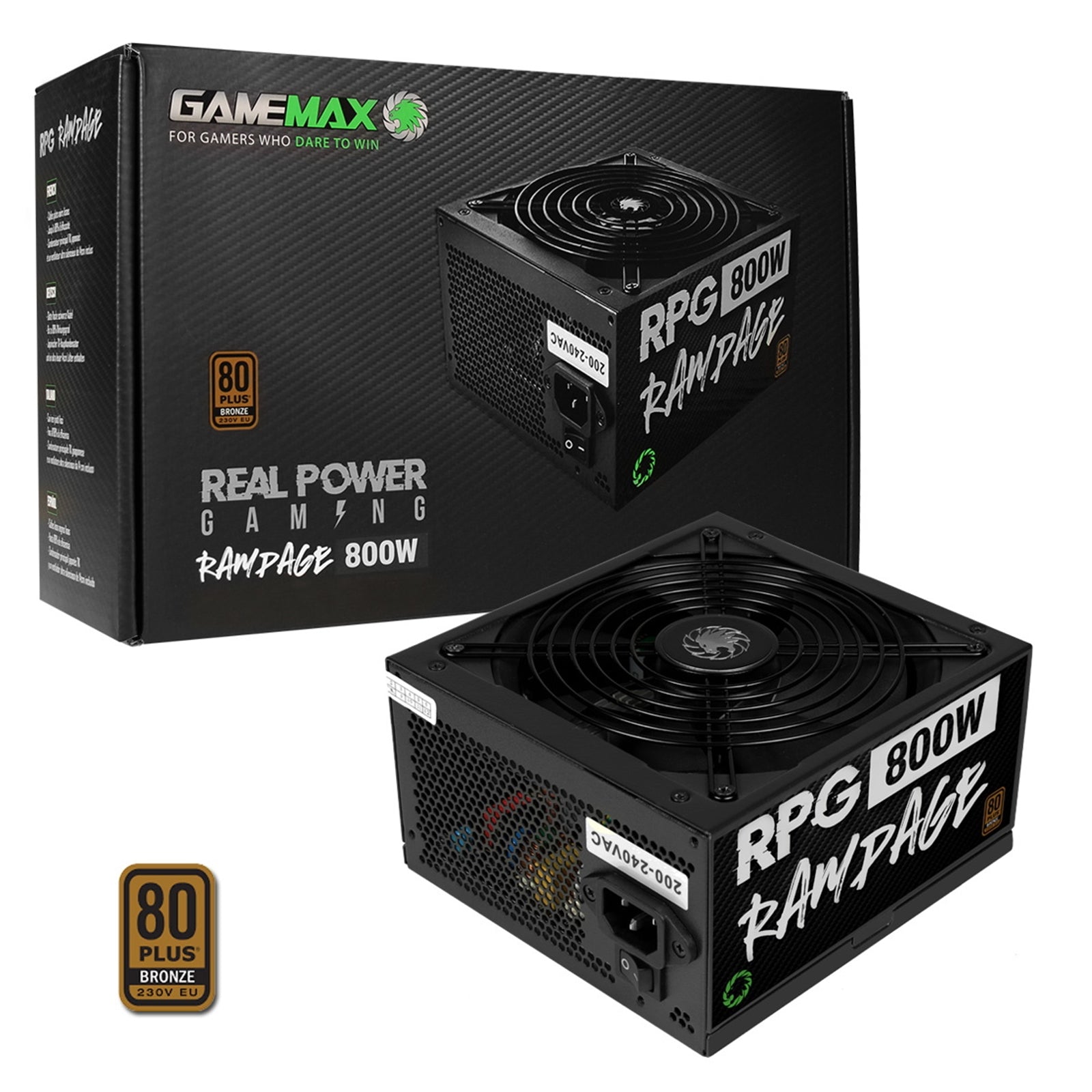

GAMEMAX Rampage 800W Power Supply - Reliable Performance for Gaming Systems

The GAMEMAX Rampage 800W power supply delivers consistent, reliable power for gaming rigs and high-performance PC builds. This 80 PLUS Bronze certified PSU achieves up to 88% efficiency at 50% load, featuring a Japanese TK main capacitor for extended lifespan and dependable operation.

80 PLUS Bronze Efficiency

Certified to 80 PLUS Bronze 230V standards, the Rampage 800W operates at up to 88% efficiency during typical usage. This efficiency level reduces energy waste and heat generation, contributing to lower operating costs and improved system stability.

Japanese TK Main Capacitor

Built with a Japanese TK main capacitor, this power supply offers superior quality assurance and extended reliability. The high-grade capacitor provides stable voltage delivery and contributes to the unit's 100,000-hour MTBF rating.

140mm Ultra Silent Cooling

The 140mm cooling fan operates at just 40dBA, maintaining optimal temperatures without excessive noise. This large-diameter fan moves sufficient air at lower RPMs, ensuring your PSU runs cool during extended gaming sessions while keeping your system quiet.

Comprehensive Connectivity

The non-modular design includes all necessary connections: 1x 24+4 Pin motherboard connector, 2x 4+4 Pin 12V CPU connectors, 6x SATA connectors, 2x 4-Pin Molex, and 4x 6+2 Pin PCI-e connectors. This configuration supports high-end graphics cards and modern CPU requirements with a single 12V rail delivering high current output.

Flat Black Cable Design

Flat black cables improve cable management and airflow within your case. The all-black aesthetic complements modern PC builds while making routing and organization simpler during installation.

Built-In Protection

Multiple protection features safeguard your components: Over Voltage Protection (OVP), Over Power Protection (OPP), and Under Voltage Protection (UVP). These safety mechanisms protect against power irregularities and potential hardware damage.

Technical Specifications

• Wattage: 800W
• Input: 200-240 VAC, 50Hz
• Efficiency: 85% (88% at 50% load)
• PFC: Active
• Cooling: 140mm fan, 40dBA
• MTBF: 100,000 Hours
• Dimensions: 150mm x 87mm x 160mm
• Certifications: CE, FCC, CB, 80 PLUS Bronze
• Warranty: 2 Years

Package Contents

Includes PSU unit, user manual, cable ties, and mounting screws for straightforward installation.

The GAMEMAX Rampage 800W provides the power capacity and reliability needed for gaming systems and high-performance builds, backed by quality components and comprehensive protection features.

• Wattage: 800W
• Size/Version: ATX
• Modular: No
• SATA Connections: 6
• Certification: Bronze
• Colour: Black
