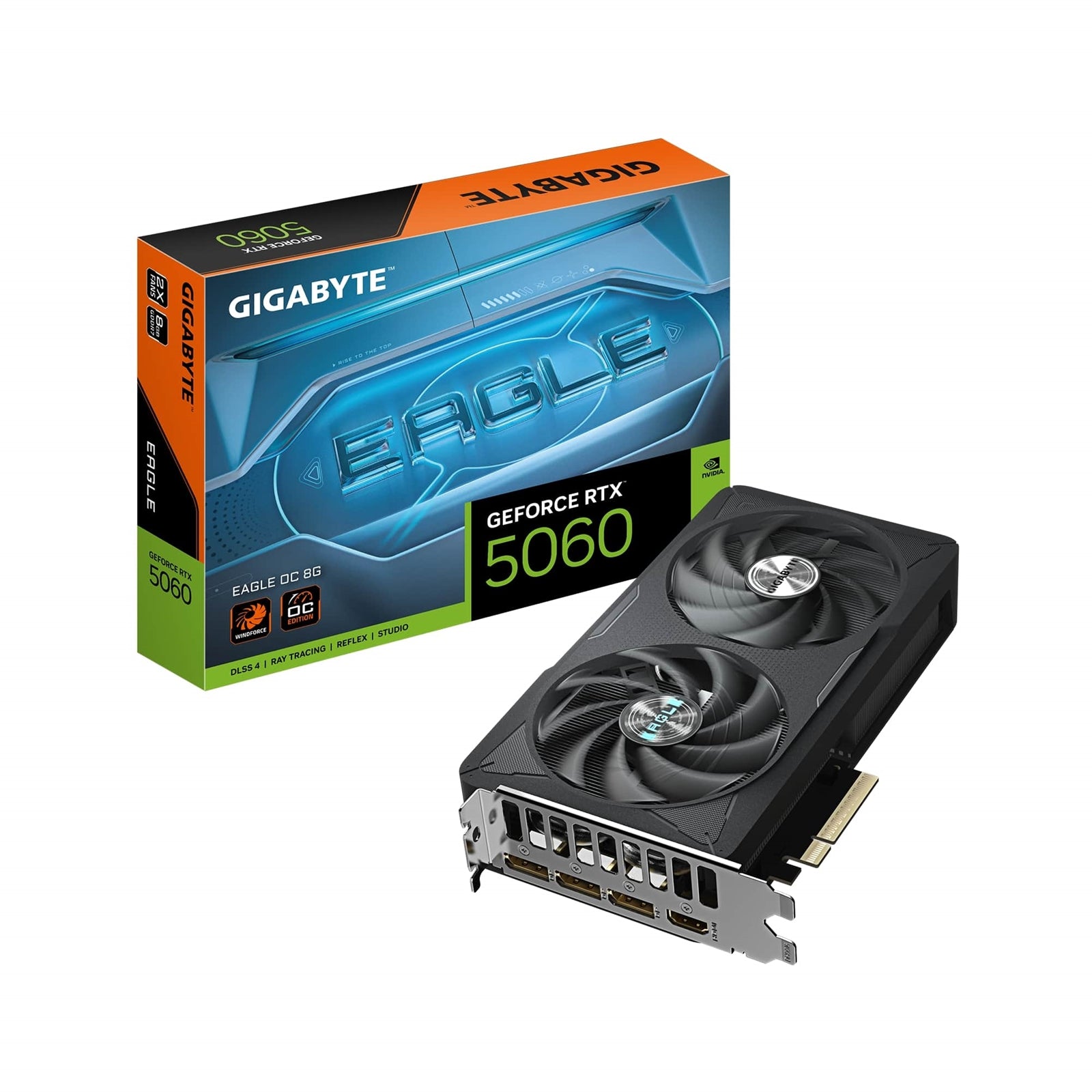

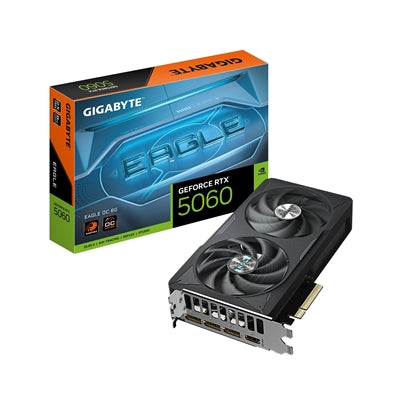

GeForce RTX 5060 EAGLE OC 8G Graphics Card

The GeForce RTX 5060 EAGLE OC 8G delivers next-generation gaming performance powered by NVIDIA's Blackwell architecture. This graphics card features 8GB of GDDR7 memory on a 128-bit interface, providing the bandwidth needed for modern gaming at 1080p and 1440p resolutions.

Performance Specifications

Equipped with 3840 CUDA cores and an overclocked core speed of 2550 MHz (53 MHz above the reference 2497 MHz), this card handles demanding games and applications with ease. The 28 Gbps memory clock ensures fast data transfer, while DLSS 4 technology provides AI-enhanced performance and image quality. Support for DirectX 12 API and OpenGL 4.6 ensures compatibility with the latest gaming titles.

WINDFORCE Cooling System

The dual-fan WINDFORCE cooling system keeps temperatures in check during extended gaming sessions. Hawk fan technology optimizes airflow while maintaining quiet operation. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU to the heatsink, and the reinforced structure provides durability and prevents PCB bending.

Display Connectivity

Connect up to four displays simultaneously with three DisplayPort 2.1b outputs and one HDMI 2.1b port. The card supports digital resolutions up to 7680x4320, making it ready for 8K displays and multi-monitor setups. Both DisplayPort and HDMI 2.1b provide the latest connectivity standards for high refresh rate gaming.

Compact Design

Measuring 208mm in length, 120mm in width, and 40mm in height, this 2-slot ATX form factor card fits in most standard PC cases. The compact design doesn't compromise on cooling performance, making it suitable for mid-tower and smaller builds. A single 8-pin power connector and 450W recommended PSU keep power requirements reasonable.

Technical Specifications

GeForce RTX 5060 EAGLE OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2550 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2550 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=208 W=120 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
