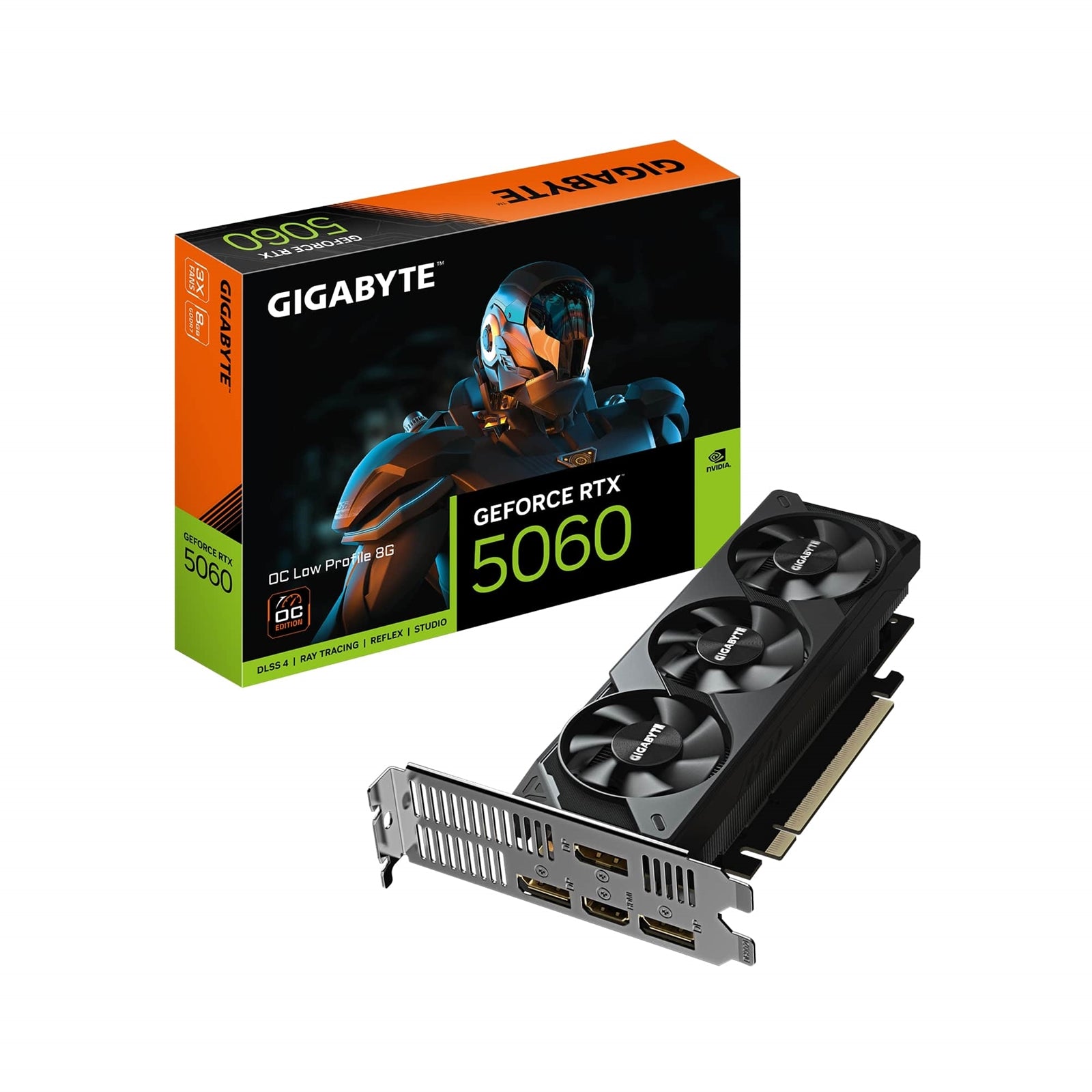

GeForce RTX 5060 OC Low Profile Graphics Card

The GeForce RTX 5060 OC Low Profile delivers NVIDIA Blackwell architecture performance in a compact 182mm form factor. Featuring 8GB GDDR7 memory across a 128-bit interface and 3840 CUDA cores, this graphics card provides modern gaming capabilities for small form factor builds without compromising on features.

Blackwell Architecture Performance

Built on NVIDIA's Blackwell architecture with DLSS 4 support, the RTX 5060 operates at a factory overclocked 2512 MHz core clock, exceeding the reference 2497 MHz specification. The 8GB GDDR7 memory runs at 28 Gbps, providing sufficient bandwidth for 1080p gaming and content creation workloads. PCI-E 5.0 compatibility ensures forward compatibility with modern motherboards.

Compact Low Profile Design

Measuring 182mm in length, 69mm in width, and 36mm in height, this low profile graphics card fits mini-ITX cases and slim desktop chassis. The included low profile bracket enables installation in systems with restricted expansion slot clearance. Despite the compact dimensions, the triple-fan cooling solution maintains thermal performance with server-grade thermal conductive gel and graphene nano lubricant technology.

Display Connectivity

Multi-display support extends to four simultaneous outputs through three DisplayPorts and one HDMI port. The configuration includes two DisplayPort 2.1b connections, one DisplayPort 1.4a port, and one HDMI 2.1b port, supporting digital resolutions up to 7680x4320. This versatility accommodates multi-monitor productivity setups and high-resolution gaming configurations.

Power and Compatibility

Operating on a single 8-pin power connector with a recommended 450W PSU, the RTX 5060 OC Low Profile maintains power efficiency suitable for compact systems. DirectX 12 API and OpenGL 4.6 support ensures compatibility with current gaming titles and professional applications.

GeForce RTX 5060 OC Low Profile 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128 bit memory interface
Low Profile Design with 182mm card length
Server-grade Thermal conductive gel
Graphene Nano Lubricant
Supports up to 4 displays

CORE CLOCK
2512 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2512 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=182 W=69 H=36

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *2
DisplayPort 1.4a *1
HDMI 2.1b *1

Accessories
1. Quick guide
2. Low Profile Bracket

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 3x ATX
• Memory: 8GB
• Fans: 3
• RGB: No
