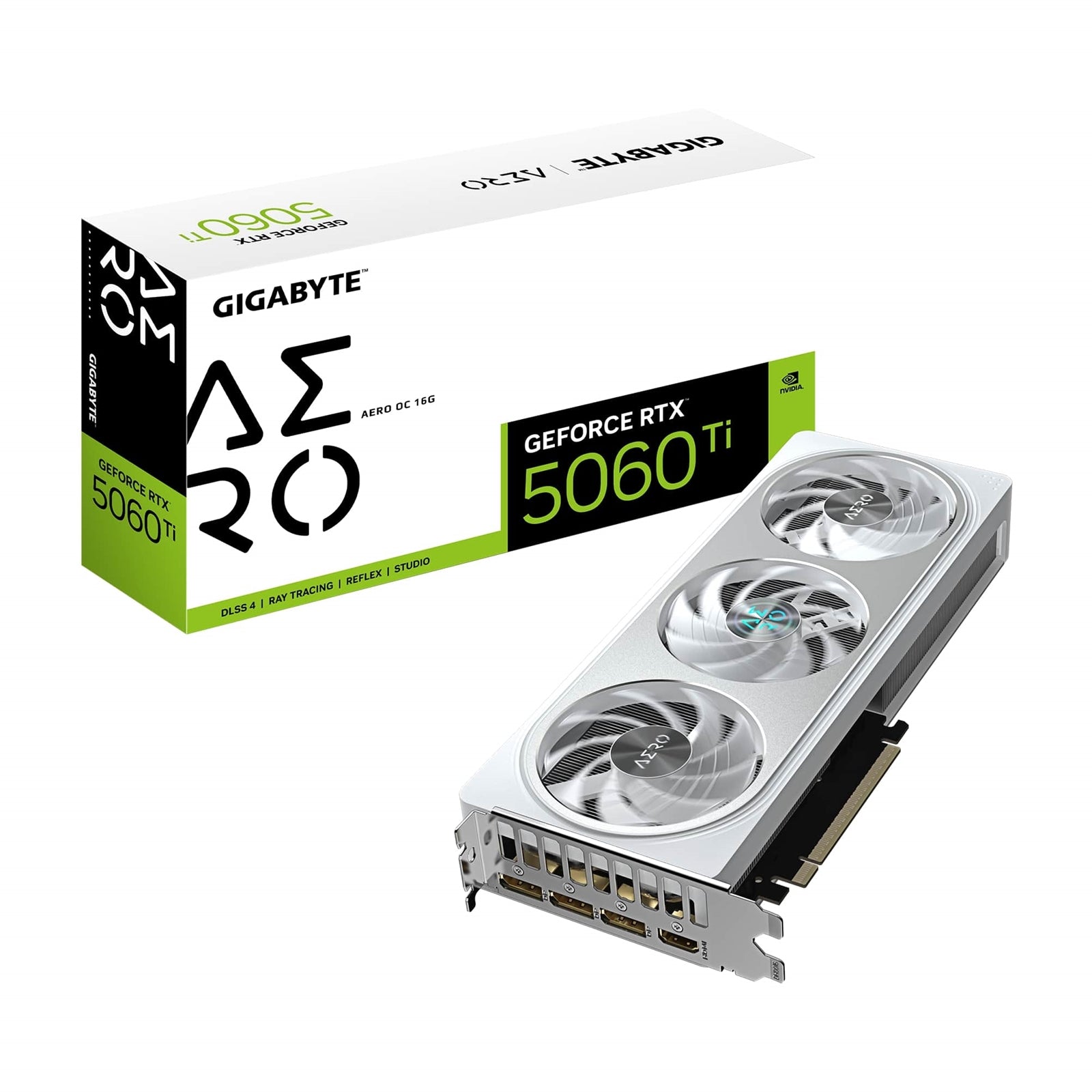

GIGABYTE GeForce RTX 5060 Ti AERO OC 16GB GDDR7 Graphics Card

The GIGABYTE GeForce RTX 5060 Ti AERO OC delivers advanced gaming performance with NVIDIA's Blackwell architecture and DLSS 4 technology. This graphics card features 16GB of GDDR7 memory on a 128-bit interface, providing the bandwidth needed for modern gaming at high resolutions up to 7680x4320.

Performance Specifications

Equipped with 4608 CUDA cores and a boosted core clock of 2647 MHz (75 MHz above reference), this card handles demanding workloads efficiently. The 28 Gbps memory clock ensures rapid data transfer, while PCI-E 5.0 compatibility provides maximum bandwidth for current and future systems. DirectX 12 API and OpenGL 4.6 support ensure compatibility with the latest gaming titles.

WINDFORCE Cooling System

The WINDFORCE cooling solution features triple Hawk fans designed for optimal thermal management. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU, maintaining stable performance during extended gaming sessions. The reinforced structure adds durability and prevents PCB flex. Dual BIOS functionality offers Performance and Silent modes, letting you prioritize either maximum performance or quieter operation.

Connectivity and Display Options

Three DisplayPort 2.1b outputs and one HDMI 2.1b port provide flexible multi-monitor configurations, supporting up to four displays simultaneously. This connectivity suite enables high-refresh-rate gaming and content creation workflows across multiple screens.

Design and Power Requirements

Measuring 281mm (L) x 117mm (W) x 40mm (H), this ATX form factor card fits most standard gaming cases. RGB lighting adds customizable aesthetics to your build. A single 8-pin power connector and 650W recommended PSU make power delivery straightforward for mid-range gaming systems.

GeForce RTX 5060 Ti AERO OC 16BG

Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.

Key Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

Specifcations

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2647 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=117 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 3x ATX
• Memory: 16GB
• Fans: 3
• RGB: Yes
