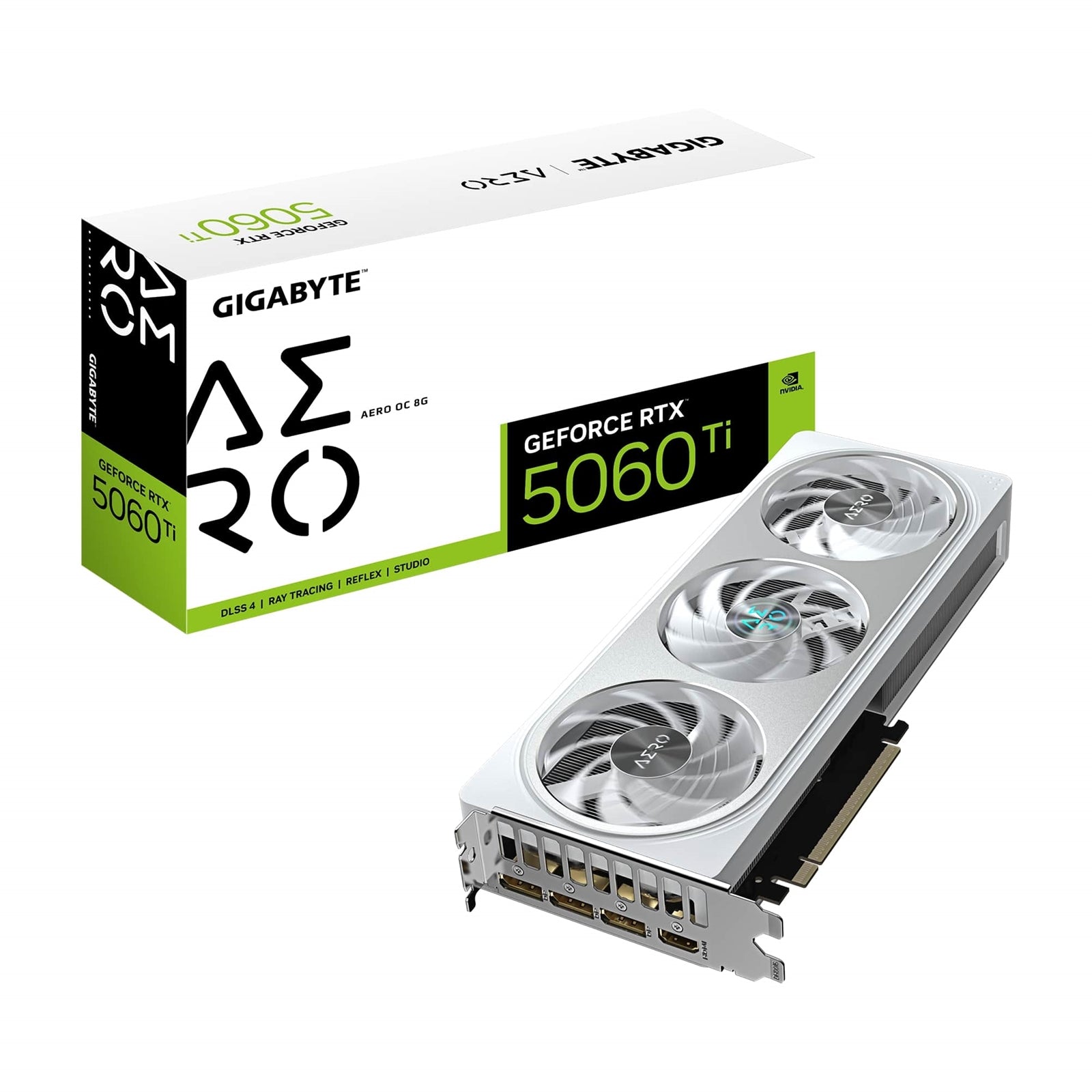

GeForce RTX 5060 Ti AERO OC 8GB GDDR7 Graphics Card

The GeForce RTX 5060 Ti AERO OC delivers advanced gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This graphics card features 8GB of GDDR7 memory on a 128-bit interface, providing fast data throughput for modern gaming and creative workloads.

Performance Specifications

Equipped with 4608 CUDA Cores and a boosted core clock of 2647 MHz (75 MHz above reference), this card offers enhanced performance out of the box. The 28 Gbps memory clock ensures smooth frame rates in demanding titles, while PCIe 5.0 compatibility provides maximum bandwidth for data transfer.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling solution features Hawk fan technology designed for efficient heat dissipation. Server-grade thermal conductive gel ensures optimal thermal transfer from the GPU, maintaining stable temperatures during extended gaming sessions. The cooling system balances performance with acoustics, keeping the card cool without excessive noise.

Dual BIOS and RGB Lighting

Switch between Performance and Silent BIOS modes to match your preference. Performance mode maximizes clock speeds for competitive gaming, while Silent mode reduces fan speeds for quieter operation during less demanding tasks. Customizable RGB lighting adds visual flair to your build and syncs with compatible motherboard software.

Display Connectivity

Connect up to four displays simultaneously with three DisplayPort 2.1b outputs and one HDMI 2.1b port. Supports digital resolutions up to 7680x4320, making it suitable for 4K gaming, multi-monitor setups, and high-resolution content creation. The reinforced structure ensures durability and prevents PCB sagging in your case.

Technical Specifications

Graphics Processing: GeForce RTX 5060 Ti
Core Clock: 2647 MHz (Reference: 2572 MHz)
CUDA Cores: 4608
Memory: 8GB GDDR7
Memory Clock: 28 Gbps
Memory Bus: 128-bit
Card Bus: PCI-E 5.0
Digital Resolution: 7680x4320
Multi-view Support: 4 displays
Card Dimensions: 281mm (L) x 117mm (W) x 40mm (H)
PCB Form: ATX
DirectX: 12 API
OpenGL: 4.6
Recommended PSU: 650W
Power Connectors: 1x 8-Pin
Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 3x ATX
• Memory: 8GB
• Fans: 3
• RGB: Yes
