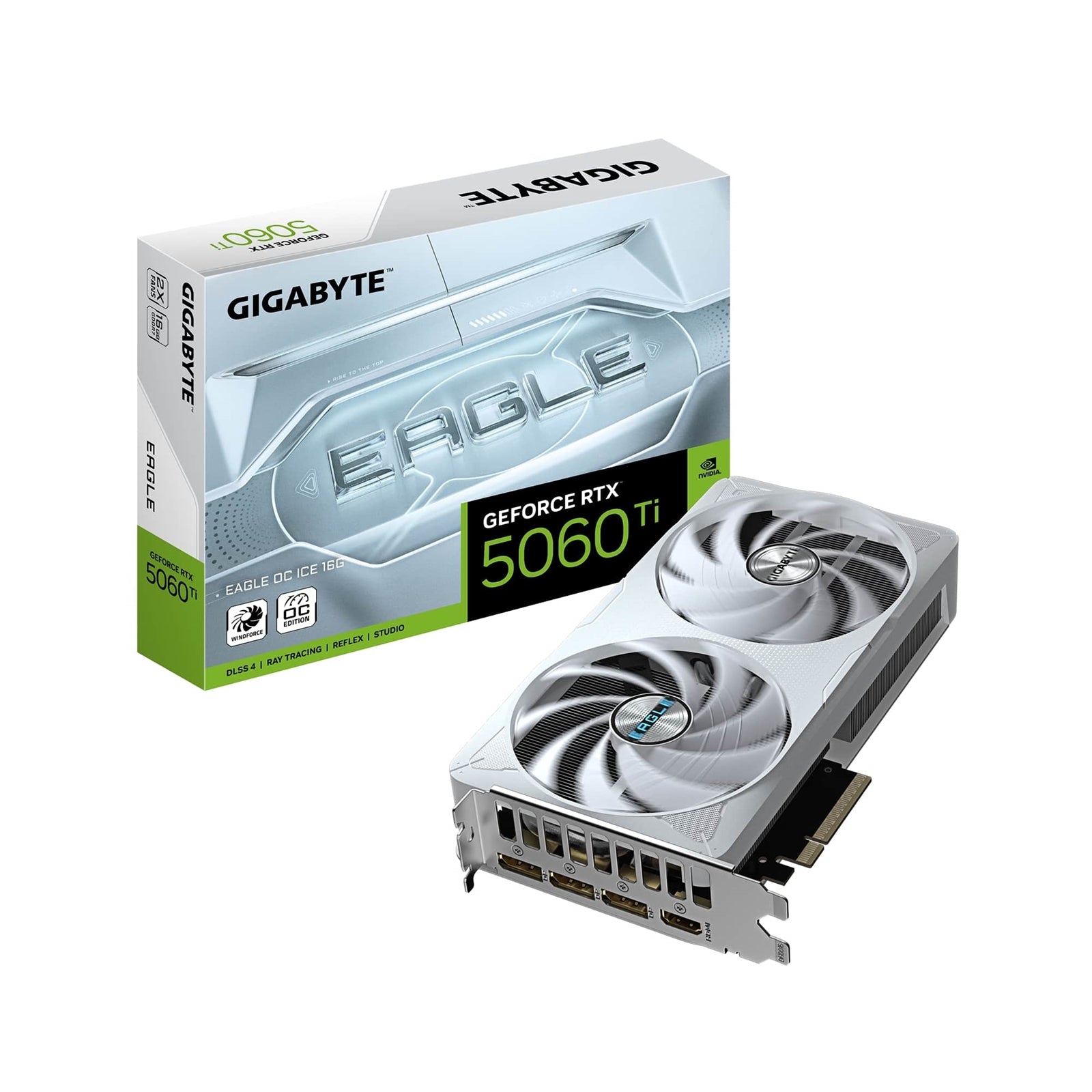

GeForce RTX 5060 Ti EAGLE OC ICE 16GB GDDR7 Graphics Card

The GeForce RTX 5060 Ti EAGLE OC ICE delivers next-generation gaming performance powered by NVIDIA's Blackwell architecture. This graphics card features 16GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, providing the bandwidth needed for modern gaming at high resolutions.

Performance Specifications

Built with 4608 CUDA cores and a factory-overclocked core speed of 2617 MHz (45 MHz above reference), this RTX 5060 Ti variant offers enhanced performance out of the box. The card supports DLSS 4 technology, delivering improved frame rates and visual quality through AI-powered rendering. DirectX 12 API and OpenGL 4.6 support ensure compatibility with the latest games and applications.

WINDFORCE Cooling System

The dual-fan WINDFORCE cooling solution utilizes Hawk fan technology to maintain optimal temperatures during intensive gaming sessions. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU to the heatsink, while the reinforced structure provides additional durability and prevents PCB bending.

Display Connectivity

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 Ti EAGLE OC ICE supports up to four displays simultaneously with a maximum digital resolution of 7680x4320. This makes it suitable for multi-monitor setups and high-resolution gaming configurations.

Technical Specifications

The card measures 215mm in length, 122mm in width, and 40mm in height, fitting into standard 2-slot ATX form factor cases. It requires a single 8-pin power connector and a recommended 650W power supply. The PCIe 5.0 interface ensures maximum bandwidth for data transfer between the graphics card and motherboard.

GeForce RTX 5060 Ti EAGLE OC Ice 16G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2617 MHz (Reference card :2572 MHz)

Specification

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 2
• RGB: No
