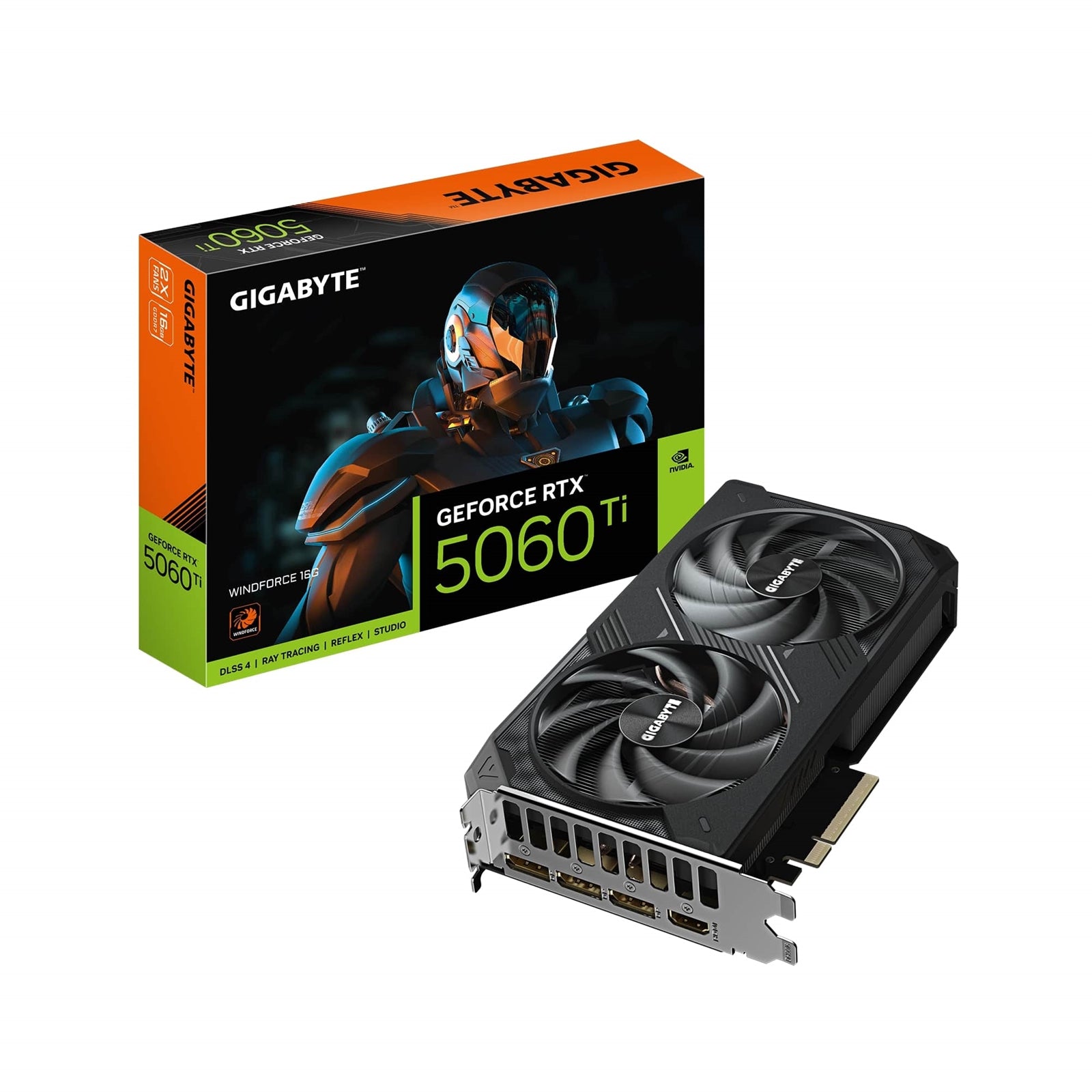

GeForce RTX 5060 Ti WINDFORCE 16G

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE 16G delivers high-performance gaming with NVIDIA's Blackwell architecture and DLSS 4 technology. This graphics card combines 16GB GDDR7 memory with 4608 CUDA cores to handle demanding games and applications at 4K resolution.

Performance Specifications

Built on the GeForce RTX 5060 Ti GPU, this card operates at a 2572 MHz core clock with 28 Gbps memory speed across a 128-bit interface. The PCI-E 5.0 interface ensures maximum bandwidth for data transfer, while DirectX 12 API and OpenGL 4.6 support provide compatibility with modern gaming titles. The card supports digital resolutions up to 7680x4320 and multi-view output across 4 displays.

WINDFORCE Cooling Technology

The dual-fan WINDFORCE cooling system features Hawk fans designed for efficient heat dissipation. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU to the heatsink. The reinforced structure maintains card integrity under thermal stress while keeping dimensions compact at 208mm x 120mm x 40mm.

Display Connectivity

Connect multiple displays with 3x DisplayPort 2.1b outputs and 1x HDMI 2.1b port. This configuration supports high refresh rate gaming monitors and 4K displays simultaneously, providing flexibility for multi-monitor setups.

Technical Specifications

Graphics Processing: GeForce RTX 5060 Ti
Core Clock: 2572 MHz
CUDA Cores: 4608
Memory: 16GB GDDR7, 128-bit, 28 Gbps
Card Bus: PCI-E 5.0
Max Resolution: 7680x4320
PCB Form: ATX
Power Requirements: 650W PSU, 8-Pin connector
Outputs: DisplayPort 2.1b x3, HDMI 2.1b x1

System Requirements

A 650W power supply with one 8-pin PCIe power connector is recommended. The 2-slot ATX form factor fits standard PC cases with adequate clearance. Package includes a quick guide for installation.

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 2
• RGB: No
