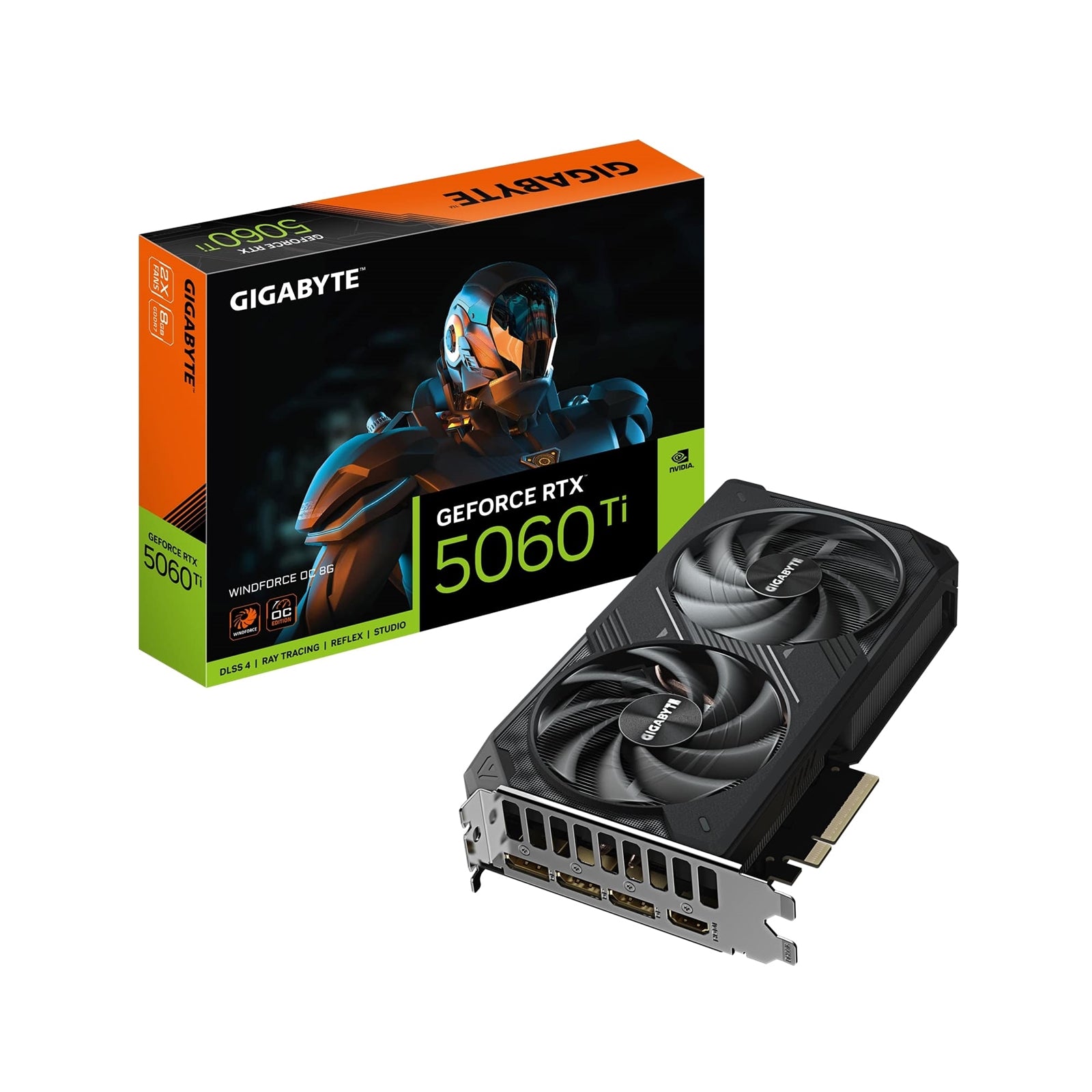

GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 8G Graphics Card

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 8G delivers high-performance gaming powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This graphics card combines 8GB of GDDR7 memory with advanced cooling solutions to provide reliable performance for modern gaming and content creation.

Performance Specifications

Equipped with 4608 CUDA Cores and a boosted core clock of 2587 MHz (15 MHz higher than reference), this GPU handles demanding games and applications with efficiency. The 8GB GDDR7 memory operates at 28 Gbps across a 128-bit interface, providing sufficient bandwidth for high-resolution gaming. PCI-E 5.0 compatibility ensures maximum data transfer rates with modern motherboards.

WINDFORCE Cooling System

The dual-fan WINDFORCE cooling system uses Hawk fan technology to maintain optimal temperatures during extended gaming sessions. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU die to the heatsink. The reinforced structure adds durability and prevents PCB bending, protecting your investment over time.

Display Connectivity

Connect up to four displays simultaneously with three DisplayPort 2.1b outputs and one HDMI 2.1b port. Support for 7680x4320 maximum digital resolution enables ultra-high-definition gaming and content creation. Multi-view capability allows flexible monitor configurations for productivity and immersive gaming setups.

Compact Design

Measuring 208mm (L) x 120mm (W) x 40mm (H), this dual-slot ATX form factor card fits most standard PC cases without compromising on cooling performance. The compact dimensions make it suitable for smaller builds while maintaining the performance expected from RTX 5060 Ti hardware.

Power Requirements

A 650W power supply with one 8-pin PCIe power connector is recommended for stable operation. The efficient Blackwell architecture provides strong performance-per-watt characteristics compared to previous generations.

Technical Specifications

Graphics Processing: GeForce RTX 5060 Ti
Core Clock: 2587 MHz (Reference: 2572 MHz)
CUDA Cores: 4608
Memory: 8GB GDDR7, 28 Gbps, 128-bit
Bus Interface: PCI-E 5.0
Max Resolution: 7680x4320
Card Dimensions: 208 x 120 x 40 mm
Form Factor: 2-slot ATX
API Support: DirectX 12, OpenGL 4.6
Power Requirement: 650W PSU, 1x 8-pin connector
Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
RGB Lighting: No

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 8G provides a balanced combination of performance, cooling, and value for gamers seeking reliable 1080p and 1440p gaming experiences with ray tracing capabilities.

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
