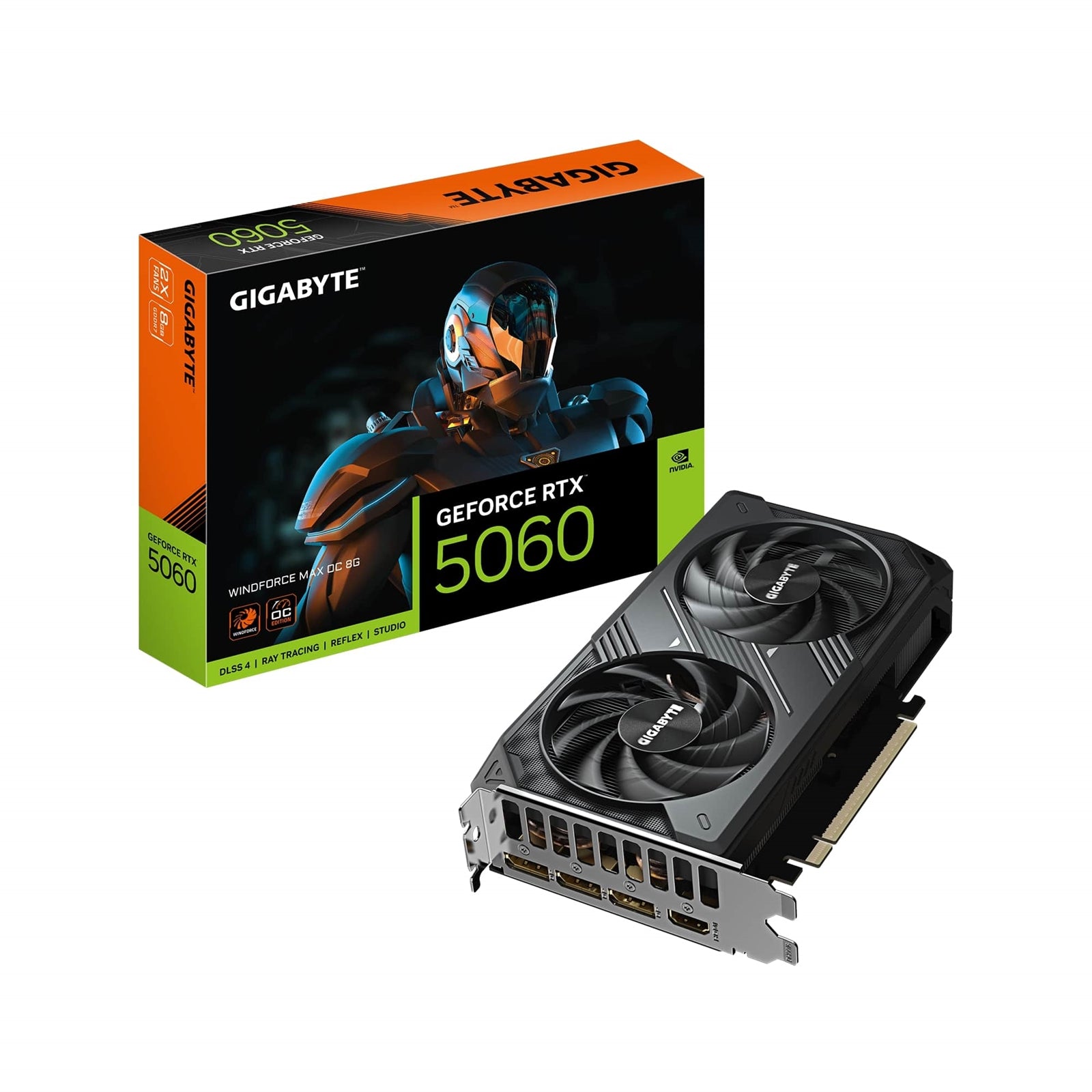

Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G Graphics Card

The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture. This graphics card features 8GB of GDDR7 memory across a 128-bit interface, 3840 CUDA cores, and a boosted core clock of 2512 MHz for superior frame rates in modern games.

Advanced Cooling Technology

The WINDFORCE cooling system combines multiple technologies for optimal thermal management. Hawk fans utilize aerodynamic blade designs inspired by eagle wings, reducing air resistance while increasing air pressure by 53.6% and air volume by 12.5%. The alternate spinning configuration reduces turbulence between adjacent fans for improved airflow pressure. Graphene nano lubricant extends fan bearing life by 2.1 times compared to standard lubricants while maintaining quieter operation.

Server-grade thermal conductive gel replaces traditional thermal pads on VRAM and MOSFETs, providing superior contact on uneven surfaces and resistance to deformation. Composite copper heat pipes and a direct-contact copper plate rapidly transfer heat from the GPU and VRAM to the extended heatsink, which enables screen cooling for enhanced heat dissipation.

NVIDIA Blackwell Architecture Features

Fifth-generation Tensor Cores deliver maximum AI performance with FP4 precision and DLSS 4 support. Fourth-generation Ray Tracing Cores handle complex mega geometry with ease. New streaming multiprocessors are optimized specifically for neural shaders, providing the foundation for next-generation gaming experiences.

Ultra Durable Components

Lower RDS(on) MOSFETs produce reduced switching resistance for faster charging and discharging at lower temperatures. Metal chokes retain energy longer than iron-core alternatives at high frequencies, reducing core energy loss and EMI interference. Lower ESR solid capacitors ensure superior electronic conductivity for enhanced system performance and extended lifespan.

Display Connectivity

Three DisplayPort 2.1b outputs and one HDMI 2.1b port support up to 7680x4320 resolution with multi-view capability for up to four displays. The card measures 199mm x 116mm x 40mm and requires a single 8-pin power connector with a recommended 550W PSU.

GIGABYTE Control Center Software

The unified GIGABYTE CONTROL CENTER software provides real-time adjustment of clock speeds, voltage, fan modes, and power targets through an intuitive interface. Fine-tune your graphics card performance to match your specific gaming requirements.

Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
CORE CLOCK -2512 MHz (Reference card : 2497MHz)

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors - Optimized for neural shaders
Fourth-Gen Ray Tracing Cores - Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE
ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Graphics Processing
GeForce RTX 5060

Core Clock
2512 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=199 W=116 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: GeForce RTX
• Chipset: RTX5060
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
