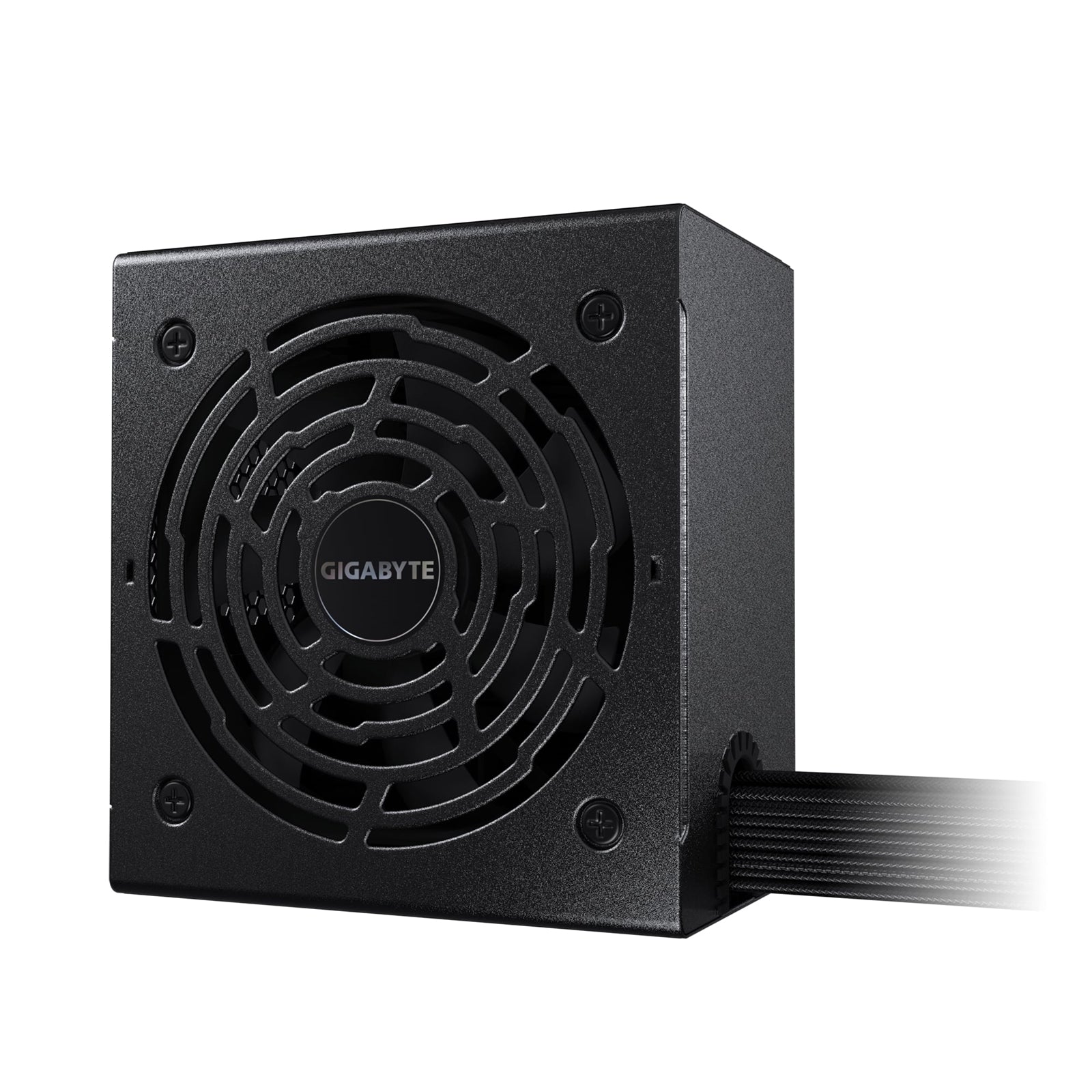

Gigabyte GP-P750BS-UK 750W Power Supply Unit

The Gigabyte GP-P750BS-UK delivers reliable 750W power output with 80 PLUS Bronze certification, achieving 88% efficiency at typical load. This ATX power supply is built for gaming rigs and workstations requiring stable power delivery and quiet operation.

Silent Cooling Performance

Equipped with a 120mm Fluid Dynamic Bearing (FDB) fan, this PSU maintains optimal cooling while operating quietly. The FDB fan technology reduces noise levels compared to standard sleeve bearing fans, with an MTBF rating exceeding 100,000 hours for long-term reliability.

Comprehensive Connectivity

The GP-P750BS-UK provides extensive connector options including a 20+4 pin ATX/MB connector, dual 4+4 pin CPU/EPS connectors, and seven 6+2 pin PCI-E connectors. This configuration supports multi-GPU setups and high-end graphics cards. Storage connectivity includes four dedicated SATA connectors plus three additional SATA and one peripheral connector, accommodating multiple drives and peripherals.

Advanced Protection Features

This power supply incorporates six protection mechanisms: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Over Temperature Protection (OTP). The single +12V rail design ensures stable voltage distribution across all components.

Technical Specifications

Model:
GP-P750BS-UK

Dimensions:
150 x 140 x 86 mm

Type:
ATX 12V

PFC:
Active PFC (>0.9 typical)

Input Voltage:
200-240V AC

Input Current:
6A

Input Frequency:
50-60Hz

Output Capacity:
750W

Efficiency:
80 PLUS Bronze (88% at typical load)

MTBF:
>100,000 hours

Fan Type:
120mm Fluid Dynamic Bearing (FDB)

Protection Features:
OVP, OPP, SCP, UVP, OCP, OTP

Power Good Signal:
100-150ms

Hold Up Time:
>16ms

Cable Type:
Soft-textured embossed cables

Connectors:
ATX/MB: 20+4 Pin x1 (600mm)
CPU/EPS: 4+4 Pin x2 (600mm + 150mm)
PCI-E: 6+2 Pin x7 (500mm + 150mm x2)
SATA: x4 (500mm + 150mm + 150mm + 150mm)
SATA + Peripheral: x3 + x1 (500mm + 150mm + 150mm + 150mm)

Warranty:
3 years

• Wattage: 750W
• Size/Version: ATX
• Modular: No
• SATA Connections: 7
• Certification: Bronze
• Colour: Black
