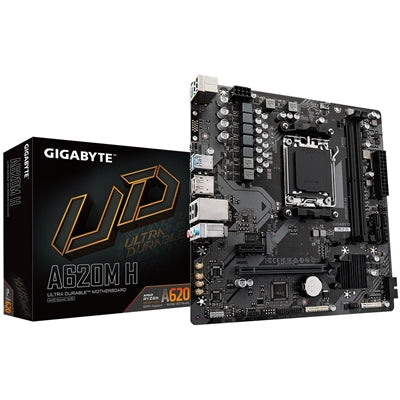

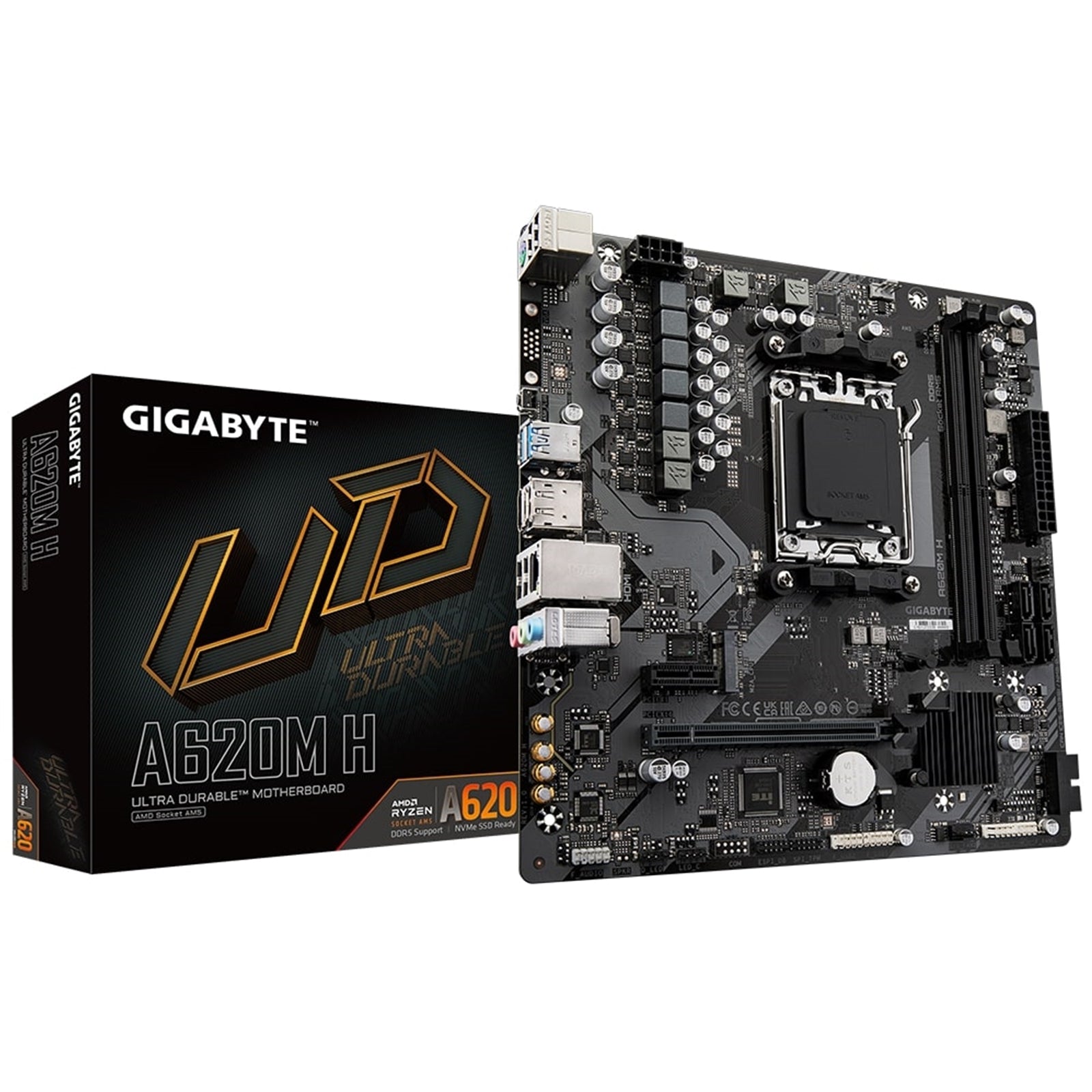

Gigabyte A620M H Ultra Durable AM5 Motherboard

The Gigabyte A620M H (rev. 1.0) delivers reliable performance for AMD Ryzen 7000 and 8000 series processors in a compact Micro-ATX form factor. Built with a 5+2+2 phases digital VRM solution featuring low RDS(on) MOSFETs, this motherboard provides stable power delivery for modern AMD AM5 socket CPUs.

DDR5 Memory Support with EXPO and XMP

Equipped with 2x DDR5 DIMM slots supporting up to 96GB of system memory, this motherboard handles DDR5 speeds up to 6400 MT/s (OC). Dual support for AMD EXPO and Intel XMP memory profiles ensures maximum compatibility with overclocking memory modules. The DDR5 Auto Booster feature automatically increases native frequency to 5000MHz under heavy loads. Shielded memory routing protects signal integrity by placing all memory traces under PCB inner layers.

Storage and Expansion Options

The A620M H includes 1x M.2 Socket 3 connector supporting PCIe 4.0 x4 SSDs for high-speed storage. Four SATA 6Gb/s connectors provide additional storage capacity with RAID 0, 1, and 10 support for both NVMe and SATA devices. The PCIe x16 slot features EZ-Latch quick release design for easy graphics card installation and removal, supporting PCIe 4.0 depending on your processor.

Display and Connectivity

Integrated graphics support includes 1x DisplayPort (3840x2160@144Hz) and 1x HDMI port (4096x2160@60Hz), enabling up to 3 simultaneous displays. Realtek GbE LAN with bandwidth management ensures stable network performance. USB connectivity includes 2x USB 3.2 Gen 1 ports and multiple USB 2.0 ports across back panel and internal headers.

Smart Fan 6 Cooling Control

Smart Fan 6 technology provides precise thermal management with multiple temperature sensors and hybrid fan headers. Each header supports up to 24W (12V x 2A) with over-current protection, accommodating PWM/DC fans and water cooling pumps. Fan Stop feature allows complete fan shutdown below specified temperatures, while dual curve mode offers slope or stair configurations for different cooling scenarios.

Enhanced Audio and BIOS Features

High-end audio capacitors and Audio Noise Guard technology separate sensitive analog components from potential PCB-level interference, delivering clear sound quality. Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card—simply save the BIOS file to USB, press the dedicated button, and update.

Technical Specifications

• Socket: AM5
• CPU Compatibility: AMD Ryzen 7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe4.0 x 4
• USB C: No

The Gigabyte A620M H motherboard combines essential features with reliable build quality, making it suitable for budget-conscious AMD AM5 platform builds requiring DDR5 support and PCIe 4.0 storage capabilities.
