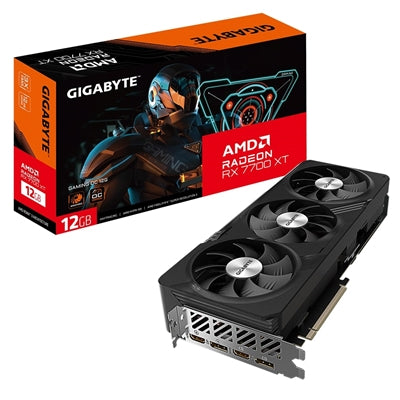

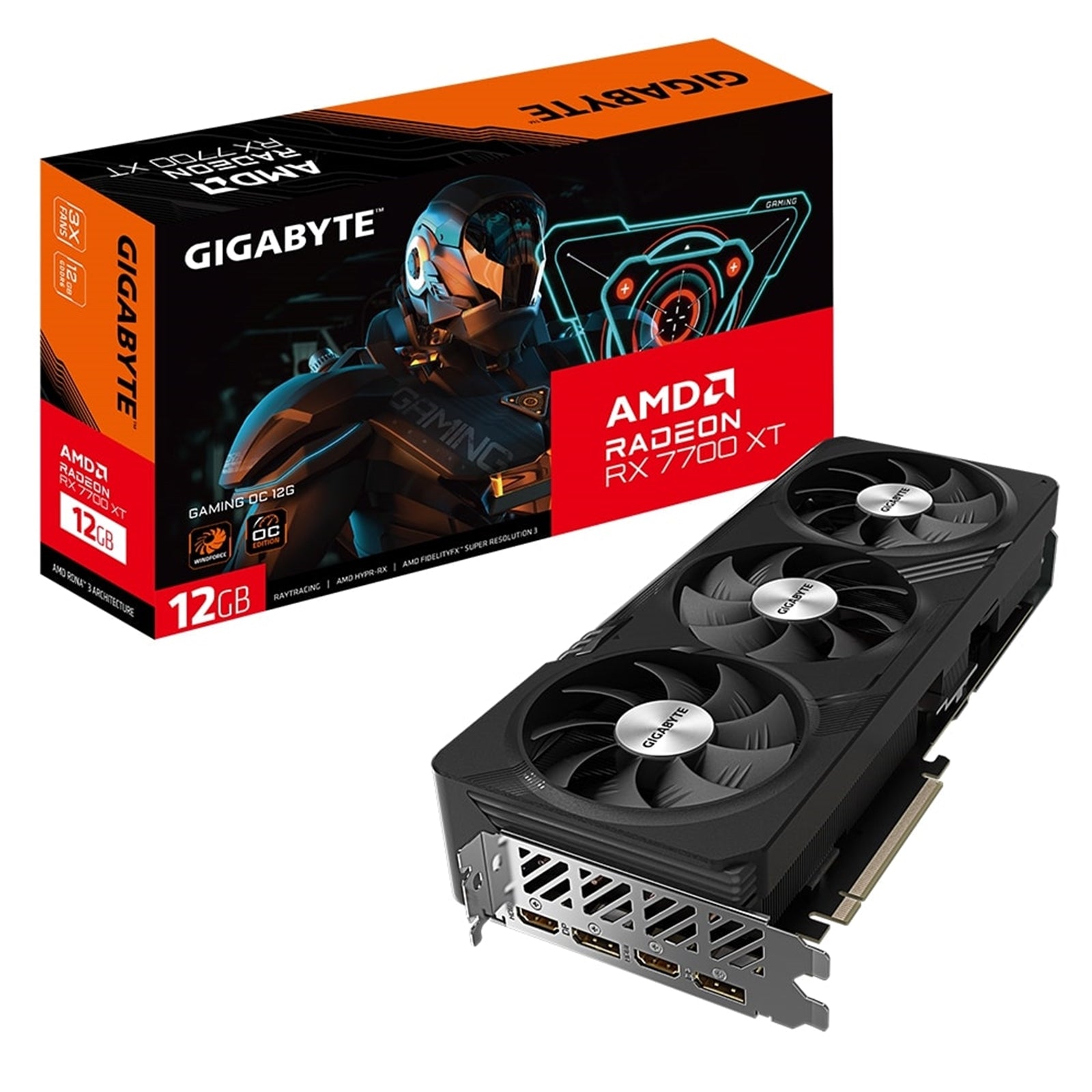

Gigabyte AMD Radeon RX 7700 XT Gaming OC Graphics Card

The Gigabyte Radeon RX 7700 XT Gaming OC delivers exceptional 1440p gaming performance with 12GB of GDDR6 memory and an overclocked boost clock of 2599 MHz. Built with 3456 stream processors and a 192-bit memory interface, this graphics card handles demanding AAA titles and content creation workflows with ease.

Advanced WINDFORCE Cooling Technology

The triple 90mm unique blade fan design features alternate spinning technology that reduces turbulence between adjacent fans while increasing airflow pressure. Each fan blade incorporates a triangular edge that splits airflow and guides it smoothly through 3D stripe curves for optimal heat dissipation. The 3D Active Fan system provides semi-passive cooling, keeping fans off during low-load scenarios for silent operation.

Seven composite copper heat pipes work in conjunction with a large copper plate that directly contacts the GPU, rapidly transferring heat from the GPU and VRAM to the extended heatsink. The screen cooling design allows air to pass through the heatsink for superior thermal management. Graphene nano lubricant extends fan bearing life by 2.1 times compared to standard lubricants while maintaining quieter operation.

Premium Build Quality and Features

Ultra Durable certification ensures this graphics card uses highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs with over-temperature protection. The friendly PCB design features fully automated production that eliminates sharp solder protrusions for safer installation. A protective metal backplate adds structural rigidity and aesthetic appeal.

RGB Fusion support allows customization of lighting effects to match your build. Dual BIOS provides flexibility for performance tuning and recovery options. The card measures 302mm x 130mm x 56mm and requires two 8-pin power connectors with a recommended 700W PSU.

Connectivity and Display Support

Equipped with two DisplayPort 2.1 and two HDMI 2.1 outputs, the RX 7700 XT Gaming OC supports up to four displays simultaneously with a maximum digital resolution of 7680x4320. DirectX 12 Ultimate and OpenGL 4.6 compatibility ensure broad game and application support. The PCIe 4.0 interface delivers high-bandwidth connectivity with modern motherboards.

KEY FEATURES
Powered by Radeon RX 7700 XT
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate

CORE CLOCK
Boost Clock : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock : up to 2276 MHz (Reference card: 2171 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specification

Graphics Processing
Radeon RX 7700 XT

Core Clock
Boost Clock : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock : up to 2276 MHz (Reference card: 2171 MHz)

Stream Processors
3456

Memory Clock
18 Gbps

Memory Size
12 GB

Memory Type
GDDR6

Memory Bus
192 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=302 W=130 H=56 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
700W

Power Connectors
8 Pin*2

Output
DisplayPort 2.1 x 2
HDMI 2.1 x 2

Accessories
Quick guide

• Chipset Manufacturer: AMD
• Chipset Series: RX
• Chipset: RX 7700 XT
• Form Factor: ATX
• Memory: 12GB
• Fans: 3
• RGB: Yes
