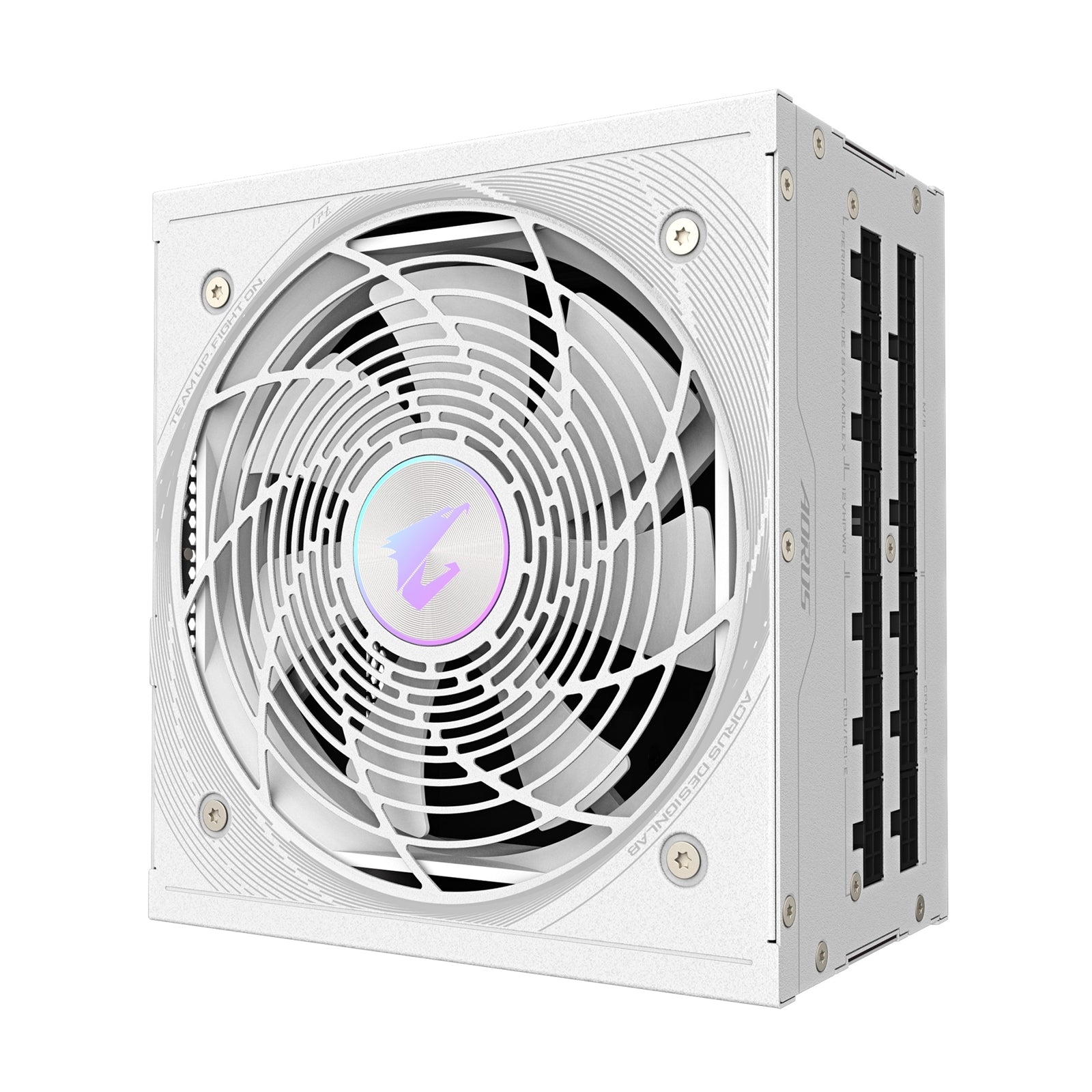

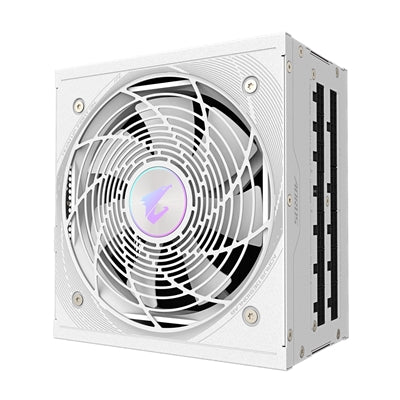

GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular Power Supply

The AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE (GP-AE1000PM PG5) delivers 1000W of reliable power for high-performance PC builds. This ATX 3.0 compliant power supply features 80 PLUS Platinum certification, achieving 92% efficiency at 50% load to minimize power waste and heat generation.

PCIe 5.0 Ready with Native 16-Pin Connector

Equipped with a native 16-pin cable, this PSU supports the latest PCIe Gen 5.0 graphics cards without adapters. The fully modular design includes 6 PCIe 6+2 pin connectors for multi-GPU configurations, plus dual CPU/EPS 4+4 pin connectors for demanding processors.

Compact 140mm Design

At just 140mm in length, this power supply fits space-constrained cases while delivering full 1000W capacity. The compact form factor doesn't compromise on performance, making it suitable for ITX and compact ATX builds.

Quiet 120mm FDB Fan

The 120mm Smart Fluid Dynamic Bearing fan utilizes oil film shock absorption technology to reduce operational noise and extend lifespan. This cooling solution maintains optimal temperatures while keeping your system quiet during intensive workloads.

Premium Japanese Capacitors

Built with 100% Japanese capacitors, this power supply ensures consistent performance and long-term reliability. The high-quality components contribute to stable power delivery across all voltage rails.

Single +12V Rail Architecture

The powerful single +12V rail design provides optimal power output and stability, particularly beneficial for overclocking scenarios. This configuration ensures maximum compatibility with modern hardware while maintaining consistent voltage delivery.

Comprehensive Protection Features

Multiple protection mechanisms safeguard your components: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Temperature Protection (OTP), and Over Current Protection (OCP).

Specifications

Output Power: 1000W
Efficiency: 80 PLUS Platinum
Form Factor: ATX 3.0
Modular Design: Fully Modular
Fan Type: 120mm Smart Fluid Dynamic Bearing (FDB) Fan
Protection: OVP, OPP, SCP, UVP, OTP, OCP
Cable Type: High-quality, native 16-pin cable for PCIe Gen 5.0 compatibility
Capacitors: 100% Japanese capacitors
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

Connections

ATX/MB 20+4 Pin: 1 (650mm)
CPU/EPS 4+4 Pin: 2 (700mm each)
PCIe 16 Pin: 1 (700mm, for PCIe 5.0 graphics cards)
PCIe 6+2 Pin: 6 - 2 (650mm + 150mm) 4 (750mm)
SATA: 8 - 4 (600mm + 150mm) 4 (150mm)
4 Pin Peripheral: 4 - 2 (500mm + 150mm) 2 (150mm)

Warranty: 10 years

• Wattage: 1000W
• Size/Version: ATX 3.0
• Modular: Fully
• SATA Connections: 8
• Certification: Platinum
• Colour: White
