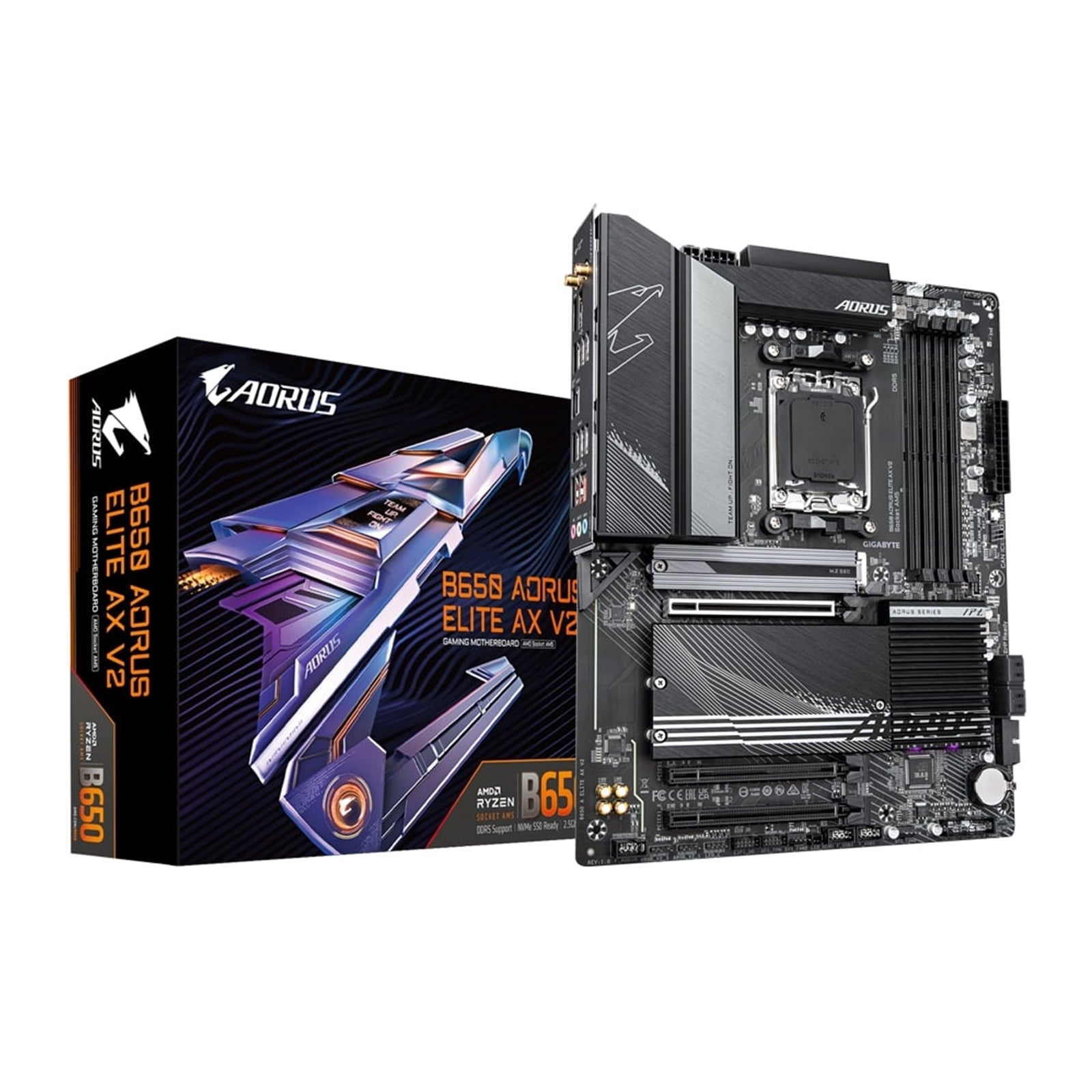

Gigabyte B650 AORUS ELITE AX V2 AMD AM5 ATX Motherboard

The B650 AORUS ELITE AX V2 delivers professional-grade performance for AMD Ryzen 7000 and 8000 Series processors. Built on the AMD B650 chipset with Socket AM5, this ATX motherboard combines robust power delivery, advanced thermal management, and cutting-edge connectivity for gaming and content creation workstations.

Twin Digital VRM Power Design

Equipped with a Twin 12+2+2 Phases Digital VRM solution, this motherboard provides stable high-power delivery essential for overclocking and sustained heavy workloads. The all-digital power design ensures consistent performance under demanding conditions, while advanced thermal heatsinks maintain VRM stability during extended gaming sessions.

DDR5 Memory Performance

Four DDR5 DIMM slots support up to 192GB of system memory with speeds reaching 8000 MT/s (OC). The motherboard features shielded memory routing within PCB inner layers and daisy-chained topology to eliminate stub effects. DDR5 Auto Booster provides one-click optimization from native 4800 to 5000 MT/s, while AMD EXPO and Intel XMP 3.0 profiles enable instant performance tuning.

High-Speed Storage Connectivity

Three M.2 sockets deliver maximum storage flexibility: one PCIe 5.0 x4 slot (M2A_CPU) for next-generation SSDs, plus two PCIe 4.0 x4 slots (M2B_CPU and M2C_SB) supporting 25110/2580 form factors. M.2 Thermal Guard heatsinks maintain optimal SSD temperatures. The EZ-Latch quick-release mechanism enables tool-free installation. Four SATA 6Gb/s connectors with RAID 0/1/10 support provide additional storage options.

Advanced Networking

Realtek 2.5GbE LAN delivers wired network performance up to 2.5 Gbps. The integrated Realtek Wi-Fi 6E RTL8852CE module supports tri-band wireless (2.4/5/6 GHz) with 11ax 160MHz channels and Bluetooth 5.3 connectivity. Dual SMA antenna connectors ensure reliable wireless signal strength.

Comprehensive USB Connectivity

Rear I/O features USB Type-C with USB 3.2 Gen 2 (10Gb/s), two red USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports, and four USB 2.0 ports. Internal headers include USB Type-C with USB 3.2 Gen 2x2 support (20Gb/s) for front panel connectivity, plus additional USB 3.2 Gen 1 and USB 2.0 headers.

Display and Expansion

Integrated graphics support includes DisplayPort 1.4 (3840x2160@144Hz) and HDMI (4096x2160@60Hz). One PCIe x16 slot supports PCIe 4.0 x16/x8/x4 depending on CPU, with two additional PCIe 3.0 x1 slots for expansion cards. Realtek Audio CODEC provides 7.1-channel HD audio output.

Smart Thermal Management

Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers with FAN STOP capability. Six fan headers (CPU, CPU/pump, three system, one system/pump) enable precise cooling control for air and liquid cooling configurations.

Q-Flash Plus BIOS Update

Update BIOS firmware without installing CPU, memory, or graphics card using the dedicated Q-Flash Plus button on the rear I/O panel. The 256 Mbit flash stores AMI UEFI BIOS with support for Windows 11 and Windows 10 64-bit.

B650 AORUS ELITE AX V2

AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4 x DIMMs with AMD EXPO & Intel XMP Memory Module Support
Superfast Storage: 1 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E
Extended Connectivity: HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Robust VRM Design
Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Digital Twin VRM Design
ensures stable high-power delivery for advanced overclocking.

Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.

BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster
one click to boost native DDR5-4800 to 5000

AMD EXPO/ Intel XMP 3.0 User Profile
optimizes memory settings and achieve the best performance for the system

High Bandwidth
one click to increase DDR5 bandwidth

Low Latency
one click to shorten DDR5 latency

Hardware Craftsmanship
Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Shielded Memory Routing
Memory routing is shielded within the PCB's inner layer to protect against interference.

Daisy-Chained Routing
Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Connectivity versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Elevating Performance Together
AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

Specification

CPU
AMD Socket AM5, support for:
AMD Ryzen 7000/ Ryzen 8000 Series Processors

Chipset
AMD B650

Memory
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

1x x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

• Socket: AM5
• CPU Compatibility: AMD Ryzen
• Chipset: AMD B650
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: NVMe / SATA
• USB C: Yes
