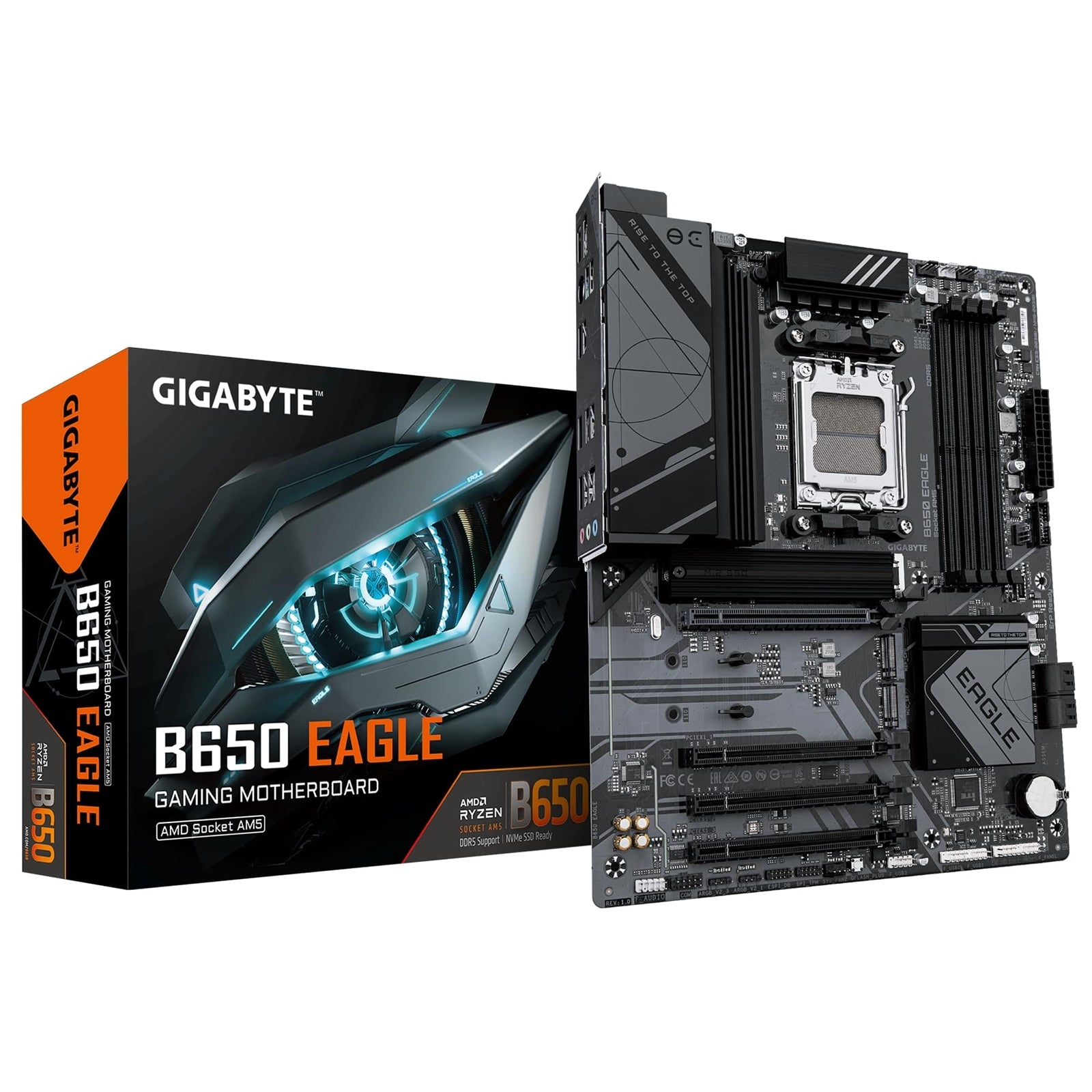

Gigabyte B650 EAGLE AMD AM5 ATX Motherboard

The Gigabyte B650 EAGLE delivers robust performance for AMD Ryzen 7000, 8000, and 9000 Series processors. Built on the AMD B650 chipset with AM5 socket compatibility, this ATX motherboard provides a solid foundation for modern PC builds with advanced connectivity and thermal management.

DDR5 Memory and Overclocking Support

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 7600MHz through overclocking. AMD EXPO and Intel XMP profiles enable easy memory optimization. The dual-channel architecture ensures efficient data transfer with support for non-ECC unbuffered memory modules in 1Rx8/2Rx8/1Rx16 configurations.

Advanced Power Delivery

The 12+2+2 phases digital VRM solution provides stable power delivery to the processor. Fully covered MOSFET heatsinks maintain optimal operating temperatures under sustained loads. This design ensures consistent performance during intensive workloads and gaming sessions.

Storage and Expansion

Three M.2 connectors offer flexible storage configurations: one PCIe 5.0 x4 slot (with Ryzen 7000 processors), plus two additional PCIe 4.0 M.2 slots supporting 22110/2280 form factors. M.2 Thermal Guards prevent thermal throttling on high-performance SSDs. Four SATA 6Gb/s ports provide additional storage connectivity with RAID 0, 1, and 10 support for both NVMe and SATA devices.

Connectivity Options

Rear I/O includes one DisplayPort supporting 3840x2160@144Hz, one HDMI port at 4096x2160@60Hz, dual USB 3.2 Gen 2 Type-A ports, and one USB-C port with USB 3.2 Gen 1 support. Realtek GbE LAN with bandwidth management optimizes network performance. Internal headers provide additional USB 3.2 Gen 1 Type-C and multiple USB 2.0/3.2 expansion options.

EZ-Latch and Q-Flash Plus

The EZ-Latch PCIe x16 slot features quick-release design for tool-free graphics card installation and removal. Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card—simply connect power, insert a formatted USB drive with the BIOS file, and press the Q-Flash Plus button.

Smart Fan 6 Cooling Control

Smart Fan 6 technology supports PWM and DC fans plus water cooling pumps with up to 24W per header. Seven-point fan curves with slope or stair modes provide precise temperature management. Fan Stop functionality allows complete fan shutdown below specified temperatures. Multiple temperature sensors and hybrid fan headers ensure optimal cooling performance.

Audio and Additional Features

Realtek Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations. High-end audio capacitors and Audio Noise Guard technology separate analog audio components from digital noise at the PCB level. Three addressable RGB Gen2 LED headers and one RGB LED header enable lighting customization.

Technical Specifications

• Socket: AM5
• CPU Compatibility: AMD Ryzen 7000/8000/9000
• Chipset: AMD B650
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory Slots: 4x DDR5 (up to 256GB, 7600MHz OC)
• M.2 Slots: 3x (1x PCIe 5.0, 2x PCIe 4.0)
• USB-C: 2x ports
• Display: 1x DisplayPort, 1x HDMI
• LAN: Realtek GbE (1Gbps)
• OS Support: Windows 11/10 64-bit
