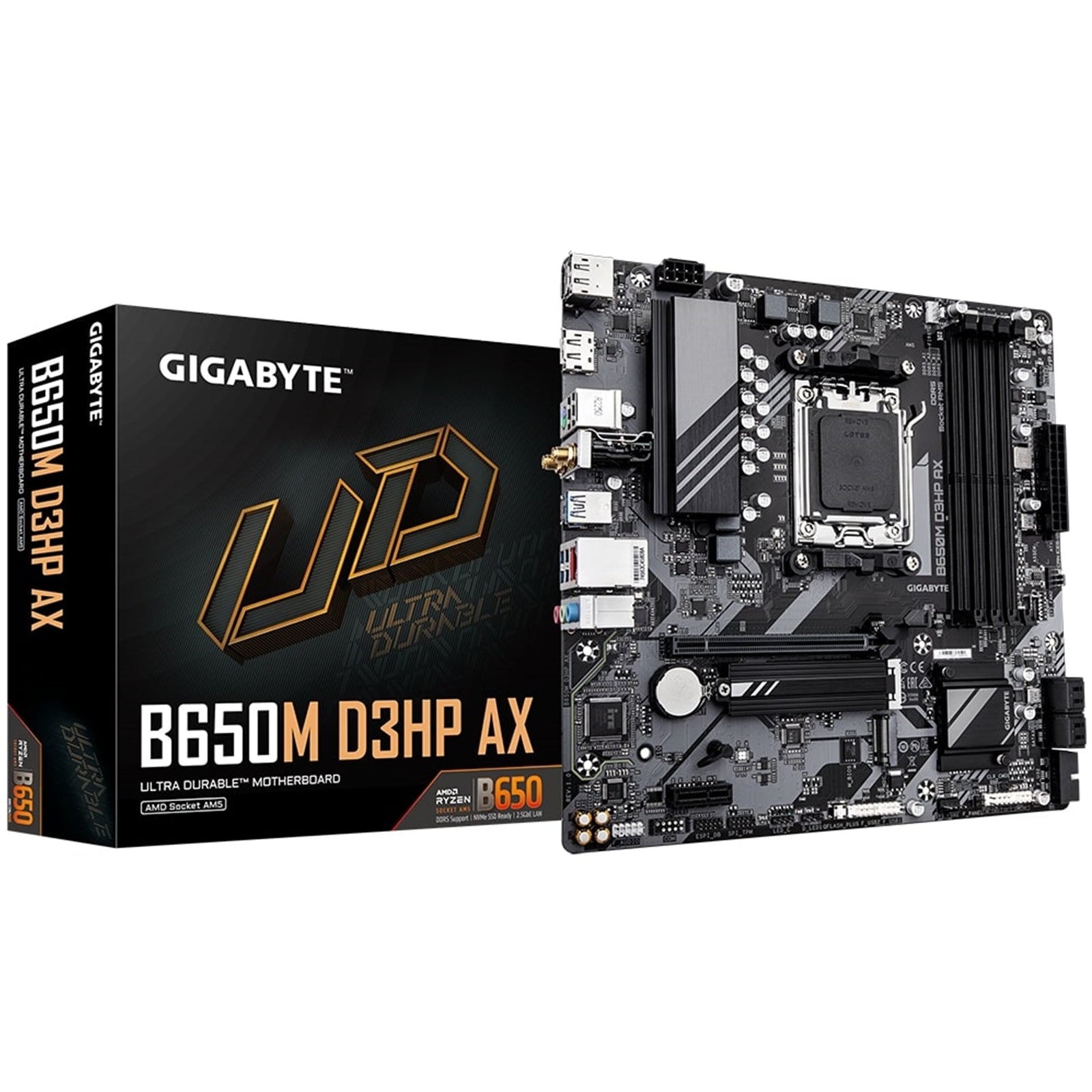

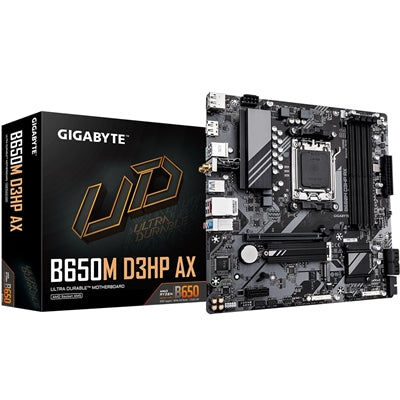

Gigabyte B650M D3HP AX AMD AM5 Motherboard

The Gigabyte B650M D3HP AX delivers reliable performance for AMD Ryzen 7000 series processors in a compact Micro-ATX form factor. Built with Ultra Durable components and a 5+2+2 phases digital VRM solution, this motherboard provides stable power delivery for demanding workloads and gaming sessions.

DDR5 Memory and Storage

Four DDR5 DIMM slots support up to 192GB of memory with speeds reaching 7600 MT/s and beyond through AMD EXPO and Intel XMP overclocking profiles. Dual M.2 sockets with PCIe 4.0 x4 support deliver fast storage performance, while four SATA 6Gb/s connectors provide additional expansion options. RAID 0, 1, and 10 configurations are supported for both NVMe and SATA devices.

Connectivity and Networking

Realtek WiFi 6E (802.11ax) with Bluetooth 5.3 provides wireless speeds up to 2.4Gbps across 2.4GHz, 5GHz, and the new 6GHz bands. The Realtek 2.5GbE LAN chip ensures low-latency wired connections for competitive gaming and large file transfers. Multiple USB options include two USB Type-C ports with USB 3.2 Gen 1 support, three USB 3.2 Gen 1 Type-A ports, and additional USB 2.0 connectivity.

Display Options

Integrated graphics support includes two DisplayPorts capable of 3840x2160@144Hz and one HDMI 2.1 port supporting 4096x2160@60Hz. Triple-display configurations are supported simultaneously, with compatibility depending on your AMD Ryzen processor's integrated graphics capabilities.

Cooling and Ease of Use

Smart Fan 6 technology offers precise control over system cooling with multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans up to 24W per header. The intuitive interface allows custom fan curves with up to seven control points, fan stop functionality, and dual slope/stair modes.

Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card—simply connect power, insert a USB drive with the renamed BIOS file, and press the dedicated button. The EZ-Latch design on the PCIe x16 slot simplifies graphics card removal. Audio Noise Guard technology isolates sensitive audio components from PCB-level interference, while high-end audio capacitors deliver clear sound through the Realtek audio codec supporting up to 7.1-channel configurations.

Technical Specifications

Socket AM5 for AMD Ryzen 7000 series processors, AMD B650 chipset, Micro-ATX form factor (24.4cm x 24.4cm), one PCIe 4.0 x16 slot, one PCIe 3.0 x1 slot, Windows 11 and Windows 10 64-bit support.
