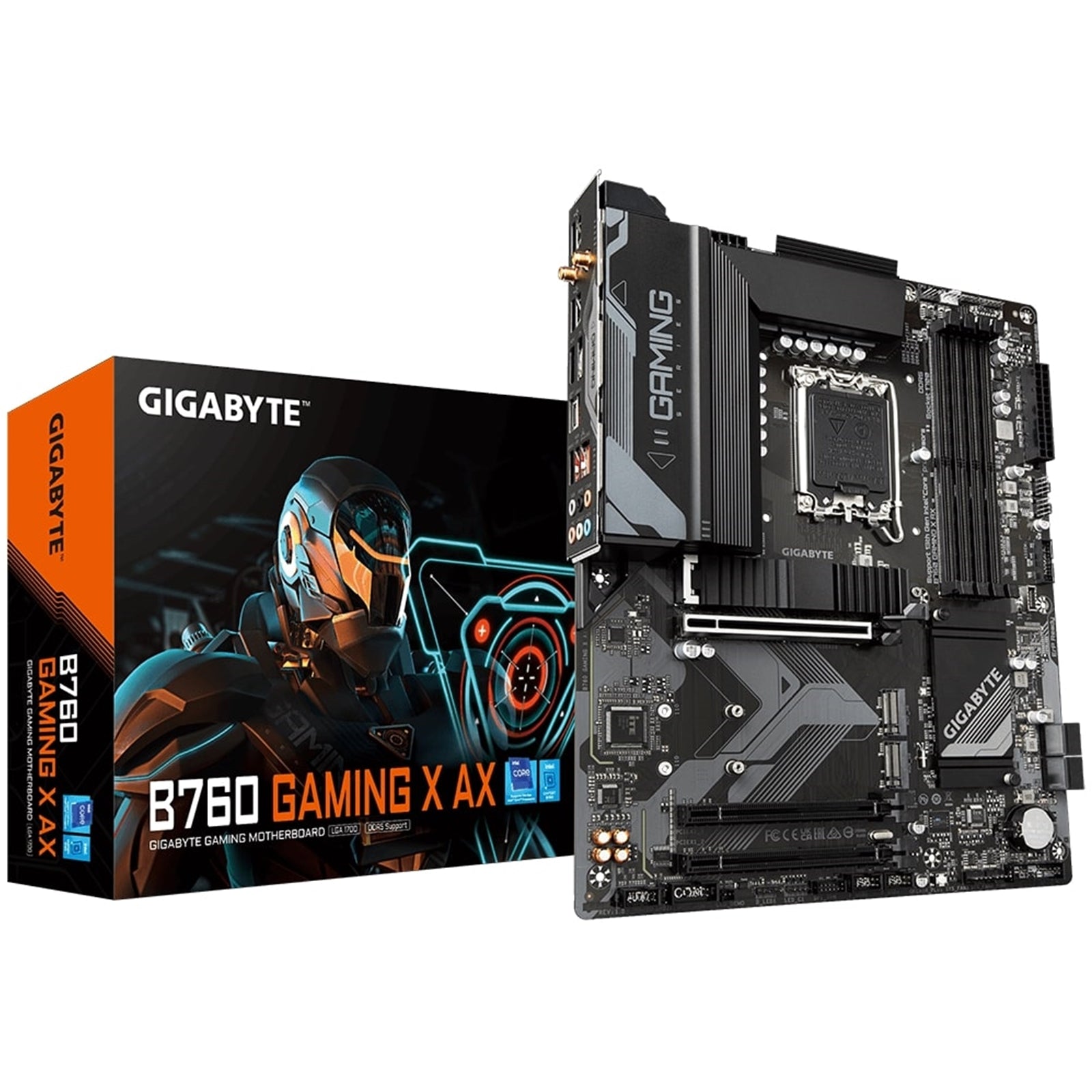

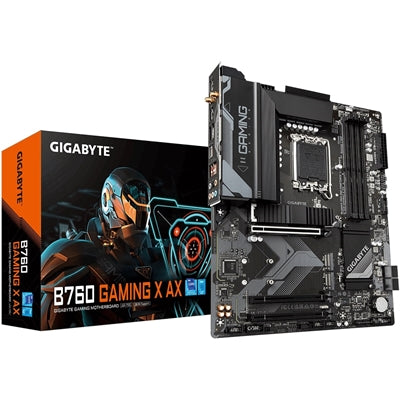

Gigabyte B760 GAMING X AX Intel LGA1700 ATX Motherboard

The Gigabyte B760 GAMING X AX delivers robust performance for Intel 12th, 13th, and 14th generation processors with its LGA1700 socket design. Built on the Intel B760 chipset, this ATX motherboard provides the foundation for high-performance gaming and productivity systems.

DDR5 Memory and Storage Capabilities

Equipped with 4 DDR5 DIMM slots supporting up to 192GB of system memory with speeds reaching 7600 MT/s (O.C.), this motherboard handles demanding applications with ease. The dual-channel architecture ensures optimal memory bandwidth. Three M.2 PCIe 4.0 x4 sockets provide ultra-fast NVMe storage options, with M.2 Thermal Guard technology preventing thermal throttling during intensive workloads. Four additional SATA 6Gb/s connectors offer expanded storage flexibility.

Power Delivery and Thermal Management

The hybrid 8+1+1 phases digital VRM solution ensures stable power delivery to the CPU, even under sustained loads. Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers with FAN STOP capability, allowing precise cooling control. Multiple fan headers support up to 24W (12V x 2A) with over-current protection for PWM/DC fans and water cooling pumps.

Advanced Connectivity

Wi-Fi 6E 802.11ax wireless provides tri-band connectivity across 2.4GHz, 5GHz, and 6GHz frequencies with speeds up to 2.4Gbps, while Bluetooth 5.2/5.3 ensures reliable peripheral connections. The Realtek 2.5GbE LAN chip delivers wired network speeds up to 2.5Gbps. USB connectivity includes USB 3.2 Gen 2 Type-C with 10Gbps transfer speeds on both front and rear panels, plus multiple USB 3.2 Gen 1 and USB 2.0 ports.

Display and Audio Features

Integrated graphics support includes one DisplayPort (4096x2304@60Hz) and one HDMI port (4096x2160@60Hz). The Realtek audio codec supports up to 7.1-channel high-definition audio with S/PDIF output, enhanced by high-end audio capacitors and audio noise guard technology for clear sound reproduction.

Expansion and Convenience

The PCIe 4.0 x16 slot features EZ-Latch quick-release design for tool-free graphics card installation. Two additional PCIe 3.0 x1 slots provide expansion options. Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card. The fitted I/O shield streamlines installation.

Technical Specifications

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel B760
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 4.0 x4
• USB C: Yes

Compatible with Windows 11 and Windows 10 64-bit operating systems. Dimensions: 30.5cm x 24.4cm.
