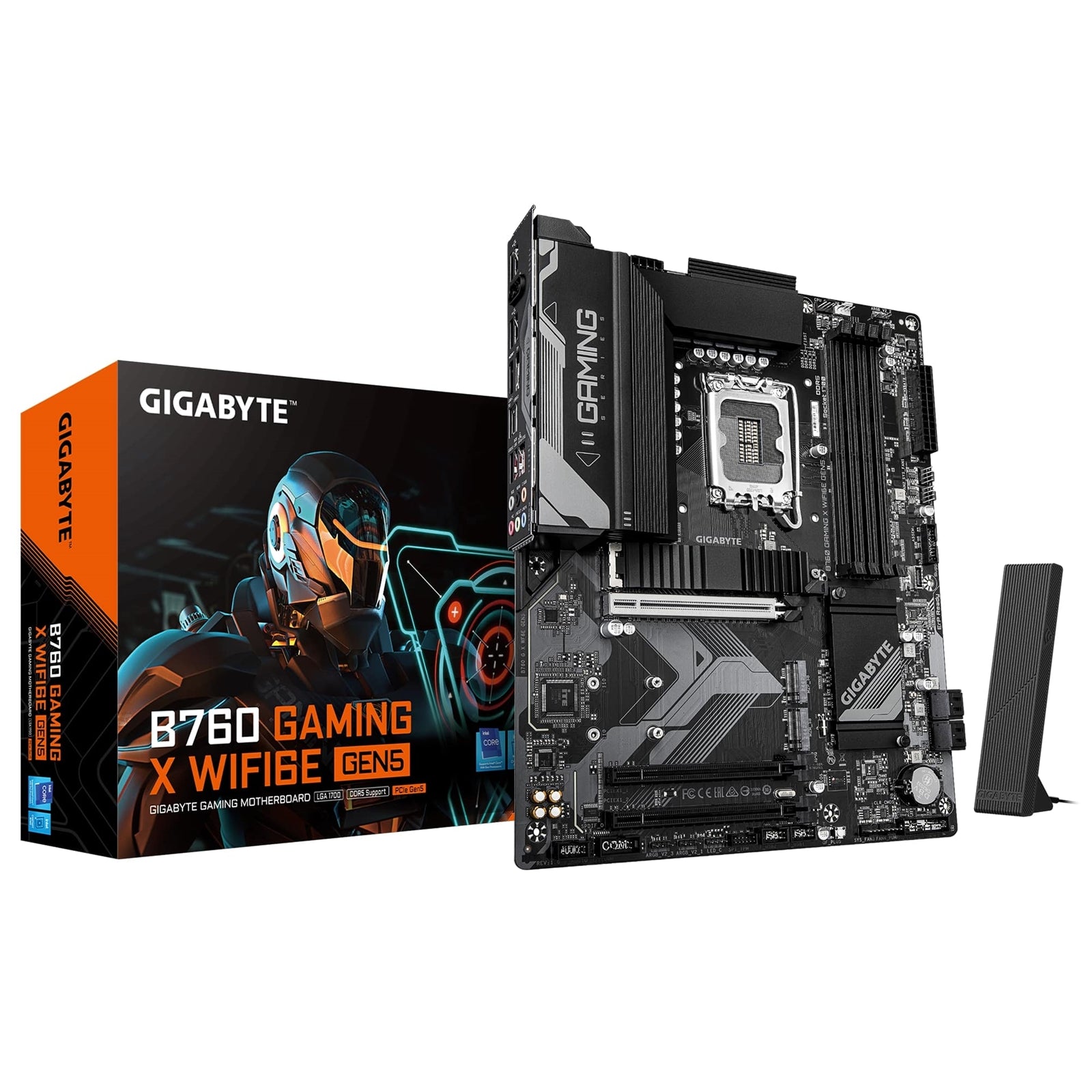

Gigabyte B760 GAMING X WiFi 6E Motherboard - LGA1700 Socket

The Gigabyte B760 GAMING X delivers PCIe Gen5 performance for Intel 12th, 13th, and 14th generation processors on the LGA1700 platform. This ATX motherboard features PCIe 5.0 x16 slot with 32 GT/s data transfer rates, doubling the bandwidth of PCIe 4.0 for high-performance graphics cards and storage devices.

DDR5 Memory and Storage Configuration

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 5600 MT/s on compatible processors. The dual-channel architecture with XMP profile support ensures optimal memory performance. Three M.2 sockets provide PCIe 4.0 x4 connectivity for NVMe SSDs in 22110/2280 form factors, complemented by four SATA 6Gb/s ports with RAID 0/1/5/10 support.

Thermal Management and Power Delivery

The hybrid 8+1+1 phase VRM solution with VRM Thermal Armor Advanced provides stable power delivery for processor overclocking. M.2 Thermal Guards cover all three M.2 slots, preventing thermal throttling during sustained storage operations. High-coverage MOSFET heatsinks with integrated molding improve thermal efficiency through enhanced airflow design.

Connectivity Features

Intel WiFi 6E AX210 module supports 2.4/5/6 GHz bands with Bluetooth 5.3. The WiFi Compass utility auto-detects optimal antenna positioning, while the WiFi EZ-Plug simplifies antenna installation. Realtek 2.5GbE LAN provides wired networking with speeds up to 2.5 Gbps. USB connectivity includes front USB Type-C with 10Gb/s Gen 2 support, rear USB 3.2 Gen 2 Type-A port, and multiple USB 3.2 Gen 1 and USB 2.0 ports.

Display and Audio

Integrated graphics support includes one DisplayPort (4096x2304@60Hz) and one HDMI port (4096x2160@60Hz). Realtek Audio CODEC delivers high-definition audio with up to 7.1-channel support and S/PDIF output capability.

Installation and Customization

EZ-Latch quick-release design on the PCIe 5.0 x16 slot simplifies graphics card installation. SMD PCIe 5.0 armor reinforces the primary slot for heavy graphics cards. Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers with fan stop functionality. Q-Flash Plus enables BIOS updates without CPU, memory, or graphics card installation. RGB Fusion 2.0 supports three addressable Gen2 LED headers and one standard RGB header for lighting customization.

Technical Specifications

• Socket: LGA1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel B760
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory Slots: 4x DDR5 (up to 256GB)
• M.2 Slots: 3x PCIe 4.0 x4
• Expansion: 1x PCIe 5.0 x16, 2x PCIe 3.0 x1
• Network: 2.5GbE LAN, WiFi 6E, Bluetooth 5.3
• USB: Type-C Gen 2, Multiple USB 3.2/2.0 ports
• Operating System: Windows 11/10 64-bit
