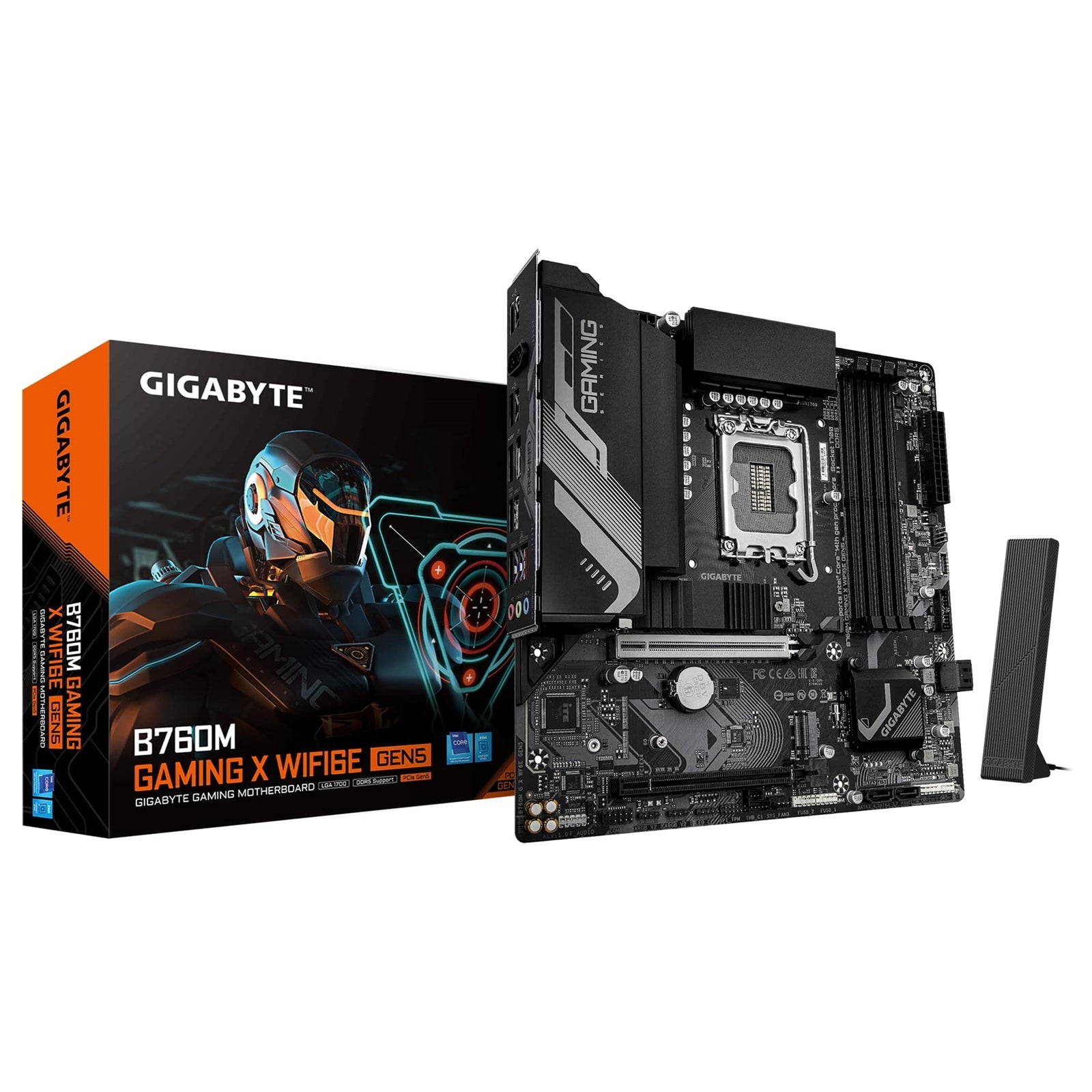

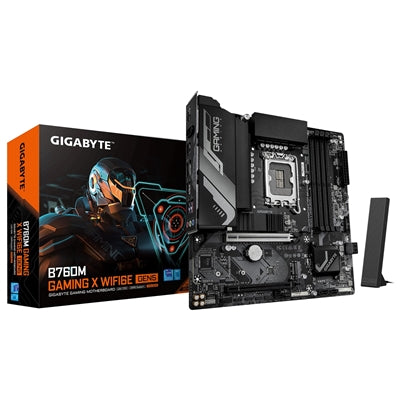

Gigabyte B760M GAMING X WiFi 6E - High-Performance Micro-ATX Motherboard

The Gigabyte B760M GAMING X WiFi 6E delivers exceptional performance for Intel 12th, 13th, and 14th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset, this motherboard combines PCIe Gen5 support with advanced connectivity and thermal management.

PCIe Gen5 and DDR5 Memory Support

Experience next-generation performance with PCIe 5.0 x16 slot delivering 32 GT/s data transfer rates—double that of PCIe 4.0. The board supports up to 256GB of DDR5 memory across 4 DIMM slots, with speeds up to 5600 MT/s on compatible Intel Core i9/i7 processors. XMP memory profiles ensure optimal performance tuning.

Advanced Thermal Design

The hybrid 8+1+1 phase VRM solution features high-coverage MOSFET heatsinks with integrated molding for improved thermal efficiency. M.2 Thermal Guards protect your NVMe drives during intensive workloads, while Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers provides intelligent cooling management with FAN STOP functionality.

Comprehensive Storage and Connectivity

Two M.2 PCIe 4.0 x4 connectors support high-speed NVMe SSDs up to 22110 form factor, complemented by four SATA 6Gb/s ports with RAID 0/1/5/10 support. The Realtek 2.5GbE LAN chip and Intel WiFi 6E AX210 module with Bluetooth 5.3 deliver ultra-fast wired and wireless networking across 2.4/5/6 GHz bands.

USB and Display Options

Front USB Type-C with USB 3.2 Gen 2 (10Gb/s) support, five USB 3.2 Gen 1 ports, and eight USB 2.0 ports provide extensive peripheral connectivity. Integrated graphics support includes HDMI 2.1 and DisplayPort outputs, both capable of 4K resolution at 60Hz.

User-Friendly Features

EZ-Latch PCIe slot design enables tool-free graphics card installation and removal. The WIFI EZ-Plug simplifies antenna installation, while WIFI Compass automatically detects optimal antenna positioning. Q-Flash Plus allows BIOS updates without CPU, memory, or graphics card installed. Addressable RGB and standard RGB headers support extensive lighting customization through Gigabyte Control Center.

Technical Specifications

• Socket: LGA1700
• CPU Support: Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron
• Memory: 4x DDR5 DIMM, up to 256GB, 5600 MT/s
• Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
• Expansion: 1x PCIe 5.0 x16, 1x PCIe 3.0 x4
• Audio: Realtek HD Audio, 7.1-channel
• Dimensions: 24.4cm x 24.4cm (Micro-ATX)

Compatible with Windows 11 and Windows 10 64-bit operating systems, the B760M GAMING X WiFi 6E provides a reliable foundation for gaming and productivity builds requiring compact dimensions without compromising features.
