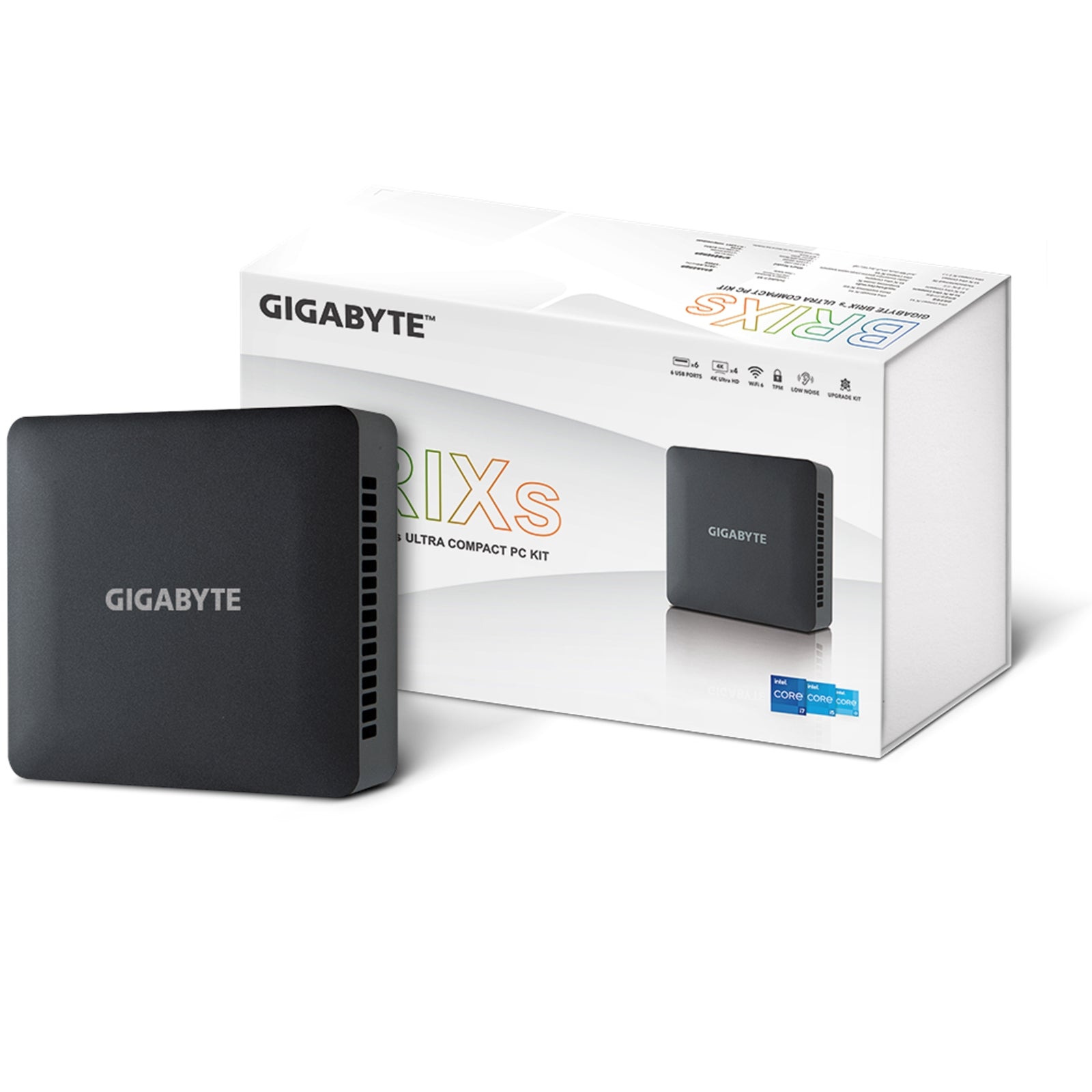

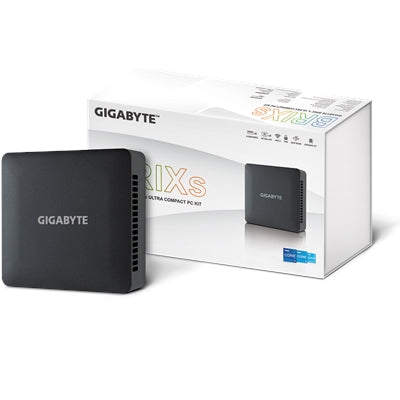

Gigabyte BRIX GB-BRI3H-1315 Barebone Mini PC

The Gigabyte BRIX GB-BRI3H-1315 barebone kit delivers powerful computing in a compact 124 x 120 x 49.7mm chassis. Powered by the 13th Gen Intel Core i3-1315U processor with 6 cores (2 Performance + 4 Efficiency cores), this mini PC barebone provides the foundation for a customized workstation that fits anywhere.

13th Gen Intel Core i3-1315U Performance

The Intel Core i3-1315U processor features hybrid architecture with 6 cores and 8 threads, reaching turbo frequencies up to 4.5GHz. With 10MB cache and 15W TDP, this processor balances performance and efficiency for multitasking, productivity applications, and multimedia workloads. Intel Iris Xe Graphics with 96 execution units at 1.25GHz handles 4K displays across multiple monitors.

Flexible Memory and Storage Configuration

Configure your system with dual DDR4 SO-DIMM slots supporting up to 64GB at 3200MHz. Storage options include one M.2 2280 slot supporting PCIe Gen4 x4 or SATA3 SSDs, plus one 2.5-inch bay for SATA3 HDD or SSD up to 9mm thick. This dual-storage design accommodates both fast NVMe boot drives and high-capacity data storage.

Multi-Display Connectivity

Connect up to four 4K displays simultaneously with dual HDMI 2.1 ports and dual USB 3.2 Gen2 Type-C ports with DisplayPort 1.4a alternate mode. All outputs support 3840x2160 resolution at 60Hz with HDCP 2.2 compliance, ideal for workstations, digital signage, or home office setups requiring extensive screen real estate.

Modern Connectivity Options

The BRIX includes 2.5GbE LAN powered by Intel i226V controller for high-speed wired networking. Intel AX203 provides Wi-Fi 6 (802.11ax) dual-band wireless and Bluetooth 5.2. Front panel features dual USB 3.2 Gen2 Type-A, dual USB 2.0 Type-A, and combo audio jack. Rear panel adds the Type-C ports, HDMI outputs, and Kensington lock slot for security.

Compact Design with VESA Mounting

The curved chassis design maintains a small footprint while housing powerful components. VESA mounting support (75x75mm and 100x100mm patterns) enables monitor mounting or wall installation. The 135W power adapter (19.5V/6.92A) provides ample power for fully configured systems. Operating temperature range of 0°C to 35°C ensures reliable performance in typical environments.

Technical Specifications

Dimension
124 x 120 x 49.7 mm

CPU
13th Gen Intel Core i3-1315U Processor
6 Cores (2P+4E), 8 Threads, 10MB Cache
Frequency up to 4.5GHz(P Core Turbo), 15W

Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
Intel Iris Xe Graphics, 96EU, 1.25GHz

Audio
Realtek ALC269 HD audio

Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5" slot for HDD/SSD (9.0mm thick; SATA3)

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button

Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased separately.

Support OS
Win11 64 bit
Win10 64 bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

• Processor: Intel Core i3
• Processor Cores: 6
• Memory Type: 2x DDR4
• Max Memory: 64GB
• Storage M.2 Slots: 1
• Storage 2.5 Inch Slots: 1
• VESA: Not Included
