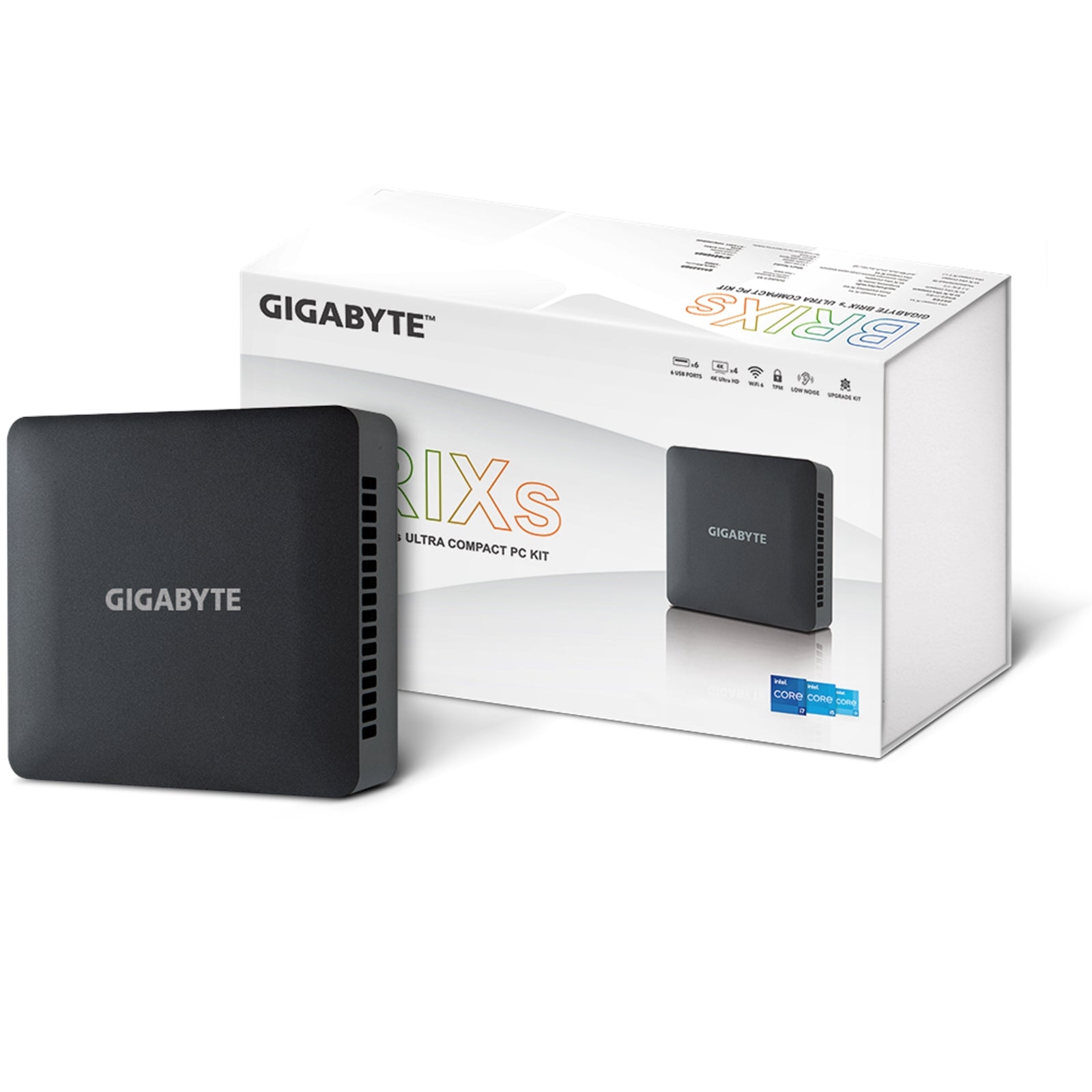

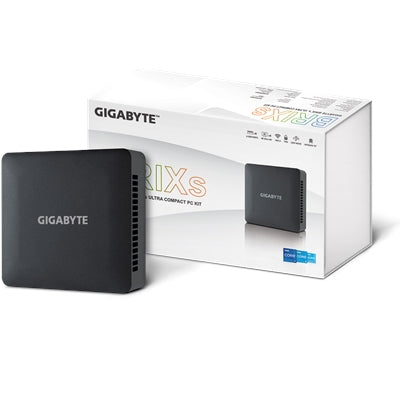

Gigabyte BRIX GB-BRI5H-1335 Barebone Mini PC

The Gigabyte BRIX GB-BRI5H-1335 delivers high-performance computing in a compact 124 x 120 x 49.7mm chassis. Powered by the 13th Gen Intel Core i5-1335U processor with 10 cores (2 P-cores + 8 E-cores), 12 threads, and turbo speeds up to 4.6GHz, this barebone kit provides exceptional multi-tasking capabilities for demanding workloads.

13th Gen Intel Core Performance

The i5-1335U processor features Intel's advanced hybrid architecture with dedicated Performance-cores for intensive tasks and Efficient-cores for seamless multi-tasking. Intel Iris Xe Graphics with 96 execution units at 1.25GHz handles HD video editing, content creation, and casual gaming with ease. The 12MB cache and 15W TDP ensure efficient operation without compromising performance.

Flexible Memory and Storage Configuration

Configure your system with dual SO-DIMM DDR4 slots supporting up to 64GB at 3200MHz. Storage options include one M.2 2280 slot (PCIe Gen4 x4 / SATA3) for NVMe SSDs and one 2.5-inch SATA slot (9.0mm thick) for additional HDD or SSD expansion. This flexibility allows you to build a system tailored to your specific storage and memory requirements.

Advanced Connectivity

Equipped with Intel AX203 Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless connectivity, plus 2.5 GbE LAN (Intel i226V) for high-speed wired networking. Display connectivity includes dual HDMI 2.1 ports with HDCP 2.2 and two USB 3.2 Gen2 Type-C ports with DisplayPort 1.4a alternate mode, each supporting 4K resolution at 60Hz. Connect up to four displays simultaneously for expansive workspace configurations.

Comprehensive I/O Options

Front panel features dual USB 3.2 Gen2 Type-A ports, dual USB 2.0 Type-A ports, and a combination headphone/microphone jack. Rear I/O includes the 2.5GbE LAN port, dual HDMI 2.1 outputs, dual USB-C ports with DP alt mode, Kensington lock slot, and DC power input. The 135W power adapter (19.5V / 6.92A) provides ample power for fully configured systems.

Compact Design with VESA Mounting

The minimalist chassis design features curved lines and layered construction for a modern aesthetic. VESA mounting support (75 x 75mm and 100 x 100mm patterns) allows for monitor or wall mounting to save desk space. Operating temperature range of 0°C to 35°C ensures reliable performance in standard office environments. Compatible with Windows 10 and Windows 11 64-bit operating systems.

Technical Specifications

• Processor: Intel Core i5-1335U (10 Cores, 12 Threads, up to 4.6GHz)
• Memory: 2x DDR4 SO-DIMM slots, 3200MHz, 64GB maximum
• Graphics: Intel Iris Xe Graphics, 96EU, 1.25GHz
• Storage: 1x M.2 2280 (PCIe Gen4 x4), 1x 2.5-inch SATA
• Networking: 2.5GbE LAN, Wi-Fi 6, Bluetooth 5.2
• Video Outputs: 2x HDMI 2.1, 2x USB-C with DP 1.4a (4K@60Hz each)
• Dimensions: 124 x 120 x 49.7mm
• Audio: Realtek ALC269 HD audio codec

Note: This is a barebone kit. Memory, storage, and operating system are not included and must be purchased separately. VESA bracket sold separately.
