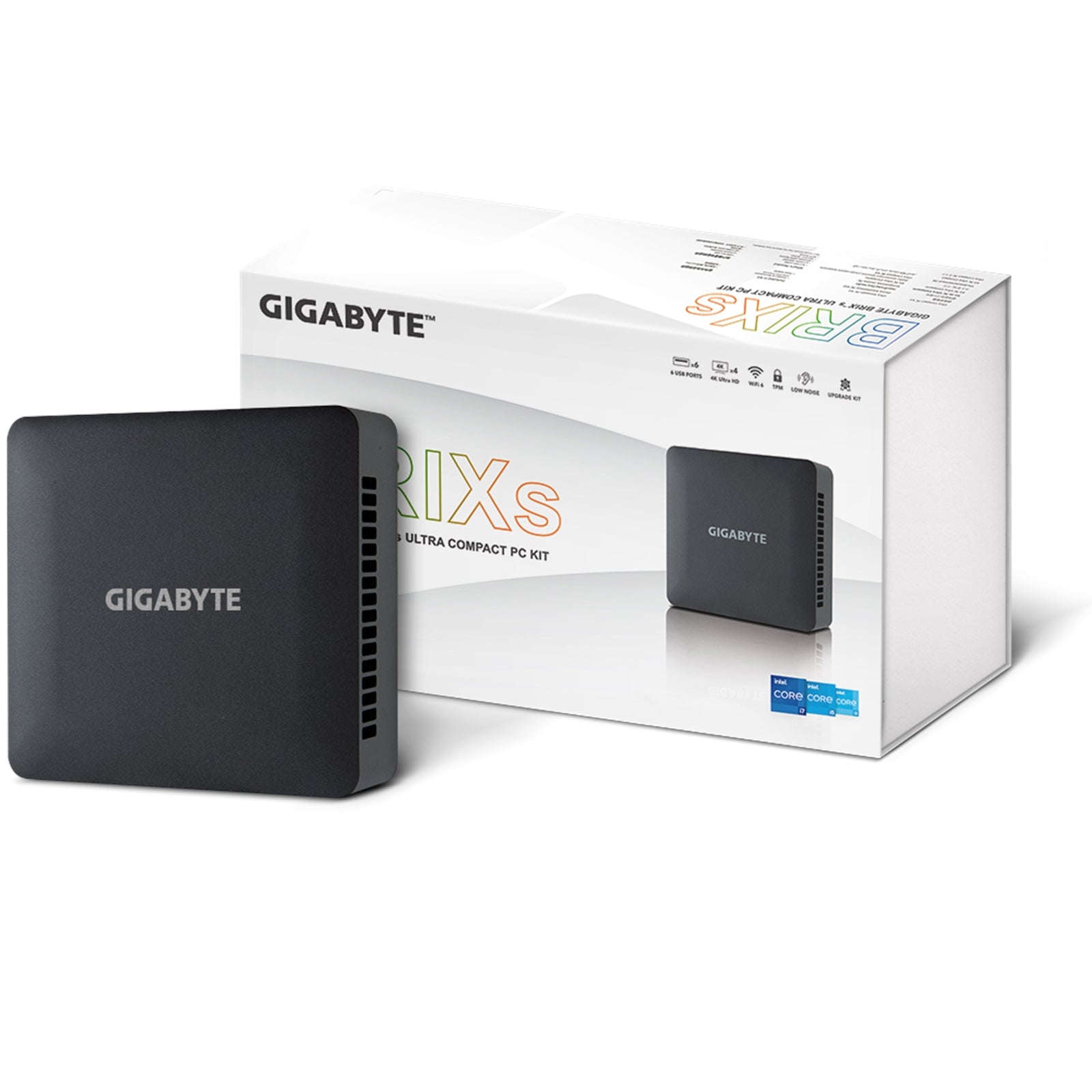

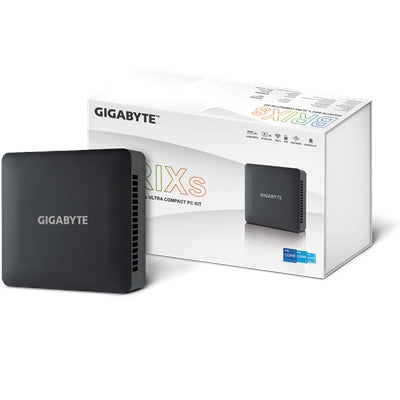

Gigabyte BRIX GB-BRI7H-1355 Barebone Mini PC Kit

The Gigabyte BRIX GB-BRI7H-1355 delivers professional-grade computing performance in an ultra-compact 124 x 120 x 49.7mm chassis. This barebone kit features the 13th Gen Intel Core i7-1355U processor with 10 cores (2 Performance-cores + 8 Efficiency-cores), 12 threads, and turbo speeds up to 5.0GHz, providing the processing power needed for demanding workloads while maintaining a 15W TDP for efficient operation.

High-Performance Computing in Minimal Space

Built around Intel's hybrid architecture, this BRIX system combines powerful P-cores for intensive tasks with efficient E-cores for seamless multitasking. The integrated Intel Iris Xe Graphics with 96 execution units running at 1.3GHz handles graphics processing, while the 12MB cache ensures responsive performance across applications.

Flexible Memory and Storage Configuration

Configure your system with dual SO-DIMM DDR4 slots supporting up to 64GB of DDR4-3200MHz memory through a 128-bit memory controller. Storage options include one M.2 2280 slot supporting PCIe Gen4 x4 or SATA3 SSDs, plus one 2.5-inch SATA3 bay accommodating drives up to 9mm thick, giving you flexibility for both high-speed NVMe and traditional storage solutions.

Quad 4K Display Output Capability

Drive up to four independent 4K displays simultaneously through dual HDMI 2.1 ports and dual USB Type-C ports with DisplayPort 1.4a alternate mode. Each output supports 3840x2160 resolution at 60Hz with HDCP 2.2 and HDR 10, making this system suitable for multi-monitor workstations, digital signage, or media production environments.

Comprehensive Connectivity

Front panel access includes dual USB 3.2 Gen2 Type-A ports, dual USB 2.0 Type-A ports, and a combined headphone/microphone jack. The rear I/O features 2.5 GbE LAN (Intel i226V), dual HDMI 2.1 outputs, dual USB 3.2 Gen2 Type-C ports with DP alt mode, Kensington lock slot, and DC power input. Wireless connectivity comes via Intel AX203 with Wi-Fi 6 (802.11ax) dual-band 2.4/5GHz and Bluetooth 5.2.

VESA-Mountable Design

The chassis supports both 75x75mm and 100x100mm VESA mounting patterns, allowing installation behind monitors or displays to create space-saving workstations or digital signage solutions. The curved, angular design maintains a professional appearance while maximizing thermal efficiency.

Technical Specifications

Processor: 13th Gen Intel Core i7-1355U, 10 Cores (2P+8E), 12 Threads, 12MB Cache, up to 5.0GHz, 15W
Memory: 2x SO-DIMM DDR4-3200MHz, Max 64GB
Graphics: Intel Iris Xe Graphics, 96EU, 1.3GHz
Storage: 1x M.2 2280 (PCIe Gen4 x4/SATA3), 1x 2.5" SATA3 (9mm)
Network: 2.5GbE LAN (Intel i226V), Wi-Fi 6 (Intel AX203), Bluetooth 5.2
Video Outputs: 2x HDMI 2.1, 2x USB-C with DP1.4a
Audio: Realtek ALC269 HD audio
Power: 135W adapter (19.5V/6.92A), AC 100-240V input
Dimensions: 124 x 120 x 49.7mm
Operating Temperature: 0°C to +35°C
Supported OS: Windows 11/10 64-bit

This barebone kit requires separate purchase of memory, storage, and operating system. VESA mounting bracket sold separately.

• Processor: Intel Core i7
• Processor Cores: 10
• Memory Type: 2x DDR4
• Max Memory: 64GB
• Storage M.2 Slots: 1
• Storage 2.5 Inch Slots: 1
• VESA: Not Included
