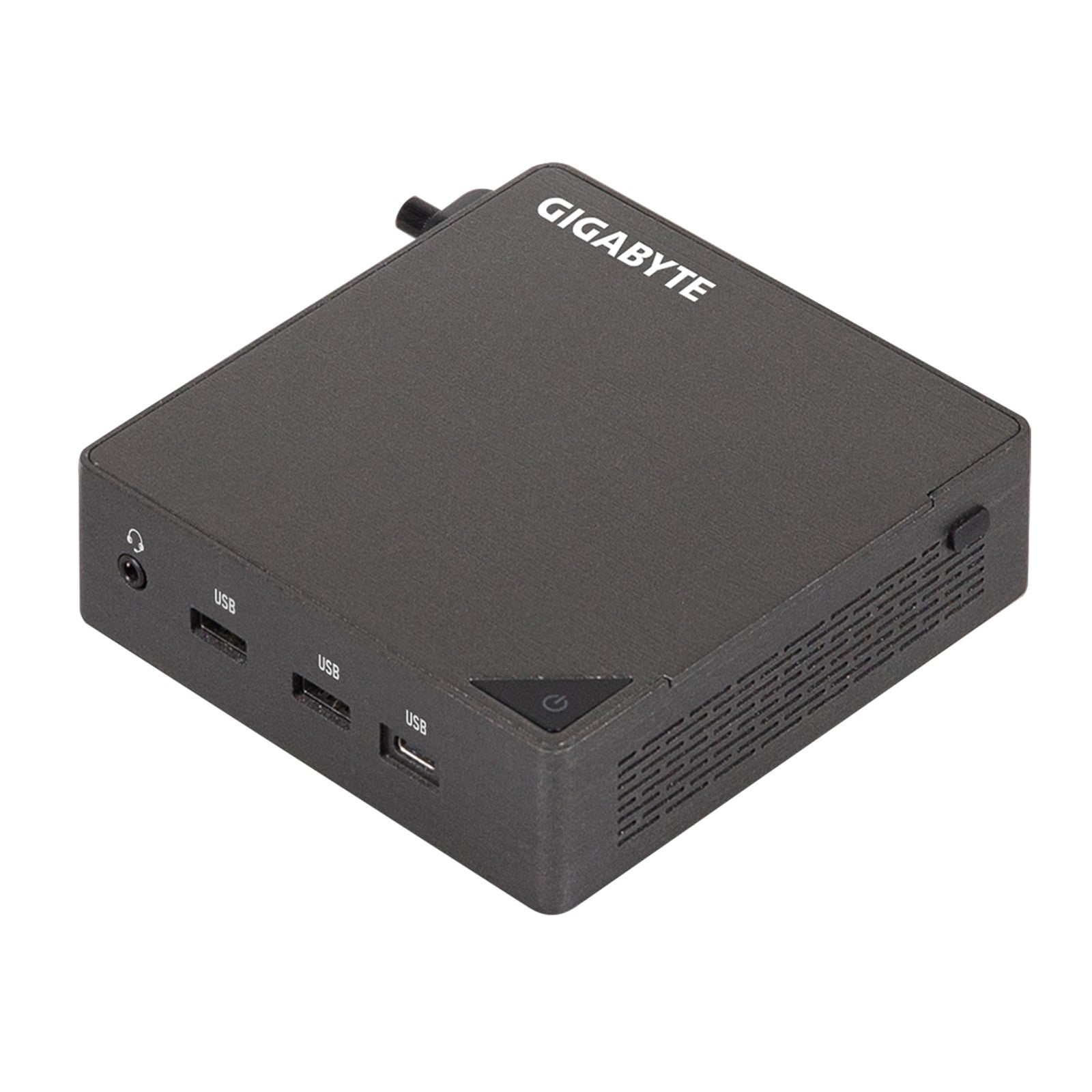

Gigabyte BRIX GB-BRU5-225H Barebone Mini PC

The Gigabyte BRIX GB-BRU5-225H barebone kit delivers professional computing power in an ultra-compact 112.6 x 34.4 x 119.4mm chassis. Built around the Intel Core Ultra 5 225H processor with 14 cores (4P + 8E + 2LPE), this mini PC barebone provides exceptional performance for demanding workloads, AI applications, and intensive multitasking.

Intel Core Ultra 5 225H Performance

The 14-core Intel Core Ultra 5 225H processor operates at 28W and integrates Intel Arc Graphics with 130T GPU, delivering 20% improved graphics performance over previous generations. The built-in Intel AI Boost NPU reaches up to 13 TOPS, contributing to a total system AI performance of 83 TOPS for generative AI tasks and machine learning applications.

Expandable DDR5 Memory Configuration

Configure your system with dual SO-DIMM DDR5 slots supporting speeds up to 5600MHz, or opt for CSO-DIMM DDR5 modules running at 6400MHz. Both configurations support a maximum capacity of 96GB, providing ample memory bandwidth for professional applications and content creation workflows.

Triple M.2 Storage Expansion

The GB-BRU5-225H includes three M.2 slots for maximum storage flexibility: one M.2 2280 slot with PCIe Gen4x4 (Gen5x4 ready design), one M.2 2280 slot supporting both PCIe Gen4x4 and SATA, and one M.2 E Key 2230 slot pre-configured with WiFi 7 RTL8922AE for wireless connectivity and Bluetooth.

Comprehensive Connectivity

Front panel access includes dual USB 3.2 Gen2 Type-A ports, one USB 3.2 Gen2 Type-C with DisplayPort Alt Mode, and a headset jack. The rear I/O provides dual HDMI 2.1 ports supporting 4096x2160 at 60Hz, one USB4 port, USB 3.2 Gen2 Type-C with Power Delivery input, additional USB 3.2 Gen2 Type-A and USB 2.0 ports, plus 2.5GbE LAN powered by Intel I226V controller.

Quad Display Output Capability

Drive up to four displays simultaneously using two HDMI 2.1 ports and two USB Type-C ports with DisplayPort 2.1 Alt Mode support. This configuration is ideal for multi-monitor workstations, digital signage, and professional trading setups.

Space-Efficient Design Benefits

The slim chassis design measures just 34.4mm in height while maintaining full desktop-class performance. VESA mount compatibility (75x75mm and 100x100mm patterns) enables behind-monitor installation or wall mounting for clutter-free deployments. Low power consumption and quiet operation make this barebone kit suitable for home offices, media centers, and professional environments where noise levels matter.

DIMENSIONS
Size
112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size
105 mm x 114.49 mm

PERFORMANCE
CPU
Intel® Core™ Ultra 5 processor 225H, 14C (4P + 8E + 2LPE), 28W

Memory
2 x SO-DIMM DDR5 slots, support up to 5600MHz, Max. 96GB
or
2 x CSO-DIMM DDR5 slots, support up to 6400MHz, Max. 96GB

Graphics
Intel® Arc™ Graphics, 130T GPU
2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC)
2 x USB Type-C ALT (DisplayPort v2.1)
(Intel® Arc™ Graphics requires using 2 x SO-DIMM/CSO-DIMM dual channel memory)

Audio
Realtek ALC245

NETWORKING
LAN
2.5GbE LAN (Intel® I226V)

EXPANSION SLOTS
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4 + SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

I/O PORTS
Front I/O
1 x Headset
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (ALT)

Rear I/O
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type-C (PD IN)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45

Left I/O
1 x Kensington Lock Slot

POWER
Input: AC 100-240V
Output: DC 20V/5A, 100W (Type-C PD)

VESA MOUNT
Supports 75 x 75 and 100 x 100 mm

OPERATING SYSTEM
Windows 11 64-bit

ENVIRONMENT
System Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

NPU
Intel® AI Boost NPU up to 13 TOPs

• Processor: Intel Core Ultra 5
• Processor Cores: 14
• Memory Type: 2x DDR5
• Max Memory: 96GB
• Storage M.2 Slots: 3
• Storage 2.5 Inch Slots: None
• VESA: Not Included
