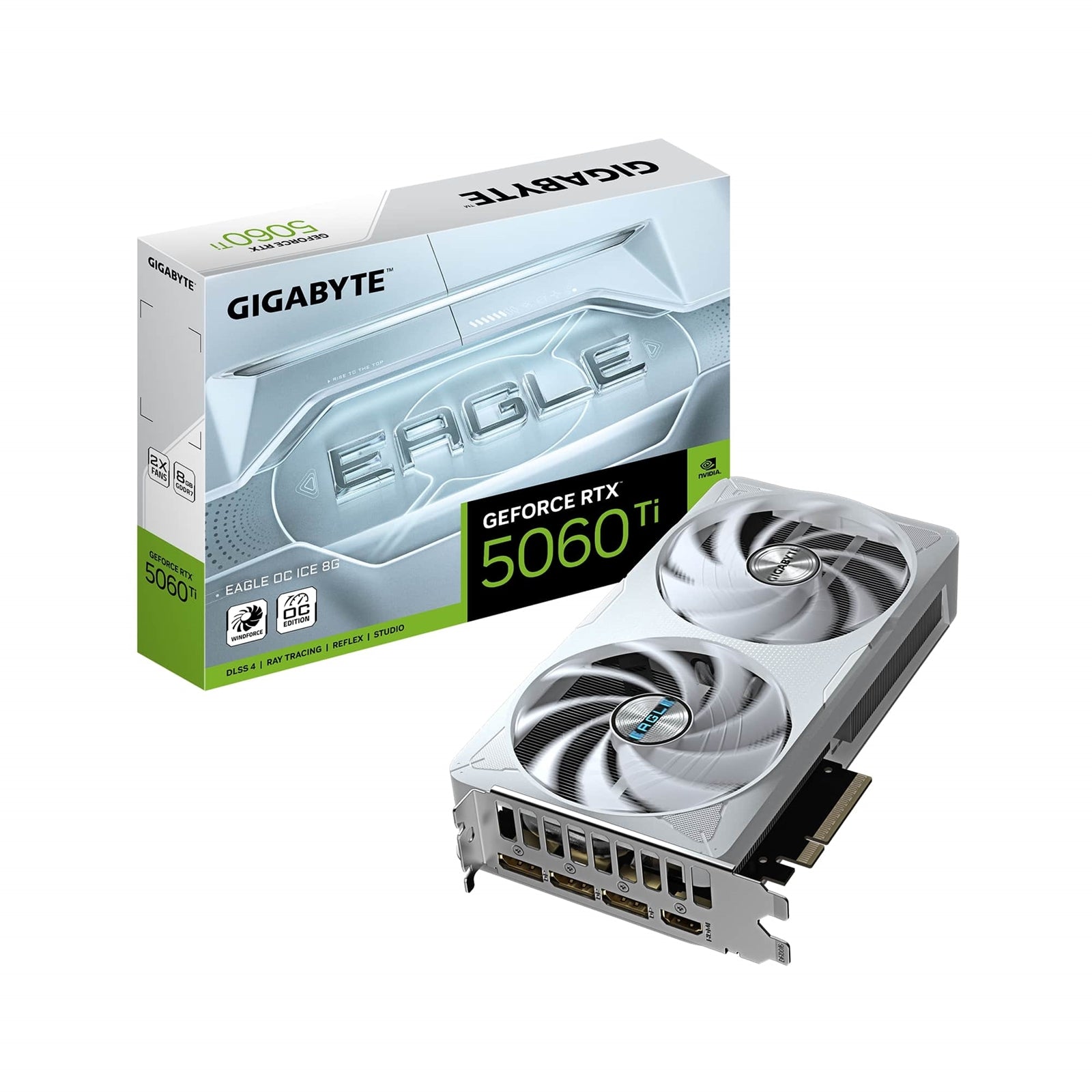

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8G delivers advanced gaming and content creation performance powered by NVIDIA's Blackwell architecture. This graphics card features 8GB of GDDR7 memory on a 128-bit interface, providing the bandwidth needed for modern gaming at high settings.

NVIDIA Blackwell Architecture with DLSS 4

Built on the latest NVIDIA Blackwell architecture, this RTX 5060 Ti supports DLSS 4 technology for enhanced frame rates and image quality. With 4608 CUDA cores and a factory overclocked boost clock of 2617 MHz (45 MHz higher than reference), the EAGLE OC ICE variant offers improved performance out of the box. The 28 Gbps GDDR7 memory ensures smooth gameplay and efficient handling of demanding workloads.

WINDFORCE Cooling Technology

The WINDFORCE cooling system utilizes server-grade thermal conductive gel and Hawk fans with alternate spinning to maintain optimal temperatures. Composite copper heat pipes and a copper plate work together to efficiently dissipate heat from the GPU, while the 3D active fan design adjusts fan speed based on thermal load. This cooling solution keeps the card running quietly during light tasks and effectively cooled during intensive gaming sessions.

Aerospace-Inspired Design

The EAGLE series features a design inspired by aerospace battleships and sci-fi elements. Curved contours create a streamlined appearance, while segmented lines resemble disassembled deck components. The reinforced structure ensures durability, and the compact dimensions (215mm x 122mm x 40mm) make it compatible with most ATX cases.

Display Connectivity and Compatibility

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the card supports up to four displays simultaneously with a maximum digital resolution of 7680x4320. The PCI-E 5.0 interface ensures compatibility with modern motherboards, while a single 8-pin power connector and 650W recommended PSU keep power requirements reasonable.

GIGABYTE Control Center Software

The included GIGABYTE CONTROL CENTER software provides real-time adjustment of clock speeds, voltage, fan curves, and power targets through an intuitive interface. This unified software works across all GIGABYTE supported products for streamlined system management.

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8G

The Ultimate Platform for Gamers and Creators

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
CORE CLOCK - 2617 MHz (Reference card :2572 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: GeForce RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
