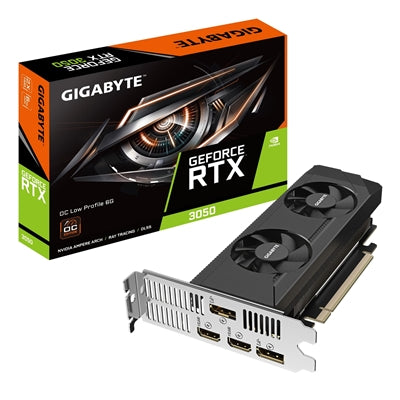

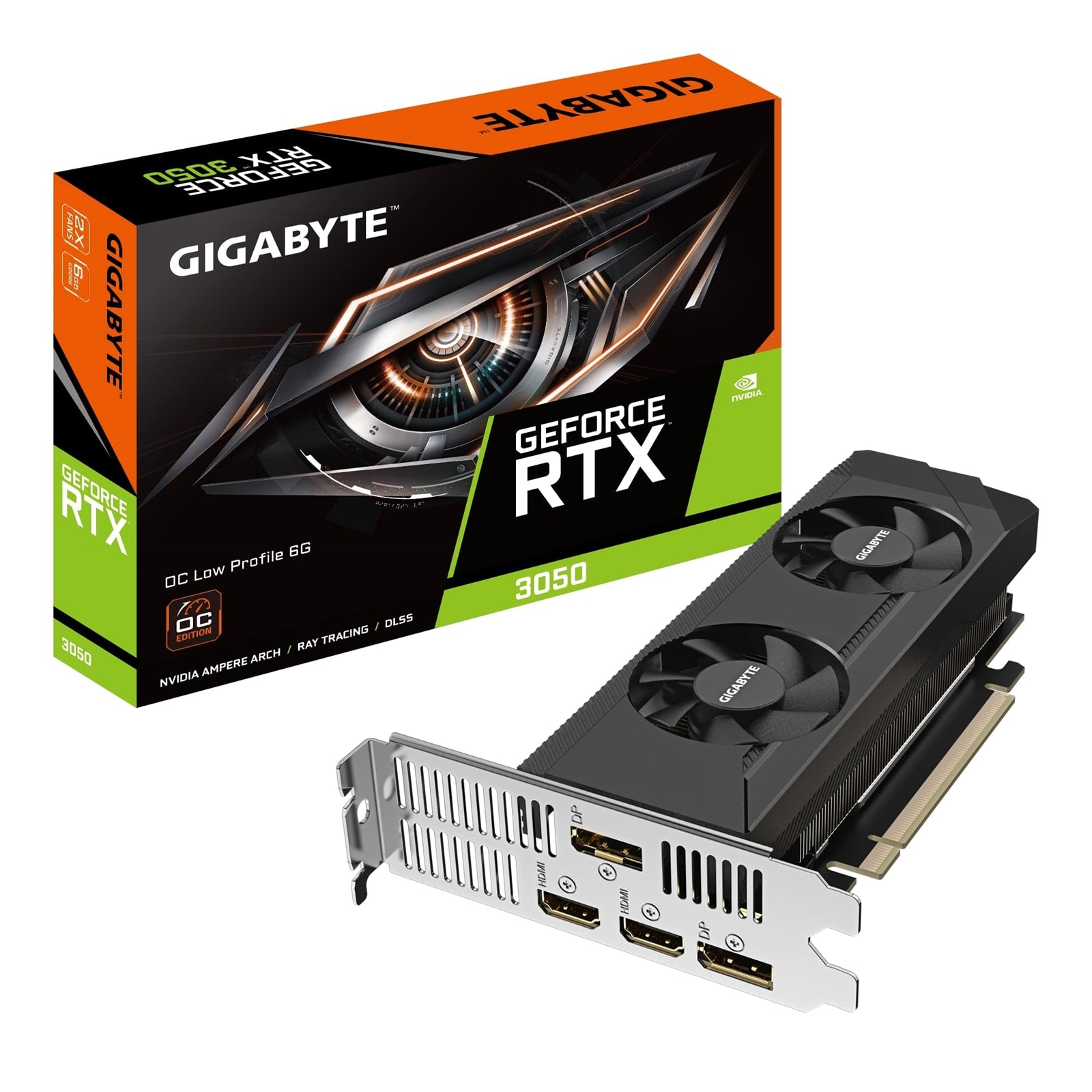

Gigabyte GeForce RTX 3050 Low Profile Graphics Card

The Gigabyte GeForce RTX 3050 OC Low Profile delivers NVIDIA Ampere architecture performance in a compact 181mm design. Built with 6GB GDDR6 memory and 2304 CUDA cores, this graphics card handles modern gaming at 1080p resolution while fitting into small form factor builds where full-size cards won't.

Compact Performance for Small Builds

At 181mm length and 36mm height, this low profile graphics card fits into compact cases and HTPCs without compromise. The included low-profile bracket ensures compatibility with slim chassis designs. Despite its compact size, the dual-fan cooling system with copper heat pipe maintains optimal temperatures during extended gaming sessions.

NVIDIA Ampere Architecture

Powered by NVIDIA's Ampere architecture, the RTX 3050 features 2nd generation RT cores for ray tracing and 3rd generation Tensor cores for AI-enhanced graphics. The 1477MHz core clock (7MHz above reference) and 14000MHz memory clock deliver smooth frame rates in popular titles. DirectX 12 Ultimate and OpenGL 4.6 support ensures compatibility with the latest games.

Versatile Display Connectivity

Connect up to 4 displays simultaneously with 2x DisplayPort 1.4a and 2x HDMI 2.1 outputs. The card supports resolutions up to 7680x4320, making it suitable for multi-monitor setups and high-resolution displays.

Ultra Durable Components

Gigabyte's PCB design incorporates lower RDS(on) MOSFETs for reduced switching resistance, metal chokes that minimize energy loss and EMI interference, and lower ESR solid capacitors for improved conductivity and longevity. Fully automated production eliminates sharp solder protrusions for safer installation.

Gigabyte Control Center Software

Fine-tune performance with Gigabyte Control Center (GCC). Adjust clock speeds, voltage, fan curves, and power targets in real-time to optimize performance or acoustics based on your preferences.

Low Power Requirements

With a recommended 300W PSU and no additional power connectors required, this RTX 3050 integrates easily into existing systems. The PCI-E 4.0 interface ensures maximum bandwidth for data transfer.

Technical Specifications

Graphics Processing: GeForce RTX 3050
Core Clock: 1477 MHz (Reference Card: 1470 MHz)
CUDA Cores: 2304
Memory Clock: 14000 MHz
Memory Size: 6GB
Memory Type: GDDR6
Memory Bus: 96 bit
Card Bus: PCI-E 4.0
Digital Maximum Resolution: 7680 x 4320
Multi-View: 4
Card Size: L=181 W=69 H=36 mm
PCB Form: Low Profile
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 300W
Power Connectors: N/A
Output: DisplayPort 1.4a x 2, HDMI 2.1 x 2
Accessories: Quick Guide, Low Profile Bracket

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX3050
• Form Factor: 2x ATX (Low Profile Option)
• Memory: 6GB
• Fans: 2
• RGB: No
