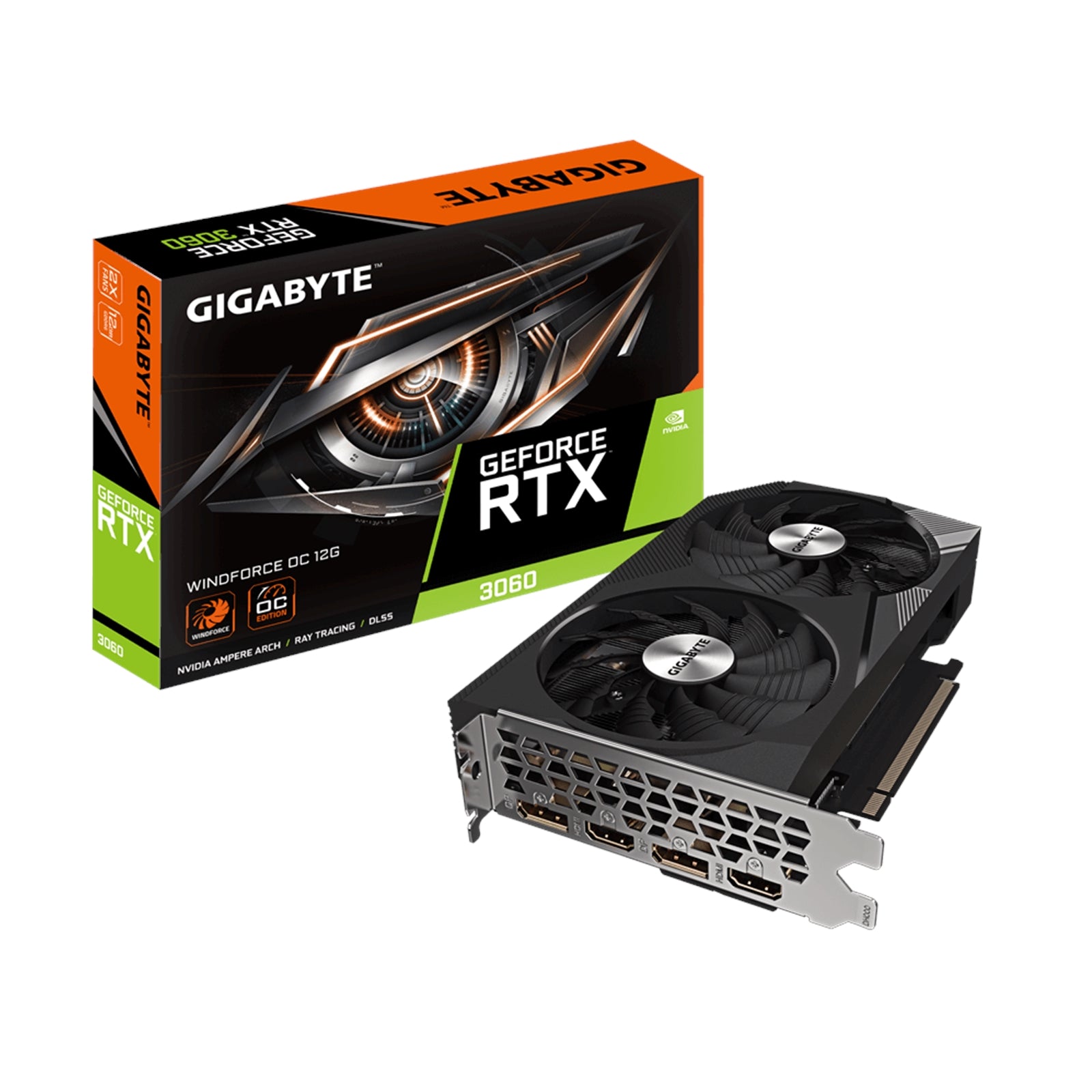

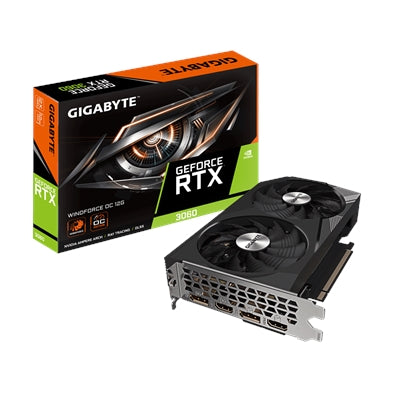

Gigabyte GeForce RTX 3060 WINDFORCE OC 12GB Graphics Card (Rev. 2.0)

The Gigabyte GV-N3060WF2OC-12GD V2 graphics card delivers reliable gaming performance powered by the NVIDIA GeForce RTX 3060 GPU. Built for 1080p and 1440p gaming, this card handles modern titles with real-time ray tracing and AI-enhanced graphics through NVIDIA DLSS technology.

Performance Specifications

This graphics card features 3584 CUDA cores running at a 1792 MHz boost clock, providing a performance increase over the reference 1777 MHz specification. The 12GB GDDR6 memory operates at 15000 MHz across a 192-bit bus, delivering 360 GB/s memory bandwidth for high-resolution textures and demanding game assets.

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling solution utilizes two 100mm fans with unique blade design and direct-contact copper heat pipes. This cooling configuration maintains optimal GPU temperatures during extended gaming sessions while keeping noise levels manageable. The compact dimensions (198mm L x 121mm W x 39mm H) fit most standard ATX cases.

Display Connectivity

Connect up to four displays simultaneously with 2x DisplayPort 1.4a and 2x HDMI 2.1 ports. The card supports resolutions up to 7680x4320, making it compatible with high-refresh-rate 1440p monitors and 4K displays. HDMI 2.1 enables next-generation console-level features for compatible displays.

Build Quality and Power Requirements

Ultra-durable components including solid capacitors and metal-core chokes ensure long-term stability and performance. The card requires a single 8-pin PCIe power connector and a minimum 550W power supply. PCI Express 4.0 x16 interface provides maximum bandwidth for data transfer between CPU and GPU.

NVIDIA Technologies

DLSS (Deep Learning Super Sampling) uses AI to boost frame rates while maintaining image quality. Real-time ray tracing delivers accurate lighting, shadows, and reflections in supported games. DirectX 12 Ultimate and OpenGL 4.6 support ensure compatibility with current and upcoming titles.

Software Control

The AORUS Engine utility provides GPU overclocking, fan curve adjustment, and real-time performance monitoring. RGB Fusion lighting allows customization of the card's lighting effects to match your system build.

Specifications

Graphics Processing
GeForce RTX 3060

Core Clock
1792 MHz (Reference Card: 1777 MHz)

CUDA Cores
3584

Memory Clock
15000 MHz

Memory Size
12 GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth (GB/sec)
360 GB/s

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680x4320

Multi-view
4

Card size
L=198 W=121 H=39 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 pin*1

Output
DisplayPort 1.4a *2
HDMI 2.1 *2

SLI Support
N/A

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX3060
• Form Factor: 2x ATX
• Memory: 12GB
• Fans: 2
• RGB: No
