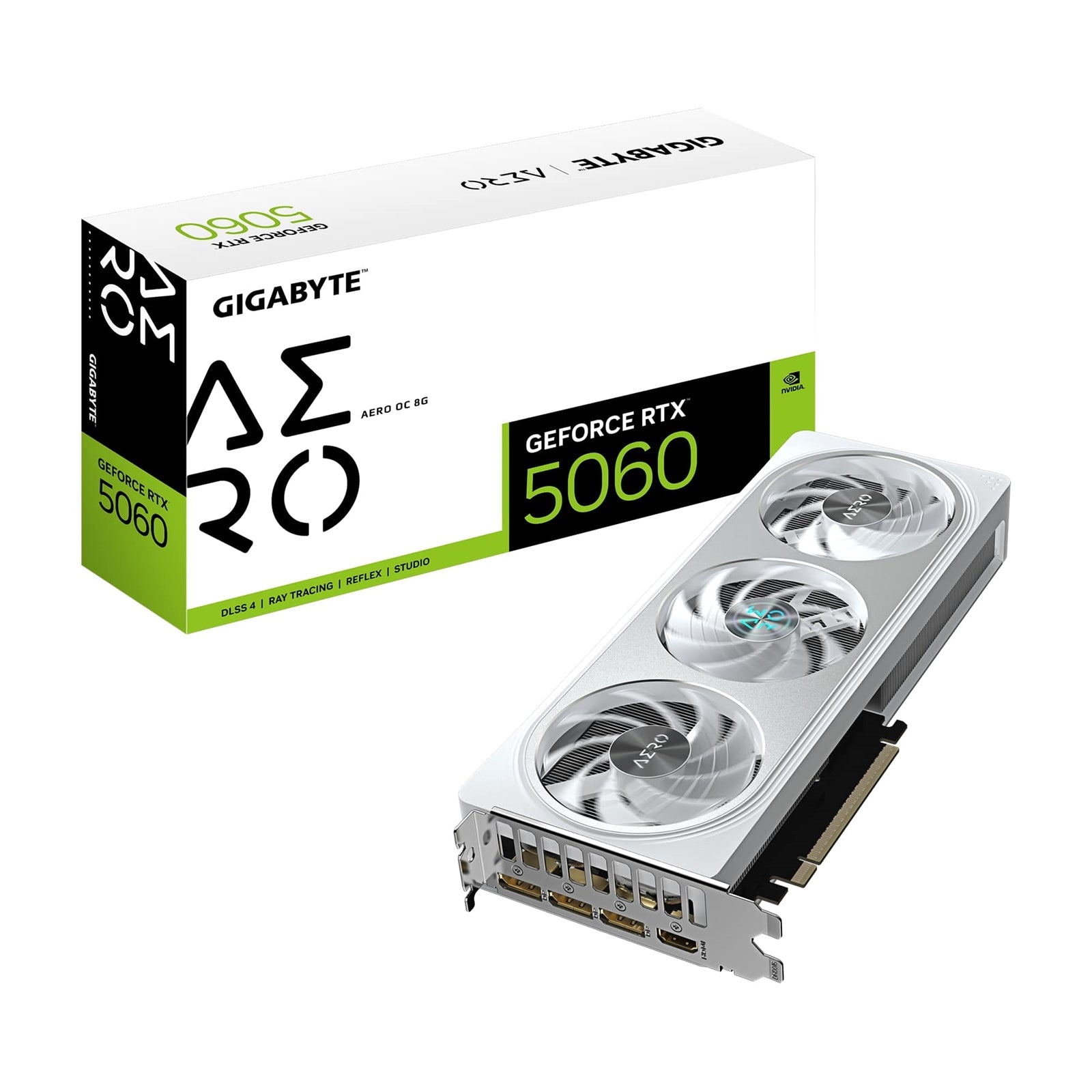

Gigabyte GeForce RTX 5060 Aero OC 8GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5060 Aero OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This factory-overclocked graphics card features a boosted core clock of 2595 MHz, exceeding the reference card specification of 2497 MHz for enhanced frame rates and smoother gameplay.

Advanced GDDR7 Memory Technology

Equipped with 8GB of cutting-edge GDDR7 memory running at 28 Gbps across a 128-bit interface, this graphics card provides the bandwidth needed for modern gaming at high resolutions. The 3840 CUDA cores work in tandem with the high-speed memory to handle demanding workloads, from AAA gaming titles to content creation applications.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling solution features Hawk fan technology designed to maximize airflow while maintaining quiet operation. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU, keeping temperatures under control during extended gaming sessions. The dual BIOS functionality allows you to switch between Performance and Silent modes depending on your preference.

Technical Specifications

Built on the PCI-E 5.0 standard, this graphics card offers maximum bandwidth compatibility with the latest motherboards. The reinforced ATX structure measures 281mm x 117mm x 40mm, providing durability while fitting most mid-tower cases. Power requirements are modest at 500W recommended PSU with a single 8-pin connector.

Display Connectivity

Multiple display outputs include three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays at a maximum digital resolution of 7680x4320. This extensive connectivity makes the card suitable for multi-monitor setups and high-resolution gaming.

Enhanced Features

DirectX 12 API and OpenGL 4.6 support ensure compatibility with the latest games and professional applications. RGB lighting adds customizable aesthetics to your build, while the dual BIOS provides flexibility for performance tuning or silent operation based on your needs.

GeForce RTX 5060 AERO OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK
2595 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2595 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=117 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
500W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 3x ATX
• Memory: 8GB
• Fans: 3
• RGB: No
