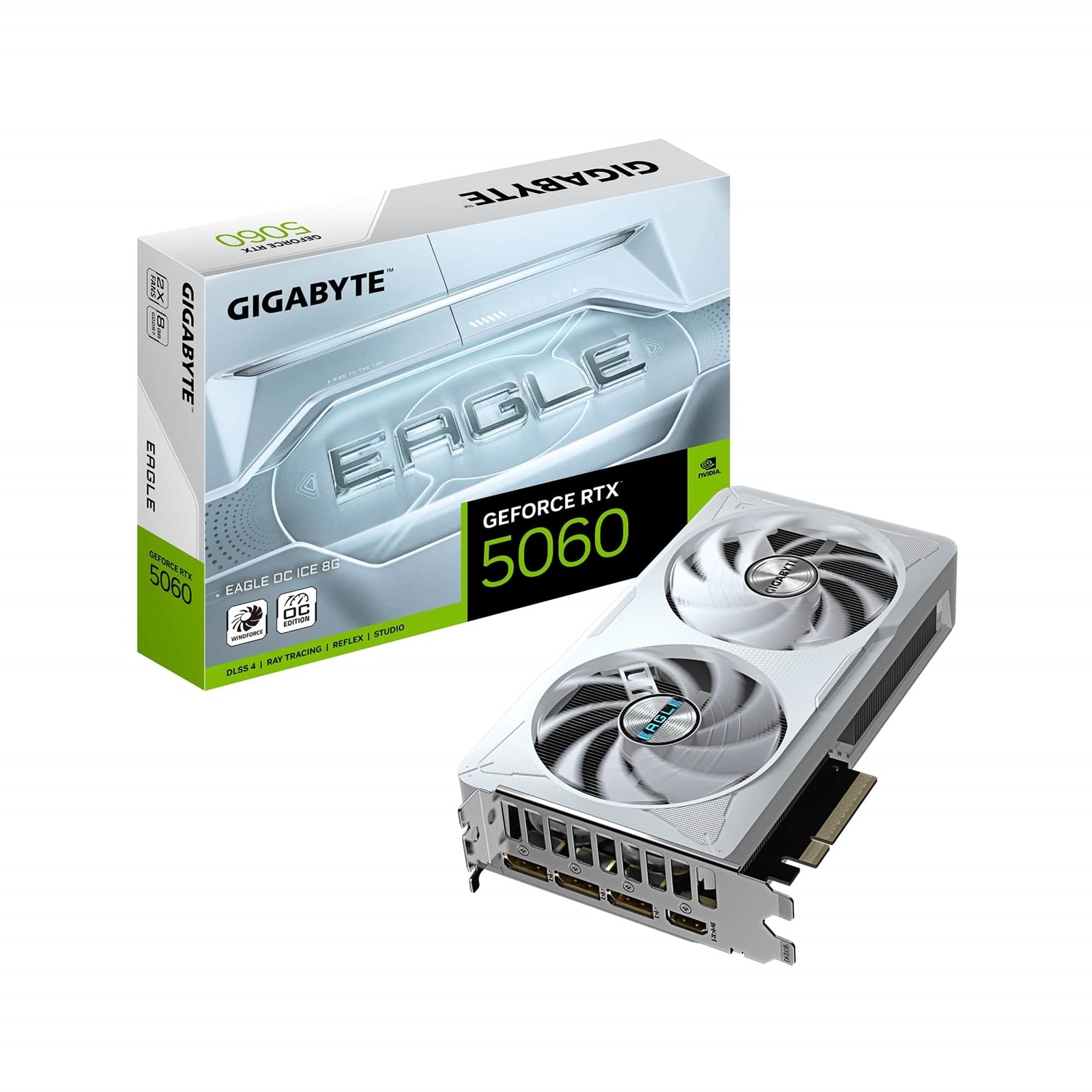

Gigabyte GeForce RTX 5060 EAGLE OC ICE 8GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5060 EAGLE OC ICE delivers reliable 1080p gaming performance with the latest NVIDIA Blackwell architecture. This white-themed graphics card features 8GB of GDDR7 memory and 3840 CUDA cores, providing smooth gameplay for modern titles with DLSS 4 AI-powered frame generation technology.

Performance Specifications

Factory overclocked to 2550 MHz (53MHz above reference), this RTX 5060 variant offers enhanced performance out of the box. The 128-bit memory interface paired with 28 Gbps GDDR7 memory delivers efficient bandwidth for gaming workloads. With support for DirectX 12 API and OpenGL 4.6, the card handles current gaming standards while maintaining compatibility with a modest 450W power supply requirement via a single 8-pin connector.

WINDFORCE Cooling System

The dual HAWK fan design provides effective thermal management in a compact 208mm length. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU die, while the reinforced structure adds durability to the PCB. This cooling solution keeps temperatures controlled during extended gaming sessions without excessive noise.

Display Connectivity

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 EAGLE OC ICE supports up to four simultaneous displays at a maximum resolution of 7680x4320. This connectivity array accommodates multi-monitor setups for productivity or immersive gaming configurations.

Design and Build

The white ICE aesthetic distinguishes this model from standard black graphics cards, making it suitable for builds with light-colored themes. Measuring 208mm x 120mm x 40mm, this 2-slot ATX form factor card fits in most standard PC cases. The PCI-E 5.0 interface ensures compatibility with current motherboards while providing headroom for future bandwidth requirements.

GeForce RTX 5060 EAGLE OC ICE 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2550 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2550 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=208 W=120 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
