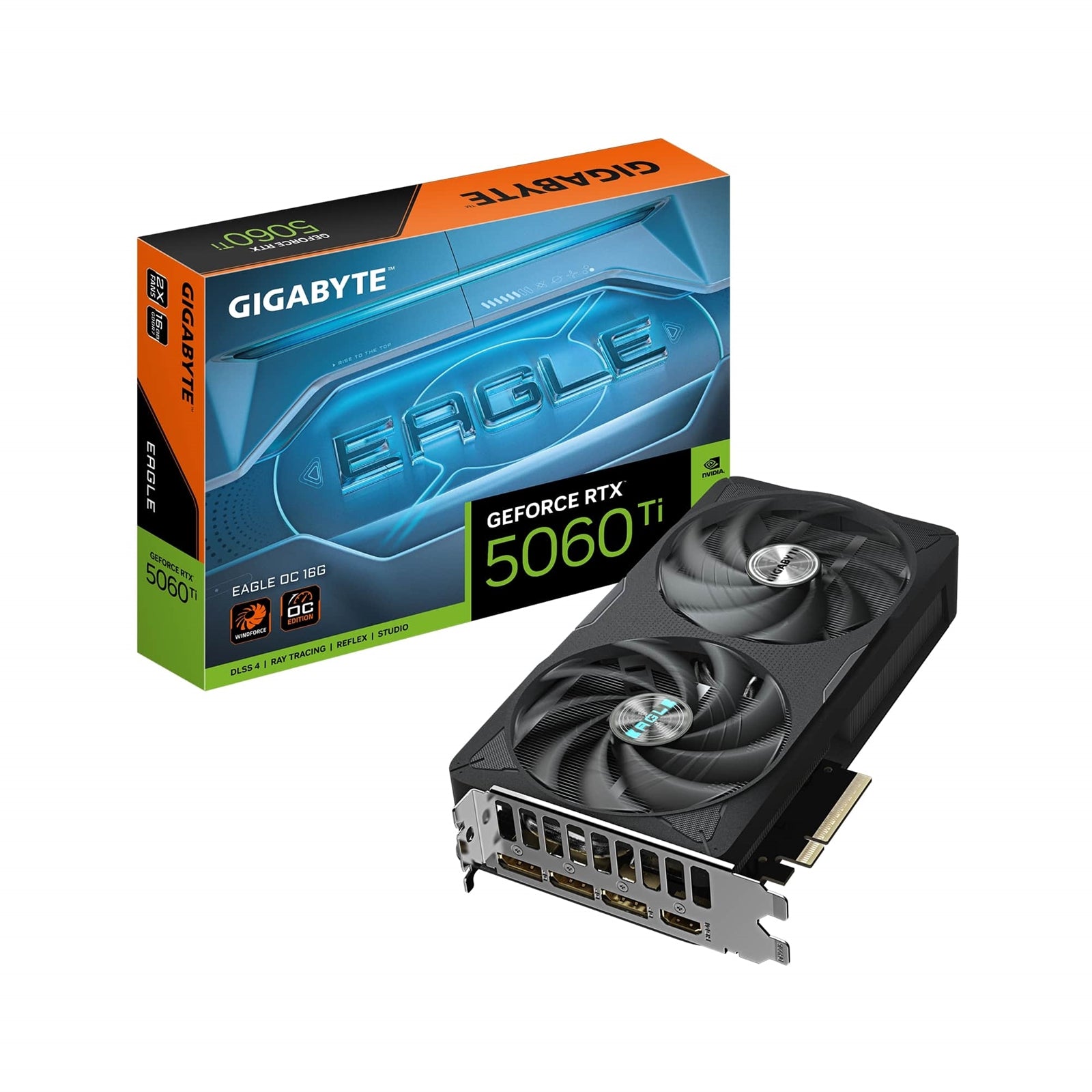

Gigabyte GeForce RTX 5060 Ti Eagle OC 16GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti Eagle OC delivers advanced gaming performance powered by NVIDIA's Blackwell architecture. This graphics card features 16GB of GDDR7 memory on a 128-bit interface, providing the bandwidth needed for modern gaming at high resolutions and demanding workloads.

Performance Specifications

Equipped with 4608 CUDA cores and a factory-overclocked boost clock of 2617 MHz (45 MHz higher than the reference 2572 MHz), this card handles ray tracing and AI-enhanced graphics with efficiency. The 28 Gbps memory clock ensures smooth performance across gaming and content creation applications. DLSS 4 technology provides intelligent frame generation and upscaling for maximum frame rates without compromising visual quality.

WINDFORCE Cooling System

The dual-fan WINDFORCE cooling solution utilizes Hawk fan design for optimized airflow and reduced noise levels. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU to the heatsink. The reinforced structure adds durability while maintaining a compact 2-slot form factor (215mm x 122mm x 40mm), making it compatible with most ATX cases.

Display and Connectivity

Three DisplayPort 2.1b outputs and one HDMI 2.1b port support up to 7680x4320 resolution with multi-view capability for up to four displays simultaneously. DirectX 12 API and OpenGL 4.6 compatibility ensure broad software support across gaming and professional applications.

Power and Installation

The card requires a single 8-pin power connector and a 650W recommended PSU. PCI-E 5.0 interface provides maximum bandwidth for data transfer between the GPU and system. Installation is straightforward with the included quick guide.

GeForce RTX 5060 Ti EAGLE OC 16G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2617 MHz (Reference card :2572 MHz)

Specification

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 2
• RGB: No
