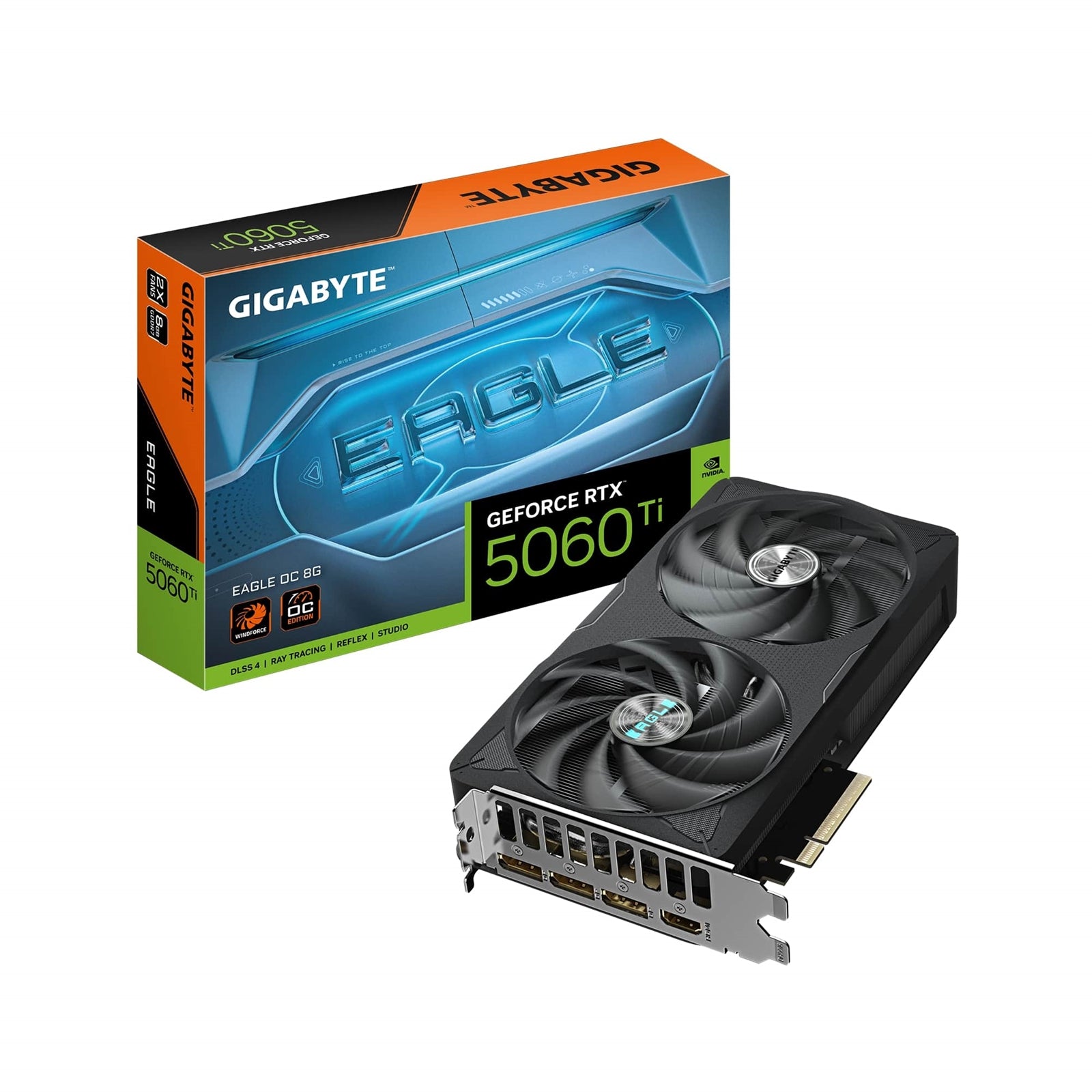

Gigabyte GeForce RTX 5060 Ti EAGLE OC 8GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti EAGLE OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This graphics card features 8GB of high-speed GDDR7 memory across a 128-bit interface, providing the bandwidth needed for modern gaming at high resolutions.

Performance Specifications

Factory overclocked to 2617MHz (45MHz above reference), this RTX 5060 Ti features 4608 CUDA cores for parallel processing power. The 28 Gbps memory clock ensures smooth frame rates in demanding titles. With support for DirectX 12 API and OpenGL 4.6, this card handles the latest gaming technologies. The PCIe 5.0 interface maximizes data transfer speeds with compatible motherboards.

WINDFORCE Cooling System

Gigabyte's WINDFORCE cooling solution uses Hawk fan technology to maintain optimal temperatures during extended gaming sessions. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU to the heatsink. The dual-fan design balances cooling performance with acoustics, while the reinforced structure prevents PCB bending and protects components.

Display Connectivity

Three DisplayPort 2.1b outputs and one HDMI 2.1b port provide flexibility for multi-monitor setups. Supports digital resolutions up to 7680x4320 and can drive up to four displays simultaneously. DisplayPort 2.1b delivers higher bandwidth for next-generation monitors, while HDMI 2.1b ensures compatibility with modern TVs and displays.

Compact Design

Measuring 215mm x 122mm x 40mm, this dual-slot ATX card fits in most standard PC cases. The compact form factor doesn't compromise on cooling efficiency. Requires a single 8-pin power connector and a 650W power supply for stable operation.

GeForce RTX 5060 Ti EAGLE OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2617 MHz (Reference card :2572 MHz)

Specification

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2617 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=215 W=122 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 3
• RGB: No
