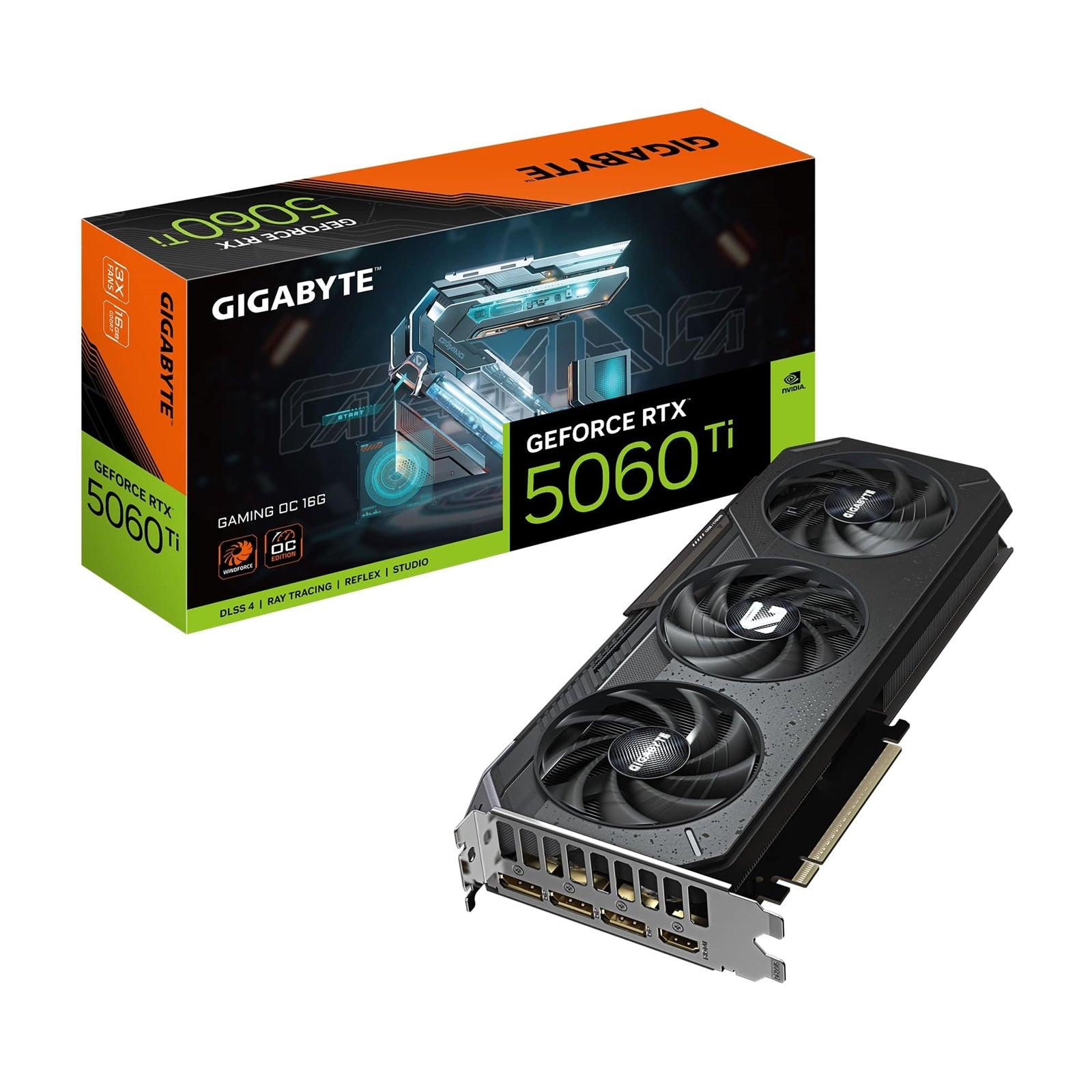

Gigabyte GeForce RTX 5060 Ti Gaming OC 16GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti Gaming OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This factory-overclocked graphics card features a boosted core clock of 2647 MHz, surpassing the reference card's 2572 MHz for enhanced frame rates and smoother gameplay.

Advanced GDDR7 Memory Technology

Equipped with 16GB of cutting-edge GDDR7 memory running at 28 Gbps across a 128-bit interface, this graphics card handles demanding textures and high-resolution gaming with ease. The 4608 CUDA cores provide parallel processing power for modern game engines and creative applications.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling solution features Hawk fan technology designed for optimal airflow and reduced noise levels. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU, maintaining consistent performance during extended gaming sessions. The cooling system keeps temperatures in check while the card delivers maximum performance.

Dual BIOS Flexibility

Switch between Performance and Silent BIOS modes depending on your needs. Performance mode maximizes clock speeds for competitive gaming, while Silent mode reduces fan speeds for quieter operation during less demanding tasks. This dual BIOS feature provides versatility for different usage scenarios.

Reinforced Build Quality

The reinforced structure prevents PCB bending and protects your investment. Measuring 281mm in length, 119mm in width, and 40mm in height, this card fits most standard ATX cases. The single 8-pin power connector requires a recommended 650W PSU for stable operation.

Next-Generation Display Connectivity

Three DisplayPort 2.1b outputs and one HDMI 2.1b port support up to 7680x4320 resolution, enabling multi-monitor setups with up to four displays simultaneously. The PCI-E 5.0 interface ensures maximum bandwidth compatibility with modern motherboards.

Technical Specifications

GeForce RTX 5060 Ti GAMING OC 16G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK
2647 MHz (Reference card :2572 MHz)

Specifications

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2647 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=119 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 3x ATX
• Memory: 16GB
• Fans: 3
• RGB: No
